EI Transformer Hand Insertion Machine

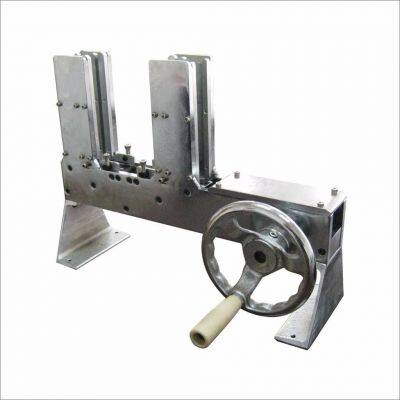

HY-E02 EI Transformer Hand-cranked Silicon Steel Sheet Inserting Machine
The iron core inserting machine can be divided into manual and electric ones, which are suitable for silicon steel inserting of low-frequency transformer
The internal parts of the machine are made of materials imported from Japan. After special treatment, the machine has less wear, low failure, easy operation, long service life and easy replacement
The handwheel is made of specially made rotating parts. The handwheel is light and smooth, with beautiful appearance
It can ensure the requirement of lamination thickness, so that the inserted silicon steel sheet is compact without manual patching.
It can be inserted with 0.30 to 0.5 thick silicon steel sheet and used neat annealed sheet and pin skeleton
The film feeding speed shall not be less than 120 groups/minute (one E piece plus one I piece for one group).
Daily output: 800~1500 EI chips and 2500~3500 E chips.
Refined special steel, wear-resistant and easy to use, low failure! Long life!
Main models: EI-28, EI-35, EI-41, EI-48, EI-57, EI-66, EI-76.2, EI-85.8, EI-96, EI-105, EI-114, EI-133.2, EI-150
In addition, different models of chip inserting machines can be customized according to different needs of customers
Model : HY-E02
Weight:12KG
Machine material: stainless steel
Operation mode: manual operation
Daily output of EI inserts: 800~1500
Model: customizable
Machine size: L450*W180*H350mm
purpose:Suitable for low frequency transformer silicon steel insert
