Factory Direct Sales CNC Gantry Milling Machine XH4022 XH4025 XH5025 XH6025

Product Description

Product Description

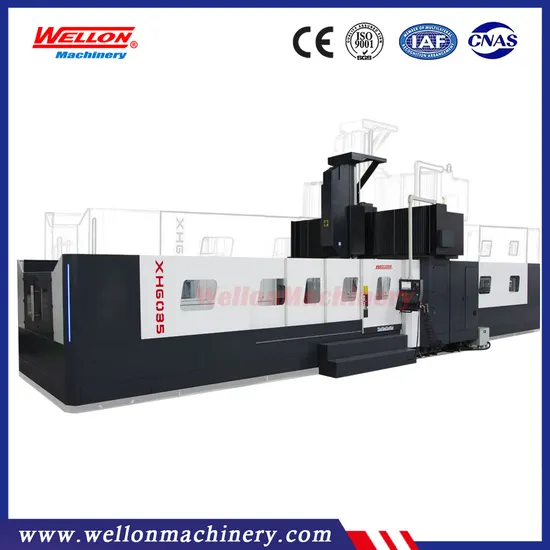

Heavy Duty CNC Double Column Gantry Machining Center

Detailed Photos
Product Parameters

Technical parameter:

Item	Unit	XH4022	XH4025	XH5025	XH6025
X axis travel	mm	4000	4000	5000	6000
Y axis travel	mm	2200	2700	2700	2700
Z axis travel	mm	1000	1000	1000	1000
Spindle nose to worktable	mm	280-1280	280-1280	280-1280	280-1280
Distance between two column	mm	2300	2700	2700	2700
Leadscrew diameter	mm	80/63/50	80/63/50	80/63/50	100/63/50
Linear guideway width	mm	55/55/Rectangle	55/55/Rectangle	55/55/Rectangle	55/55/Rectangle
Worktable Length	mm	4000	4000	5000	6000
Worktable width	mm	2000	2300	2300	2300
T slot qty-width*distance	mm	9-28*200	11-28*200	11-28*200	11-28*200
Max loading capacity	Ton	12	12	15	18
Spindle speed	rpm	6000/belt	6000/belt	6000/belt	6000/belt
Spindle motor power	kw	22	22	22	22
Fast moving speed	m/min	12/12/10	12/12/10	10/10/10	10/10/10
Cutting speed	mm/min	1-8000	1-8000	1-8000	1-8000
Spindle taper		BT50	BT50	BT50	BT50
Feed motor power	kw	8/6/5	8/6/5	8/6/5	8/6/5
X/Y/Z axsis motor torque	Nm	50/40/30	50/40/30	50/40/30	50/40/30
Tool Magazine Capacity	pcs	Disc/24	Disc/24	Disc/24	Disc/24
Positioning accuracy	mm	0.020/0.020/0.018	0.020/0.020/0.018	0.025/0.020/0.018	0.025/0.020/0.018
Repeat accuracy	mm	0.012/0.012/0.012	0.012/0.012/0.012	0.015/0.012/0.012	0.015/0.012/0.012
Length	mm	10200	10200	12500	14500
Width	mm	5000	5500	5500	5500
Height	mm	5300	5300	5800	6000
Weight	kg	350000	360000	42000	53000

Standard accessories:

Mitsubishi M80A controller

Spindle speed 6000rpm belt type

24 tools disc type

Screw type chip conveyor & chip bucket *2

Chain type chip conveyor & chip bucket *1

Nitrogen balance cylinder

Air conditioner in cabinet

Air gun+Water gun

Automatic lubricating system

2-Axis linear guideway from Taiwan Hiwin

Ball leadscrew from Taiwan Hiwin

Levelling pad,nut and bolts

Tools and tool box

Optional accessories:

Spindle oil cooler

CTS 20bar

CTS 30bar

Reneshaw tool probe TS27R

Reneshaw workpiece measurement device OMP60

Gear head

Manual angle head

Auto angle head

Chain type ATC 32 tools

Chain type ATC 40 tools

HEIDENHAIN scales/1m

4TH Axis rotary table 255mm+tail stock+hydraulic station

5TH Axis rotary table 255mm+hydraulic station

Company information

Packaging & Shipping

FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Double Column
Machining Center,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.

---
