US$450.00-4,000.00
|
1 Set
(MOQ)
|
Basic Info.
Performance
Precision Filter
Certification
CE, GS, ISO9001
Product Name
Plate Filter Pressure Machine
Medium Material
SUS304/316L
Filter Precision
0.01um-200um, Customized
Surface Treatment
Mirror Polishing/Sandblasting
Solution Plan
Drawing+QC+Shipping+Service
Design Flow
0.8-18t/H, Customized
Transport Package
Exporting Wooden Case
Production Capacity
500sets/Month
Product Description
Product Description

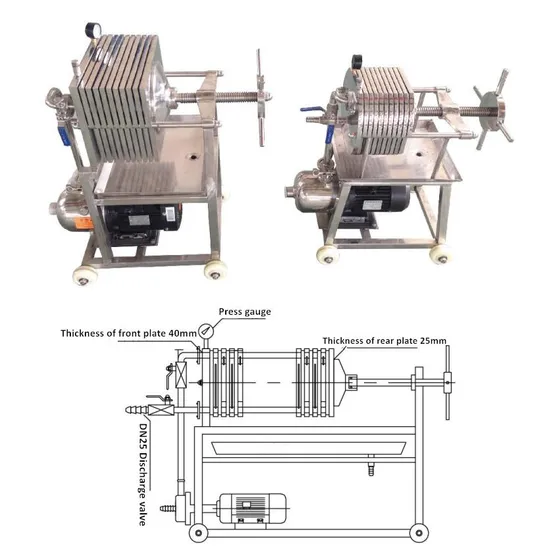

Work Principle:
Suspensions will be put into the hermetic straining chamber by pump, at the function of the pressure, the suspension will flow through the filter layer, filter membrane and other filter materials, flow out through the filter membrane then, the filter residue will be left and become filter cake in the sheet frame, so purpose for the solid-liquid separation will be come true. Product Features
- Made of SS 304 or SS 316L, corrosion-resistant, long life span resistance, and easy operation
- Use screw thread structure. Can change filtering media (uses filter membrane can remove the bacteria) according
to customer material and technical requirements (primary filtration / medial fine filtration/ fine filtration)
- Works under pressure without leakage and filtrates cleanly
- Can be used as multilevel filtering devices: first-level filtering media, second-level fine media, improve the filtering
effect and efficiency
- All seals are made of silica rubber, which can endure high temperatures and no toxicity, no leakage
Product Parameters
Model/Dimension | Filter Plate Quantity | Filter area | Filter Plate Size | Filter Member Pore Size | Pressure | Flow(T/H) | Pump Power | Size(mm) | Inlet | Outlet |
CR100-10 | 10 | 0.078m2 | Φ100 | 0.8um | 0.15Mpa | 0.8 | 0.55KW | 600×300×600 | Φ15mm | Φ15mm |
CR100-10 | 10 | 0.170m2 | Φ150 | 0.8um | 0.15Mpa | 1.5 | 0.55KW | 650×380×650 | Φ20mm | Φ15mm |
CR100-10 | 10 | 0.34m2 | Φ200 | 0.8um | 0.15Mpa | 2 | 0.55KW | 650×400×700 | Φ20mm | Φ15mm |
CR100-10 | 10 | 0.700m2 | Φ300 | 0.8um | 0.2Mpa | 4 | 1.10KW | 700×500×800 | Φ25mm | Φ20mm |
CR100-10 | 20 | 1.4m2 | Φ300 | 0.8um | 0.2Mpa | 8 | 1.10KW | 800×500×800 | Φ38mm | Φ25mm |
CR100-10 | 30 | 2.1m2 | Φ400 | 0.8um | 0.2Mpa | 10 | 1.10KW | 900×500×800 | Φ38mm | Φ25mm |
CR100-10 | 10 | 1.250m2 | Φ400 | 0.8um | 0.2Mpa | 6 | 1.10KW | 900×600×1000 | Φ38mm | Φ25mm |
CR100-10 | 16 | 2m2 | Φ400 | 0.8um | 0.2Mpa | 9 | 1.50KW | 1000×600×1000 | Φ38mm | Φ25mm |
CR100-10 | 20 | 2.5m2 | Φ400 | 0.8um | 0.2Mpa | 10 | 1.50KW | 1100×600×1000 | Φ38mm | Φ25mm |
CR100-10 | 24 | 3m2 | Φ400 | 0.8um | 0.3Mpa | 12 | 2.20KW | 1200×600×1000 | Φ38mm | Φ25mm |
CR100-10 | 30 | 3.8m2 | Φ400 | 0.8um | 0.3Mpa | 16 | 2.20KW | 1300×600×1000 | Φ45mm | Φ25mm |
CR100-10 | 32 | 4m2 | Φ400 | 0.8um | 0.3Mpa | 18 | 2.20KW | 1320×600×10000 | Φ45mm | Φ25mm |
BAS200-10 | 10 | 0.4m2 | 200×200 | 0.8um | 0.15Mpa | 3 | 1.10KW | 650×380×650 | Φ15mm | Φ15mm |
BAS300-10 | 10 | 0.9m2 | 300×300 | 0.8um | 0.15Mpa | 6 | 1.10KW | 700×500×800 | Φ20mm | Φ15mm |
BAS400-10 | 10 | 2m2 | 400×400 | 0.8um | 0.15Mpa | 10 | 1.50KW | 900×600×1000 | Φ25mm | Φ15mm |
BAS400-20 | 20 | 3m2 | 400×400 | 0.8um | 0.15Mpa | 12 | 2.20KW | 1100×600×1000 | Φ25mm | Φ20mm |
BAS400-26 | 26 | 4m2 | 400×400 | 0.8um | 0.2Mpa | 15 | 2.20KW | 1150×600×1000 | Φ38mm | Φ25mm |
BAS400-32 | 32 | 5m2 | 400×400 | 0.8um | 0.2Mpa | 18 | 2.20KW | 1200×600×1000 | Φ38mm | Φ25mm |
BAS400-38 | 38 | 6m2 | 400×400 | 0.8um | 0.3Mpa | 21 | 2.20KW | 1300×600×1000 | Φ38mm | Φ25mm |
BAS400-44 | 44 | 7m2 | 400×400 | 0.8um | 0.3Mpa | 24 | 3.00KW | 1360×600×1000 | Φ38mm | Φ25mm |
Product Application
Food and beverage industry: beer, wine, wine, sake, liquor, wine, fruit juice, bottled water, tea drinks, soy milk, syrup, dairy products, food additives, water filtration to clarify the process and CIP. Petrochemical industry: all kinds of lubricants and oil, glue, chemical fiber manufacturing process of various solution was filtered. Oil and gas industry: amine desulfurization, dehydration flux filter, oil field water, completion fluid filtration. Car paint, painting industry: paint, electrophoretic paint, pre-treatment fluid, paint and paint raw materials and solvent filtration Textile/printing and dyeing/paper making industry: spinning liquid, dyes, flux, water, additives, adhesives filter. Edible oils and soap industry: polishing purification of edible oil, soap raw materials and water filtration. Pharmaceutical industry: a variety of pharmaceutical intermediates, pharmaceutical raw materials, solvent filtration. The electronic and electroplating industry: a variety of plating solution and water filtration. Machining industry: a variety of cutting fluid, coolant and cleaning liquid filtration.
Etc...
Certifications
Packaging & Shipping
Company Profile
FAQ
Q: Are you manufacturer? |
A: Yes, we are a manufacturer with over 15 years of history, address is located in Fengxian District, Shanghai. |
Q: Can you provide sample? Free or chargeable? |
A: Yes, we can provide free sample for filter elements, for filter housing need chargeable. |
Q: Dose the product support customization? |
A: We have a professional team of engineers, can provide customized solution plan according to customers need. |
Q: What is the payment terms? |
A: Usually we support the T/T. |
Q: How to choose the shipping way? |
A: We cooperate with professional logistics companies, and customer also can choose own freight forwarder. |
>>
