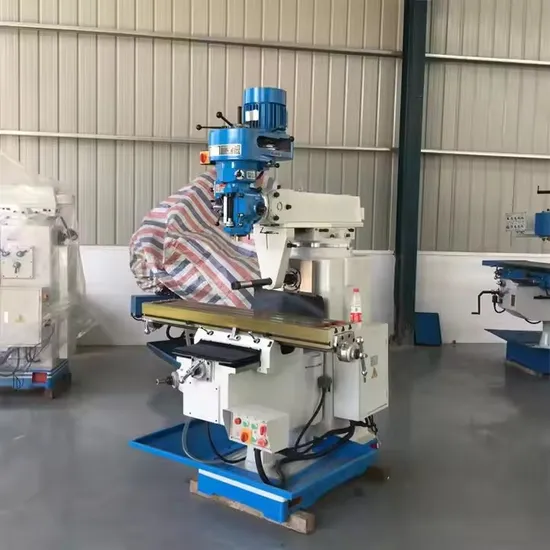

New Universal Vertical Horizontal Knee Type Milling Machine X6336A

US$15,000.00
1-4 Pieces
US$12,000.00
5+ Pieces

Basic Info.

Model NO.
X6336A
Type
Knee-and-Column Milling Machine
Controlling Mode
Servo Motor Control
Automatic Grade
Semiautomatic
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
Milling Machine for Metal
Model
X6336A
Control
One Servo Motor Control Three Axes
Milling Head
Taiwan #5 Belt Drive Milling Head
Max.Verticalmilling Diameter
25mm
Max. Drilling Diameter
10mm
Delivery Time
3 Months
Warranty Time
12 Months
Table Size
1650X360mm
Max. Travel of Table(X/Y)
1300/300mm
Transport Package
Wooden Case
Specification
X6336
Trademark
BETA
Origin
Shandong, China
Production Capacity
100 Sets Per Month

Product Description

Knee-Type Unisersal Milling Machine
Model X6336A

Standard Accessories:
Work light,
cool down,
Emergency stop,
CE electrical,
new control panel,
one servo motor control three axes,
Taiwan #5 belt drive milling head (10 steps),
self-lubrication.

Model X6336
Max. drilling diameter Φ10mm (steel)
Max.vertical milling diameter Φ25mm
Spindle taper 7:24 ISO40( vertical spindle)
7:24 ISO50(horizontal spindle)
Spindle speed range 70~3620 r.p.m. ( vertical spindle)
58~1800 r.p.m.(horizontal spindle)
Spindle speed steps 10 steps ( vertical spindle)
12 steps (horizontal spindle)
Vertical spindle sleeve travel 150mm
Rotary angle of vertical milling head. ±45°
Table size 1650 mm x 360 mm
Max. travel of table(longitudinal/cross) 1300 mm /300 mm
T-slot (number-width-distance) 3/14mm/95mm
Distance between vertical spindle axis and guideway surface of column 160mm-660mm
Distance between horizontal spindle axis and table surface. 0-420mm
Table feed range X/Y 25-800mm/min, Z 8-267mm/min
Rapid feed(X/Y/Z) 1000/1000/335mm/min
Main motor power(Ver./ Hor.) 3.7KW / 4KW
Feed servo motor 2.36KW 15N/m
Power of coolant pump 90W
Overall dimension (L×W×H) 2550*2070*2650mm
Net weight 2800 kg
Packing size (L×W×H) 2070*2280*2560mm
Gross weight 3100 kg
