Flat Plate Solar Collector for Solar Water Heater System

US$99.90 1 Piece (MOQ)

Basic Info.

Model NO.
EN2.0-1000
Max. Capacity
>200L
Structure
Separate Type
Pressure
Pressurized
Interior Material
Stainless Steel
Collector Components
Flat-plate
Composition
Collector
Certification
CE, ISO9001, CCC, RoHS, CB, SASO
Transport Package
Wooden Tray
Specification
SET
Trademark
EN2.0-1000
Origin
Zhejiang, China
HS Code
85414300
Production Capacity
216, 000pieces/Years

Product Description

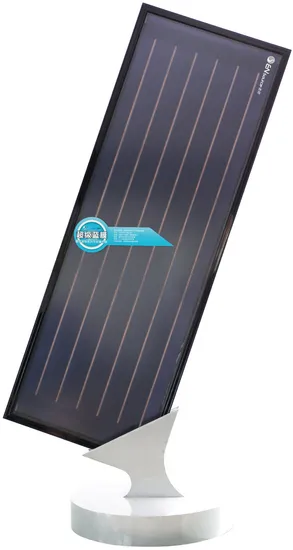

Flat Plate Solar Collector for Solar Water Heater System
our company is a manufacturer that specialized in solar system for 27 years with daily output more than 2000 systems/ 8 hours. We are equipped with imported automatic machinery factory and 6 production bases in China, which can make sure the stable quantity and quality supply. Besides, we have got various certificate to ensure superior quality, such as CE, CCC, SABS, SRCC, Solar Keymark and so on and our products are exported to all over the world. We have imported Germany production line and professional technical person to monitor products production all the time, and each of flat plate collector have finished pressure testing. Then about packing, we use the combination of machine and manual packaging to ensure the tightness of the packing. Not only have each of flat plate collector dust film cover, but also have thick cardboard to secure the four corners to avoid damaging the product. All products are stored in huge warehouse as well as having a showroom to exhibit some samples.
Sangle solar as a leading company in Solar Industry,established in 1987. With the advanced machines and technologies (imported from Germany). Till now, Sangle solar has 6 production bases in China. We have an experienced engineer's team, we not only provide solar system, but also provide efficient and cost effective solar solutions of all climates.
1. Flat Plate Solar Collector Features:The split flat plate solar water heater composes of flat plate solar collector, storage water tank, workstation system and interconnecting pieces.
1) Copper core and pipes in flat plate as heat exchanger, with a quick startup and super efficiency.
2) High-tech methods of coating to meet your upper needs
3) Ultrasonic technology ensures seamless jointing of copper core and pipes
4) Modularized collector, arbitrary combination with architectural structure, adaptable to either slope or flat roof, little maintenance needed
2. Technical Specification:
Description Flat Plate
Dimension L*W*H 2000 * 1000 * 80mm
Gross Area 2.0m²
Absorber Area 1.87 m²
Net Weight 31Kg
Max. Pressure 1.5Mpa
Max. Working Pressure 1.0Mpa
Connector Type Straight Pipe without Screw
Absorber Materials Copper Tube & Aluminum Plate
Surface Teatment Blue Coating
Construction Type Fin & Tubes ( Ultrasonic Welding)
Absorptivity / Emissivity 95%±1%/5%±2%
Riser Tube Size / Material φ10*0.5 / TP Copper
Header Tube Size / Material φ22*0.6 / TP Copper
Thermal Insulation Material / Thickness Fiber Glass Cotton (black backing) , with aluminum foil
Frame Aluminum Alloy
Bottom cover Aluminum Plate
Transparent Cover Low-iron Tempered Glass

FAQ Q: What is your Delivery Time? A: LCL order/Sample order:10 days
Full container order:15 days Q: What is your Warranty Time? A: 3 years. Q: Can you accept OEM? A: Of course! Q: What is your Payment Term? A: We accept T/T or L/C at sight,Western Union,MoneyGram,Paypal. Q: What is your MOQ? A: 1 sets. Q: What is your Packing? A: Carton container. Q: What is your FOB Port? A: We accept FOB SHANGHAI etc. Q: What is your Monthly Production Capacity? A: 5000 Pieces. Q: What is your Shipping Term? A: By Sea/Air
