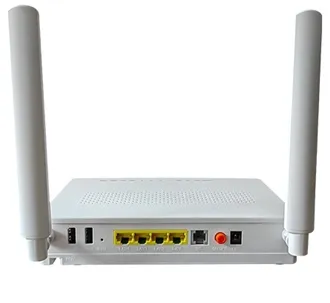

1ge+3fe+VoIP+ (5G) WiFi Xpon ONU WiFi (2.4G/5.8G) Dual-Frequency ONU Xpon Gpon Epon

Product Description

Product Description
1.1 Product DescriptionThe 1GE+3FE+VOIP+WIFI(2.4g/5.8G) dual-frequency ONT is one of the XPON optical network unit design to meet the requirement of the broadband access network to deliver triple-play services to the subscriber in FTTH, the ONT incorporates interoperability, key customers' specific requirements and cost-efficiency,supports the full of services including voice ,video, and high speed internet access. have a high reliability and provide quality of service guarantee, easy management, flexible expansion and networking. It's fully meet the ITU-T technical standards and have good compatibility with third party manufacturers OLT.

Our Advantages
1.2 Main Features· Supports 802.11ac, Compatible with 802.11 b/g/n/ac products.
· Dual band - for combined wireless speeds of up to 1200bps at 2.4GHz and 5.8GHz band concurrently.
· Support downstream 2.5Gbps and upstream to 1.25Gbps with transmission distance to 20Km.
· Fiber access and gigabit port provide incredibly fast transfer speeds.
· Supports OMCI (ONT Management Control Interface) remote management.
· TDM inner transmission, support Native TDM type and CES over GEM.
Detailed Photos
1.3 Data ServiceThe ONT is delivered with 1*1000,3*100 Base-T interface, supporting:
· Auto-negotiation and MDI/MDIX auto-sensing
· Built-in layer-2 switch
·Advanced data features such as VLAN tag manipulation, classification, and filtering
· Built-in layer-3 routing and residential gateway
Product Parameters
1.4 Product Specification

Item	1GE+3FE+VOIP+5GWIFI
PON interface	1×G/EPON port Receiving sensitivity: ≤ -28dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM
Wavelength	TX1310nm,RX1490nm
Optical interface	SC/PC connector
LAN interface	1*1000Mbps , 3*100Mbps
Port	USB 2.0 ports and 1×POTS RJ11 connector
VOIP Standards	SIP (RFC3261), ITU-T G.729/G.722/G.711a/G.711
WiFi interface	IEEE802.11b/g/n/ac 2.4 GHz / 5GHZ IEEE 802.11b: 1,2,5.5,11Mbps IEEE 802.11g: 6,9,12,18,24,36,48,54Mbps IEEE 802.11n: up to 200 Mbps 802.11ac External Antenna
Wireless Security	WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption
Power supply	DC12V 1.5A
Dimensions (L* W* H)	210mm×168mm×42mm(L×W×H)
Operating condition	Temperature: -5ºC~45ºC Humidity: 10%~90%(non-condensing)
Storing condition	Temperature: -30ºC~+60ºC Humidity: 10%~90%(non-condensing)

Company Profile
Company Introduction
Shenzhen Kingbird Network Technology Co., Ltd., Set up in 2008, It is a data communication system and AI provider specializing in wireless and network communication technology, and a national high-tech enterprise specializing in the development, sales and services of embedded operating systems, wireless data communication systems and related software. The company specializes in providing a full range of solutions for the Internet of Things technology, not only providing 4G DTU, 4G gateway, 4G module, 5G router, WiFi module, WiFi DTU, Lora module, wireless gateway, wireless router and other AI products(AI voice mouse), but also providing users with Internet of Things software and platform development (web platform, APP, applet, public account, etc. ). It has been officially recognized as a national high-tech enterprise and software enterprise for six consecutive years, and owns nearly 50 intellectual property rights such as invention patents, utility model patents and software copyrights. The products independently researched and developed by the company include 4G, 5G, WiFi, Lora, Ethernet and other series of data communication and technical solutions, which are widely used in power, railway, security, oil field, meteorology, water conservancy and automation control, instrumentation and other industries. The products have been exported to the United Kingdom, Italy, the United States, Germany, Spain, Australia, Uzbekistan, Iran, Turkey, South Africa, Indonesia Malaysia, Singapore, Nepal, India, Bangladesh and more than 30 countries. We will adhere to technological innovation, constantly develop new products and provide users with better services according to market needs and customer needs.

---
