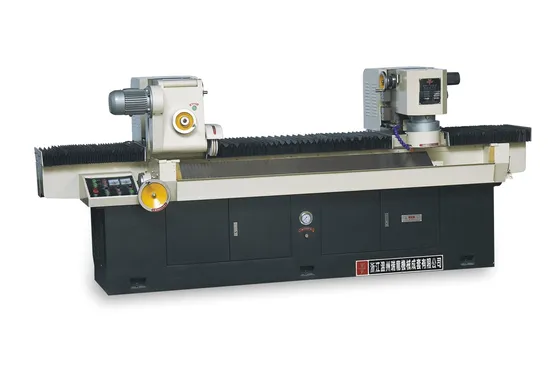

High Precision Face Knife Sharpener Knife Grinding Machine (MSQ-2200E)

Product Description

Introductions of High precision face knife sharpener/knife grinding machine:
MSQ-1650/2200E High precision face knife sharpener is a new patent product developed by our brother factory because of the high science and technology requirements.This tool mergers the knife grinding and blade grinding double grinding head into an organ. It adopts hydraulic automatic feeder, stroke speed change adjustment and roller straight guide. It can thoroughly get rid of the corrugated degree of the cutting section. It's the most advanced grinding equipment at home and can provide excellent services to printing houses toward precision an high level development.
Advantages:
1. High precision
2. Double Grinding Head
3. Hydraulic Automatic Feeder(adjustable speed and stable running)
4. Stroke speed change adjustment
5. Roller straight guid
6. Most advanced grinding machine
8. Complete removal of the paring on the polising disc(to increase the cut duration and decrease of the number of changing cutter)
9. Beeline guide rail(to decrease the abrasion and keep the precision of the machine tool)
10. Prompt delivery
We Zhejiang Guowei Printing Machinery Co.LTD sincerely hope we can establish business relations with you for mutual benefits. We welcome your inquiry anytime any where. Pls donot hesitate to contact us for any further details.

Model	MSQ-1650E	MSQ-2200E
Max. Grinding Length	1650mm	2200mm
Size of grinding Wheel	200x 100x100	200x 100x100
Polishing Disk Size	140mmx6	140mmx6
Width of Grinding Knife	200mm	200mm
Rotation Angle of Worktable	0 - ±90	0 - ±90
Moving Speed of Grinding Head	2-15m/min	2-15m/min
Auto Knife Feeding Amount	0.0075-0.05mm(Precisely grinding)	0.0075-0.05mm(Precisely grinding)
	0.0075-0.05mm(Roughly grinding)	0.0075-0.05mm(Roughly grinding)
Outside Dimension(LxWxH)	3400x1100x1550	4100x1100x1550
Net Weight	2.5T	3.0 T

The advantage of our company: (1) Over 30 years of international leading cutting equipment manufacturer
(2) Applied range including Paper sheet,Plastic sheet,Foil,Honeycomb board,Cardboard,Carbon fiber laminate,Leather,Glassine and Packing sheet ect.
(3)We have a special business mode,which is personalized production.We provide customized service according to each customer's specific way of production with the features of productions.
(4)We have our own warehouse to ensure the supply of spare parts at any time.
(5)Strictly follow ISO quality control, competitive price, fast delivery.
About Our Warehouse:
About Our Exhibition:
The Payment Terms: 30% TT in advance, balance before shipment. The Delivery Time: About 25 days after receipt of the deposit.

---
