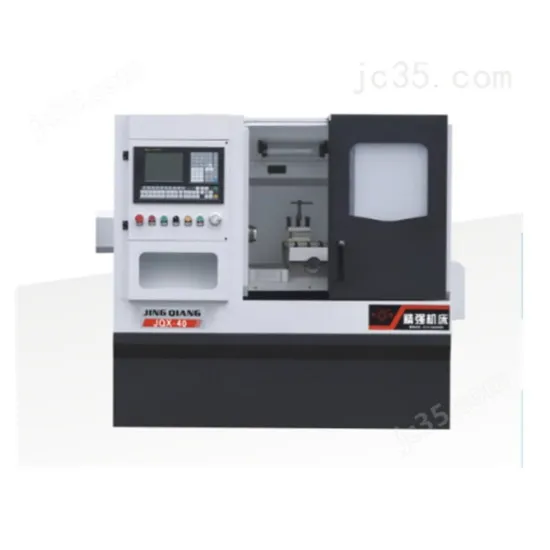

Horizontal High Precision Turning Machine Line Rail CNC Lathe Machine

Product Description

Horizontal High Precision Turning Machine Line Rail CNC Lathe Machine
Product Parameters

Maximum diameter of bed body(mm)	Φ400mm
Maximum length of workpiece(mm)	350mm
Diameter of spindle through hole(mm)	Φ48mm
Diameter of drawing hole(mm)	Φ40mm
Spindle speed range (stepless)(r/min)	100-3000r/min
Fast forward on the X-axis(mm/min)	20000mm/min
Z-axis fast forward(mm/min)	20000mm/min
Main motor power(KW)	4KW
Row tool rest (electric tool rest)	3 (pieces) (4 workstations)
X to travel(mm)	360mm
Z to travel(mm)	400mm
X axis pulse equivalent(mm)	0.005mm
Z axis pulse equivalent(mm)	0.01mm
Working thread range (metric)(mm)	0.25-12mm
Working thread range (imperial)	33 1/2-3 teeth/hour
Machine tool shape long.Wide.High(mm)	1800*1550*1600
Machine weight(KG)	Approximately 2200kg

Product Description
Application
Line rail CNC lathes are suitable for processing various small and medium-sized shaft and disc parts, and can turn various threads, arcs, cones, and inner and outer surfaces of rotating bodies. They are used in industries such as plumbing equipment, valves, electrical appliances, instruments, automobiles, motorcycles, bearings, etc. It has advantages such as high speed, efficiency, and high reliability.
Characteristics The spindle box adopts a high rigidity bearing structure, which can withstand large cutting and axial forces.
The size of the inner hole of the spindle is universal to instrument lathes, and the standard spring clamp is quick and convenient to loosen.
Adopting a flange type spindle structure, it facilitates the installation of manual and hydraulic chucks.
The bed is equipped with high-performance imported linear guide rails, which have high guiding accuracy, good stability, and fast movement speed, greatly improving your production efficiency and can withstand large loads.
The bed legs are made of gray cast iron as a whole, which has good shock absorption performance and is not easy to deform.
The whole machine adopts an electromechanical integrated design, with a compact and reasonable structure, good safety, and convenient use.
The CNC system adopts domestic products, which operate stably and have rich functions.
Company Profile
Taizhou Chuzhou Electromechanical Equipment Co., Ltd. which is located in yuhuan city, Zhejiang Province . The company is a professional production, sales of brass valve sanitary ware machinery and equipment group company. We have 5 factories, mainly producing machines for copper valves sanitary ware products : automatic hot forging Trimming Machine , shot blasting machine, automatic polishing machine, automatic CNC machine tool, automatic assembly machine, whole line processing and testing equipment . We have a group of professional engineers in charge of technology, manufacture, installation and testing, so we can guarantee the good performance of our machines. We can provide customers with full service and technical consultation according to their different requirements . Cosmos company would like to offer the best machines, and build ourselves as the bridge and window for both overseas and domestic enterprises and customers. Products are exported to Russia, India, Iran, Turkey, United Arab Emirates, Vietnam, Uzbekistan, Saudi Arabia, Syria, Jordan, Indonesia, Singapore, Thailand, Pakistan, South Africa, Egypt, Nigeria, Kenya and other countries.
welcome to build business relations, cooperate and develop together with us. Please feel free to contact us for details.
FAQ
Q1: Are you trading company or manufacturer ?
A1: We are factory.
Q2: What is the delivery time?
A2: 20-40 working day, based on factory's production order conditions.
Q3: How to installation machine?
A3: We supply overseas service, engineer can go to your place guide installation and debugging.
Q4: What size machine suit for us?
A4: We design machine following your request, usually based on your workpiece size, weight and efficiency.
Q5: How to control the quality?
A5: One year warranty,and 10 teams QC to check every part from drawing to machine finished.

---
