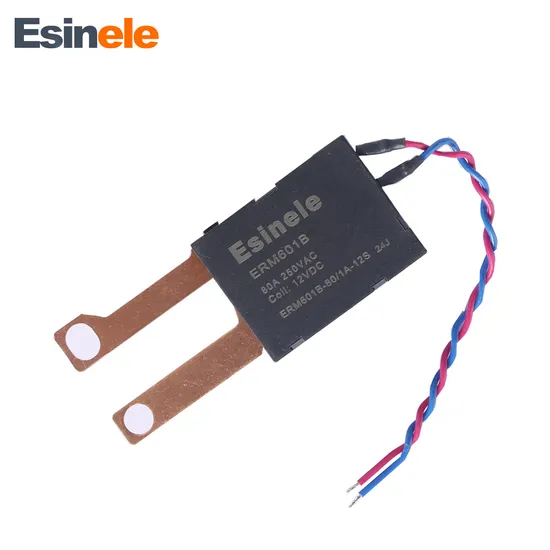

ERM601B
Characteristic:
60A/80A contact switching capabilityOnly impulse excitation needed, both for single and double coil.Low power consumption, small in sizeCustom assemblies available with flexible wire and/or copper straps, and/or with integrated shunt4KV dielectric strength between coil and contactsRoHS compliantOutline dimensions:(39x 30 x16.5) mm ERM601B
Characteristic:60A/80A contact switching capabilityOnly impulse excitation needed, both for single and double coil.Low power consumption, small in sizeCustom assemblies available with flexible wire and/or copper straps, and/or with integrated shunt4KV dielectric strength between coil and contactsRoHS compliant
Outline dimensions:(43.2x 33.2 x22) mm
Product Parameters

Contact Specification
Dimensions(mm)	43.2×33.2×22mm
Contact Form	1A/1B
Contact Material	Silver Alloy
Max Switching Current(Anti-load)	120A
Max Switching Voltage	28VDC/250V AC
Max Switching Power	3000W/30000V A
Wight	75g

Coil Specification
Rated Coil Voltage		6VDC	9VDC	12VDC	24VDC	48VDC
Rated Coil Voltage	Single Coil (±10%Ω)	36	81	144	576	2304
	Double Coil (±10%Ω)	18	40.5	72	288	1152
Power Consumption		Single Coil 1.0W;Double Coil 2.0W
Pick-up Voltage		≤75% Rated Coil Voltage
Drop-out Voltage		≤75% Rated Coil Voltage
Max. Applicable Voltage		≤120% Rated Coil Voltage
Pick-up Time(At Rated Voltage)		≤20ms
Drop-out Time(At Rated Voltage)		≤20ms
Bounce Time		≤2ms

Characteristics
Ambient Temp		-40~+70ºC
Ambient Humidity		≤75% Annually average
Anti-vibration		10~55Hz, 0.5mm (Double Amplitude)
Anti-shock		98m/s2 , 11ms
R.H.		45%~85%
Contact Resistance		≤2.0mΩ (1A/6VDC)
Insulation Resistance		1000MΩ (500VDC)
Dielectric Strength	Between Contacts	2000VAC 50/60Hz(1 Minute)
	Between Contact & Coil	4000VAC 50/60Hz(1 Minute)
Life	Electrical Life	≥1×104 OPS
	Mechanical Life	≥1×106 OPS

External Diagram

Wiring Diagram
