Tianyi He Series Engieering Machinery Small Mimi Crawler Excavator Digger

Product Description

Tianyi HE Series Engieering Machinery Small Mimi Crawler Excavator Digger Product Description

Para meter		HE10E	HE17U	HE20	HE20U
Main parameters	Operating weight	900kg	1200kg	1855kg	2020kg
	Overall length	2200mm	2460mm	3750mm	3550mm
	Overall width	930mm	1100mm	1050mm	1050mm
	Overall height	2150mm	2270mm	2300mm	2370mm
	Crawler belt length	1230mm	1400mm	1620mm	1900mm
	Chassis width	930mm	1100mm	1050mm	1050-1300mm
	Standard bucket capacity	0.025m3	0.04m3	0.05m3	0.05m3
Main operation range	Max. digging depth	1630mm	2000mm	2200mm	2200mm
	Max. digging height	2750mm	3000mm	3660mm	3600mm
	Max. dumping height	1960mm	2050mm	2520mm	2500mm
	Max. digging radius	2900mm	3500mm	3770mm	3800mm
	Min. rotation radius	1300mm	1600mm	1 500mm	1700mm
	Max. digging distance	2100mm	2700mm	2660mm	2500mm
	Push blade liting height	180mm	180mm	320mm	230mm
	Push blade fllinig depth	210mm	200mm	200mm	160mm
Main performance specifications	Engine Type	Changchai192FAW/KoopKD192F (Euro V) UppowerKD192F(Euro V)	Laidong380	ChangchaiZN390Q/Laidong KM385B Xinchai3B11X40(Euro V)	Yanmar3TNV70/KubotaD902(Euro V) EPA
	Engine parameter	7.6kw 3000rpm /7kw 3000pm/7.6kw-3000rpm	19KW/2200rpm	18Kw-2200rpm/18.1kw-2200rpm/18.5kw-3000rpm	10kw- 2200rpm/12kw- 2300rpm
	Working pressure	16Mpa	18MPa	18Mpa	20Mpa
	Main pump	6mL/r	10+4ml/r	9+9+3ml/r	18ml/r
	Grade ability	30°	30°	35°	35°
	Max. digging force	10KN	11KN	12KN	12KN
	Operation mode	Mechanical operation	Pilot hydraulic control	Pilot hydraulic control	Pilot hydraulic control

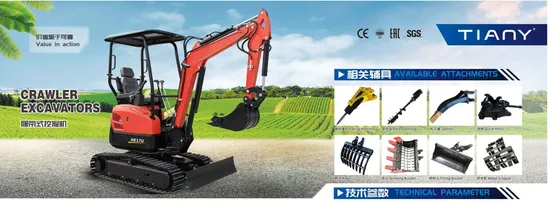

Available Attachments:
Breaking Hammer
Rotary Drilling
Rake
Screening Bucket
Opener
Tilting Bucket
Quick Hitch
Wood Grapple
Advantages:
.New appearance designed by joint R&D with well-known universities, simple but powerful
·Advanced patent transmission box and axle pass through finite element analysis and fatigue resistance testing to have continuously upgrades in reliability
.Continuously improved hydraulic system to realize more stable, flexible and high efficiency work
.Excellent grade ability and powerful digging force can fit for all kinds of different working conditions
.Heavier operating weight compared to other domestic brands to have much reliable mechanical performance
.Various attachments to working indifferent working places
.Various emissions engine available for European, North America and other countries.
.New appearance designed by joint R&D with well-known universities, simple but powerful
·Advanced patent transmission box and axle pass through finite element analysis and fatigue resistance testing to have continuously upgrades in reliability
.Continuously improved hydraulic system to realize more stable, flexible and high efficiency work
.Excellent grade ability and powerful digging force can fit for all kinds of different working conditions
.Heavier operating weight compared to other domestic brands to have much reliable mechanical performance
.Various attachments to working indifferent working places
.Various emissions engine available for European, North America and other countries.
Company Overview

Zaozhuang Tianyi Industry Co., Ltd., established in 2002, is located in Zaozhuang City, Shandong Province, China. Covering an area of 30,000 square meters with a building area of 23,000 square meters, our company currently employs over 200 staff members. As a high-tech enterprise, we specialize in the research, development, production, sales, and service of hydraulic fluid pipes, related fittings, base oils, and lubricant products.At present, our company has developed four product series: Series 1: Hydraulic fluid pipe series. Series 2: Fittings series. Series 3: Base oil and lubricant series. Series 4: Engineering Machinery Series.
Tianyi has successively been recognized as a national high-tech enterprise, Shandong Provincial Enterprise Technology Center, Shandong Provincial "Specialized, Refined, Unique and New" Small and Medium-sized Enterprise, Shandong Provincial Intelligent Manufacturing Pilot Enterprise, one of the first batch of technological innovation project enterprises in Shandong Province, Zaozhuang City Science and Technology Little Giant Enterprise, Zaozhuang City Hydraulic Pipeline Technology Innovation Key Laboratory, and a trustworthy enterprise for national mining safety logo quality products, among others.Zaozhuang Tianyi Industry Co., Ltd., established in 2002, is located in Zaozhuang City, Shandong Province, China. Covering an area of 30,000 square meters with a building area of 23,000 square meters, our company currently employs over 200 staff members. As a high-tech enterprise, we specialize in the research, development, production, sales, and service of hydraulic fluid pipes, related fittings, base oils, and lubricant products.At present, our company has developed four product series: Series 1: Hydraulic fluid pipe series. Series 2: Fittings series. Series 3: Base oil and lubricant series. Series 4: Engineering Machinery Series.
Tianyi has successively been recognized as a national high-tech enterprise, Shandong Provincial Enterprise Technology Center, Shandong Provincial "Specialized, Refined, Unique and New" Small and Medium-sized Enterprise, Shandong Provincial Intelligent Manufacturing Pilot Enterprise, one of the first batch of technological innovation project enterprises in Shandong Province, Zaozhuang City Science and Technology Little Giant Enterprise, Zaozhuang City Hydraulic Pipeline Technology Innovation Key Laboratory, and a trustworthy enterprise for national mining safety logo quality products, among others.
