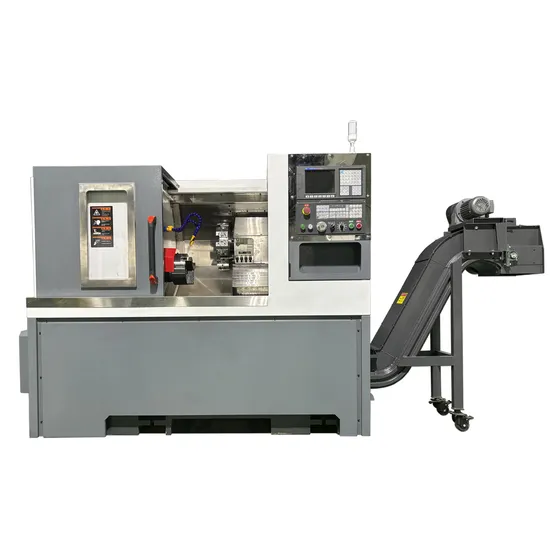

Gd46-400 CNC Metal Lathe Machine 400mm Processing Length 0.005mm High Precision CNC Turning and Cutting Machine with Tailstock and 8/12 Station Tool Turret

Product Description

Product Description

Detailed Photos

List of Main Accessories (GD46-400)
No.	Name	Quantity	Supplier	Remark
1	System	1set	Guangshu	GSK980TC3
2	Spindle (servo driver + AC servo stator)	1set	Weichuang	Electric spindle 7.5KW
3	Hardware (current loop servo driver + 23-bit 5-pole motor)	each 1set	GSK Original	X axis 1.5kw brake Z axis 1.5kw
4	X,Z axis screw bearing	Each 1 set		760205 760204
5	X,Z axis ball screw	Each 1 set	Taiwan(SHAC)	3210*973 3210*548
6	X axis linear guide rail	2pcs	SHAC	Roller 35-560
7	Z axis linear guide rail	2pcs	SHAC	Roller 35-1000
8	Spindle	1	Xinshiheng	A2-5/A2-6(Ø46/Ø56)
9	Turret	1	SH	80--8T--280
10	Cutting fluid pump	1	Chuangjie	0.25kw
11	Auto Lubriction System	1	Taizhou Hejin	2L
12	X,Z axis coupling	each 1	Jiangsu	19-22
13	Hydraulic chuck	1	RENY(Taiwan)	hollow 8 inches
14	Hydraulic tailstock	1	Xinshiheng	Mohs 5
Project	Specification		Value
Machining Capacity	Maximum turning diameter of the bed	mm	450
	Standard machining diameter	mm	200
	Maximum machining diameter	mm	280
	Maximum machining length	mm	400
	Bar machining diameter	mm	46
Stroke	X axis stroke	mm	200
	Z axis stroke	mm	530
Spindle	Speed	RPM	4000
	Spindle nose		A2-5/A2-6
	Spindle hole diameter	mm	56
	Bearing inner diameter	mm	85/90
Tool Post	Tool post form		Straight mounted type
	Tool install quantity	unit	8
	the height of the rectangle tool shank	mm	25
	Diameter of boring bar shank	mm	32
Tailstock	Tailstock stroke	mm	300
	Diameter of tailstock sleeve	mm	75
	Taper of tail seat sleeve cone hole		MT.5
	Tailstock sleeve stroke	mm	100
Feeding velocity	Fast feeding velocity	m/min	X:25 / Z:25
Motor	Spindle motor (30min 60%/ continuous)	kW	7.5/11
	Turret motor	kW	-
	Feeding shaft motor	kW	X: 1.5 / Z: 1.5
	Hydraulic pump motor	kW	1.5
	Cutting fluid motor	kW	0.4
Supply power	Power supply power	kVA	11
Tank capacity	for hydraulic equipment	L	50
	for lubrication oil	L	2
	for cutting fluid	L	60
Machine tool volume	Height of machine	mm	1750
	The height from the ground to the centerline of the spindle	mm	980
	Floor space	mm x mm	2200 x 1450
	Weight	kg	2500

Company Profile

Certifications
Exhibitions
Customer Reviews
Packaging & Shipping
FAQ
1.What is the payment Terms?
A:30% initial payment when order,70% balance payment before shipment;lrrevocable LC at sight.When we receive theadvance payment,we will start to make production.when the machine is ready,we will take pictures to you.after we gotyour balance payment we will send the machine to you.
2. What is your trade terms? A:FOBCFRand CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machinewe can ready the machine within 15days. if some special ma- chines will be some longer.You can place order accordingto delivery time and ship timewe willgive you the answer accordingly.
4. What is your trade terms?
A:FOB,CFRCIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MoQ is one set, lathe warranty is one year and system warranty is three vear
6. What is the package of the machines?
A:The machines standard will be packed in wood case.
7.how to guarantee the precision
In order to guarantee the high precision, we use integrate bed, and imported accessories, such as ball screw rod,Linear guide rail, automatic lubrication system, during the effective machining range, our machine can guarantee the error 0.01mm.

---
