Product Details
Product Description
Product Description
Introduction:
EVA POE film can be used for solar cells, crystalline silicon cells, thin film photovoltaic cells and other components within the packaging material. The content of 30% -33% of the EVA resin as main raw material, made through a special process, with strong bonding, high light transmission, anti-aging characteristics.
Feature:
1) Good encapsulating property
2) Have a high cross linking rate after lamination.
3) Excellent light and transmittance and transparency.
4) Inactivation and harmless in solar cell during processing.
5) Excellent adhesion to glass, metal and plastics PET, TPT maintaining long term adhesion.
6) Excellent durability, such as weather resistance, high temperature and high humidity resistance, UV light resistance.
EVA POE packaging film is mainly used for solar cell encapsulation. The EVA/POE solar film, in terms of adhesion and durability, has superior optical characteristics; it is more and more widely used in the electric cell module and many optical products

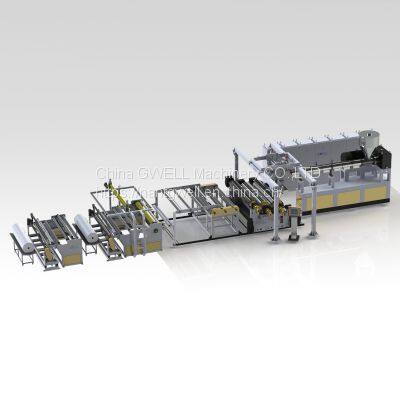

GWELL Equipment is mainly engaged in the development, production and sales of EVA、POE、EPE holt melt adhesives film production line in solar panel encapsulation as the core. By virtue of its technological leadership and market achievements, GWELL has shown its technical leadership by becoming the lead in the development of national standards for EVA/POE/EPE soalr film machine . With the in-depth study of solar fil machine as its main product, GWELL's EVA /POE/EPE solar film machine has the highest global market share & is world’s number one for many years. GWELL is not only a domestic leader, but also a major supplier and a well-known brand to several leading foreign solar film companies.Machine are exported to America, India, Turkey, and Thailand.
| Extruder type | Co-extrusion
GWS160+GWS160
| Co-extrusion
GWS180+GWS160
| Co-extrusion
GWS180+GWS180
|
| Raw material | EVA、POE | EVA、POE | EVA、POE |
| Product width | 2400mm | 2600mm | 2600mm |
| Product thickness | 0.2mm-1mm | 0.2mm-1mm | 0.2mm-1mm |
| Maximum linear speed | 15m/min | 16m/min | 18m/min |
>>
