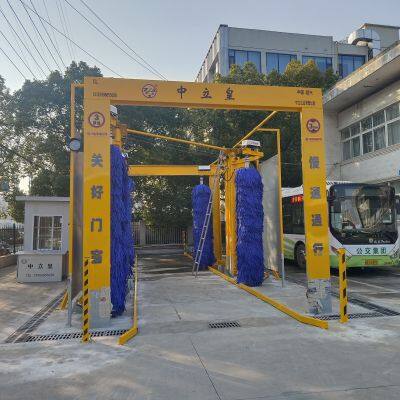

Equipment Name: Channel Four Brush Bus Washing Machine
Specification and model: DXC（D）-400
1. Car washing machine size: length 8800mm x width 5360mm x height 4250/4950mm (customizable).
2. Washable vehicle size: unlimited length x width 2600mm x height 3500/4200mm.
3. Electricity standard: three-phase five wire/380V/50Hz, total power 9-12.5Kw.
4. Car washing speed: 40~60 vehicles/hour, adjustable.
5. Compressed air pressure: 0.8Mpa.
6. Single car wash power consumption: approximately 0.2 kWh per vehicle.
7. Single car wash water consumption: about 100-120L/vehicle;, Configure water circulation for approximately 20-30 liters per vehicle.
8. Cleaning brush set: four large side brushes/two large and two small side brushes, with optional foam/nylon bristles.
9. Control methods: unmanned control management system, PLC intelligent automation control system, button assisted control, human-machine interface control system (optional);
10. Cleaning mode: channel type frame structure is adopted, and the driver drives the vehicle forward and performs profiling brushing, high-pressure water flushing and foam liquid cleaning (optional);
11. Whole machine structure: The whole machine structure is designed in accordance with national safety standards, and the steel grade meets national standards. The entire machine frame is made of high-quality galvanized steel according to national standards, and has been treated with rust removal, anti-corrosion, and baking paint technology.
12. Equipment electrical standards: All electrical components of the entire machine comply with national electrical safety specifications, with an electrical protection level of not less than IP65 and an insulation level of not less than Class B, and have CE and CCC certification certificates.
Main FeaturesSense water spraying automatically
Spraying automobile detergent automatically
Cleaning rim automatically
Wax spraying automatically
Copying dryer automatically
Sewage treatment system to purify, circulate and save
Our Company
Shaoxing Zhongli Machinery Plant
The company is in the eastern of china, the hometown of Lu xun who is a Chinese famous writer. Our company is a modern, multi-private enterprise which dedicates to invest, research, manufacture, manage and service. Our business line includes commercial manufacture, set of equipment operation, joining management, steel construction and the investment of real estate.
Our Service
Our company provides free customized body appearance services for our products. We can customize designs according to customer requirements, such as shape, pattern, color, structure, size, etc. Appearance is an integral part of the quality of this product. Its design fully considers the psychological characteristics and aesthetic concepts of consumers from different regions, ethnic groups, and countries, achieving differentiation from place to place, meeting the psychological needs of customers, and matching the inherent technical performance and characteristics of the product, making the overall structure of the product reasonable, applicable, beautiful, and generous, giving people a sense of beauty.
