Smart Metal Remote Control Aluminum House Audio Controller Air Purifier

Product Description

OEM IR/RF remote control,Controlo remoto
Apply: TV, AUDIO,SPEAKER, LIGHT, MUSIC, MEDIA, DIMMER, AUTO PARTS, AIR PURIFIER ,HEATER, THREADMILL...

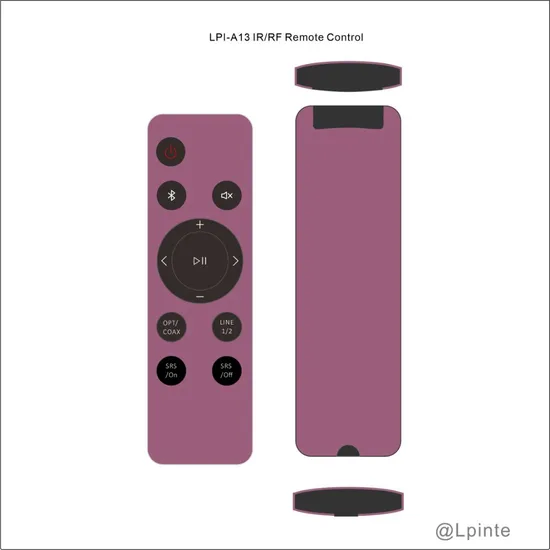

Specification: LPI-A13

LPI-A13
	Small form factor remote control
	Aluminum shell
	Remote Controller		IR, RF, 2.4G
	Application: audio,speaker, light,
	OEM & ODM are welcome
Specifications
	Number of keys		1-13
	Dimensions		121x36x10mm
	Case		Aluminum alloy
	Buttons Type		metal dome, plastic
	Textplate		YES
	Weight (incl. batteries)		35.5g
	Battery		DC3.0V/CR2032

Size: L121 x W36 x H10mm
Battery: CR2032 brand long lifespan
Keys: From 6 to 13 max
Your artwork/logo, OEM available.
IC Protocol: Normal standard NEC format, 38kHz. IR, RF, 2.4G
Or programmed code system
Contact us now for your own design to envalue your products.
Small order acceptable
OEM/ODM are welcome.
Regular Parameter data:
1, Operation Force:
Each key's operation force is in the range of: 180±40g.f and total deviation in 50g.f. Base on Center.
2, Key Stroke:
Vertical press Key with force of 180g, the key stroke within the range of: 0.8±0.2mm Base on Center.
3, Straight Distance:
IR remote control distance up to 15 meters
RF remote control up to 30 meters
4,IR Receiver Direction:Up Down Left Right Direction 15degree at min.3M Distance.
5,Room Temp:25ºC
6,Room Humi:65~80% RH
8,Power Voltage: DC 3.0V
9,Test Environment illumination: 350Lux
10,Leakage Currency: Under 3uA No key pressed
11,Working Voltage DC2.2V~DC3.4V
12,Contact Resistance :under 3K Ohms

---
