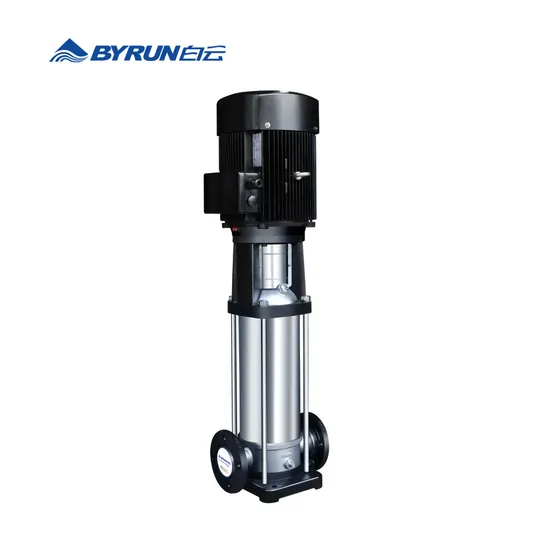

Bgf Series Vertical Multistage Stainless Steel Centrifugal Pump

Product Description

Product DescriptionBGF Series Vertical Multistage Stainless Steel Centrifugal Pump
[Overview]♦ BGF Series Vertical Multistage Stainless Steel Centrifugal Pump is a multi-purpose product that can transport different media varies from tap water to industrial liquids.It can work under different temperatures, flows and pressures, and is also suitable for corrosive liquids.[Features]♦ Compact structure, small size, light weight, beautiful appearance and outstanding performance;♦ Adopt advanced manufacturing technology of stamping and welding , ensuring stable quality, high efficiency and energy saving;♦ Made of stainless steel material, corrosion-resistant, no rust, long service life;♦ Integrated design of engine and pump, small vibration and low noise;♦ Seriation design, high interchangeability of parts, reduce the inventory of spare parts for user maintenance; ♦ Adjustable and easy to install with diverse methods for the import and export connection[Application]♦ It can transport a variety of different medium from tap water to industrial liquids.♦ Flow range: 0.4~120m³/h♦ Head Range: 6~312m♦ Medium temperature: -15 °C ~ 110 °C♦ Special working conditions, professional customized services supported.Model Description
Product Parameters

NO.	Byrun Model	Specification
		Flow	Head	Power	Speed	Inlet&Outlet
		m³/h	m	kw	rpm	mm
1	BGF1-2	1	13	0.37	2900	DN32
2	BGF1-3	1	18	0.37	2900	DN32
3	BGF1-4	1	24	0.37	2900	DN32
4	BGF1-5	1	29.5	0.37	2900	DN32
5	BGF1-6	1	34	0.37	2900	DN32
6	BGF1-7	1	40.5	0.37	2900	DN32
7	BGF1-8	1	46	0.55	2900	DN32
8	BGF1-9	1	51	0.55	2900	DN32
9	BGF1-10	1	57	0.55	2900	DN32
10	BGF1-11	1	62	0.55	2900	DN32
11	BGF1-12	1	68.5	0.75	2900	DN32
12	BGF1-13	1	74	0.75	2900	DN32
13	BGF1-15	1	84	0.75	2900	DN32
14	BGF1-17	1	98	1.1	2900	DN32
15	BGF1-19	1	109	1.1	2900	DN32
16	BGF1-21	1	119	1.1	2900	DN32
17	BGF1-23	1	131	1.1	2900	DN32
18	BGF1-25	1	147	1.5	2900	DN32
19	BGF1-27	1	157	1.5	2900	DN32
20	BGF1-30	1	174	1.5	2900	DN32
21	BGF1-33	1	195	2.2	2900	DN32
22	BGF1-36	1	212	2.2	2900	DN32
23	BGF2-2	2	15	0.37	2900	DN32
24	BGF2-3	2	22	0.37	2900	DN32
25	BGF2-4	2	29	0.55	2900	DN32
26	BGF2-5	2	36	0.55	2900	DN32
27	BGF2-6	2	45	0.75	2900	DN32
28	BGF2-7	2	51	0.75	2900	DN32
29	BGF2-9	2	69	1.1	2900	DN32
30	BGF2-11	2	82	1.1	2900	DN32
31	BGF2-13	2	99	1.5	2900	DN32
32	BGF2-15	2	113	1.5	2900	DN32
33	BGF2-16	2	120	2.2	2900	DN32
34	BGF2-17	2	127	2.2	2900	DN32
35	BGF2-18	2	138	2.2	2900	DN32
36	BGF2-19	2	142	2.2	2900	DN32
37	BGF2-20	2	150	2.2	2900	DN32
38	BGF2-22	2	165	2.2	2900	DN32
39	BGF2-23	2	172	3	2900	DN32
40	BGF2-24	2	180	3	2900	DN32
41	BGF2-26	2	199	3	2900	DN32
42	BGF3-2	3	9	0.37	2900	DN32
43	BGF3-3	3	15	0.37	2900	DN32
44	BGF3-4	3	19	0.37	2900	DN32
45	BGF3-5	3	23	0.37	2900	DN32
46	BGF3-6	3	29	0.55	2900	DN32
47	BGF3-7	3	31	0.55	2900	DN32
48	BGF3-8	3	38	0.75	2900	DN32
49	BGF3-9	3	41	0.75	2900	DN32
50	BGF3-10	3	46	0.75	2900	DN32
51	BGF3-11	3	51	1.1	2900	DN32
52	BGF3-12	3	56	1.1	2900	DN32
53	BGF3-13	3	60	1.1	2900	DN32
54	BGF3-15	3	69	1.1	2900	DN32
55	BGF3-17	3	82	1.5	2900	DN32
56	BGF3-19	3	90	1.5	2900	DN32
57	BGF3-21	3	102	2.2	2900	DN32
58	BGF3-23	3	111	2.2	2900	DN32
59	BGF3-25	3	121	2.2	2900	DN32
60	BGF3-27	3	130	2.2	2900	DN32
61	BGF3-29	3	139	2.2	2900	DN32
62	BGF3-31	3	152	3	2900	DN32
63	BGF3-33	3	161	3	2900	DN32
64	BGF3-36	3	174	3	2900	DN32
65	BGF4-2	4	15	0.37	2900	DN32
66	BGF4-3	4	24	0.55	2900	DN32
67	BGF4-4	4	32	0.75	2900	DN32
68	BGF4-5	4	39	1.1	2900	DN32
69	BGF4-6	4	47	1.1	2900	DN32
70	BGF4-7	4	56	1.5	2900	DN32
71	BGF4-8	4	63	1.5	2900	DN32
72	BGF4-10	4	81	2.2	2900	DN32
73	BGF4-12	4	96	2.2	2900	DN32
74	BGF4-13	4	105	3	2900	DN32
75	BGF4-14	4	114	3	2900	DN32
76	BGF4-15	4	121	3	2900	DN32
77	BGF4-16	4	129	3	2900	DN32
78	BGF4-17	4	138	4	2900	DN32
79	BGF4-18	4	146	4	2900	DN32
80	BGF4-19	4	156	4	2900	DN32
81	BGF4-20	4	162	4	2900	DN32
82	BGF4-21	4	170	4	2900	DN32
83	BGF4-22	4	178	4	2900	DN32
84	BGF5-2	5	9	0.37	2900	DN32
85	BGF5-3	5	15	0.55	2900	DN32
86	BGF5-4	5	20	0.55	2900	DN32
87	BGF5-5	5	25	0.75	2900	DN32
88	BGF5-6	5	30	1.1	2900	DN32
89	BGF5-7	5	35	1.1	2900	DN32
90	BGF5-8	5	40	1.1	2900	DN32
91	BGF5-9	5	49	1.5	2900	DN32
92	BGF5-10	5	54	1.5	2900	DN32
93	BGF5-11	5	59	2.2	2900	DN32
94	BGF5-12	5	66	2.2	2900	DN32
95	BGF5-13	5	70	2.2	2900	DN32
96	BGF5-14	5	76	2.2	2900	DN32
97	BGF5-15	5	81	2.2	2900	DN32
98	BGF5-16	5	87	2.2	2900	DN32
99	BGF5-18	5	99	3	2900	DN32
100	BGF5-20	5	110	3	2900	DN32
101	BGF5-22	5	124	4	2900	DN32
102	BGF5-24	5	134	4	2900	DN32
103	BGF5-26	5	145	4	2900	DN32
104	BGF5-29	5	164	4	2900	DN32
105	BGF5-32	5	180	5.5	2900	DN32
106	BGF5-36	5	202	5.5	2900	DN32
107	BGF8-2	8	18	0.75	2900	DN40
108	BGF8-3	8	27	1.1	2900	DN40
109	BGF8-4	8	36	1.5	2900	DN40
110	BGF8-5	8	45	2.2	2900	DN40
111	BGF8-6	8	54	2.2	2900	DN40
112	BGF8-7	8	65	3	2900	DN40
113	BGF8-8	8	73	3	2900	DN40
114	BGF8-9	8	84	3	2900	DN40
115	BGF8-10	8	92	4	2900	DN40
116	BGF8-12	8	111	4	2900	DN40
117	BGF8-14	8	130	5.5	2900	DN40
118	BGF8-16	8	148	5.5	2900	DN40
119	BGF8-18	8	167	7.5	2900	DN40
120	BGF8-20	8	186	7.5	2900	DN40
121	BGF8-22	8	205	7.5	2900	DN40
122	BGF10-2	10	16	0.75	2900	DN40
123	BGF10-3	10	24	1.1	2900	DN40
124	BGF10-4	10	32	1.5	2900	DN40
125	BGF10-5	10	40	2.2	2900	DN40
126	BGF10-6	10	48	2.2	2900	DN40
127	BGF10-7	10	57	3	2900	DN40
128	BGF10-8	10	65	3	2900	DN40
129	BGF10-9	10	73	3	2900	DN40
130	BGF10-10	10	81	4	2900	DN40
131	BGF10-12	10	97	4	2900	DN40
132	BGF10-14	10	113	5.5	2900	DN40
133	BGF10-16	10	130	5.5	2900	DN40
134	BGF10-18	10	146	7.5	2900	DN40
135	BGF10-20	10	163	7.5	2900	DN40
136	BGF10-22	10	180	7.5	2900	DN40
137	BGF12-2	12	23	1.5	2900	DN40
138	BGF12-3	12	35	2.2	2900	DN40
139	BGF12-4	12	46.5	3	2900	DN40
140	BGF12-5	12	58	3	2900	DN40
141	BGF12-6	12	69.5	4	2900	DN40
142	BGF12-7	12	81.5	5.5	2900	DN40
143	BGF12-8	12	93	5.5	2900	DN40
144	BGF12-9	12	104.5	5.5	2900	DN40
145	BGF12-10	12	116.5	7.5	2900	DN40
146	BGF12-12	12	139	7.5	2900	DN40
147	BGF12-14	12	163	11	2900	DN40
148	BGF12-16	12	186	11	2900	DN40
149	BGF12-18	12	209	11	2900	DN40
150	BGF15-2	15	23	2.2	2900	DN50
151	BGF15-3	15	35	3	2900	DN50
152	BGF15-4	15	47	4	2900	DN50
153	BGF15-5	15	59	4	2900	DN50
154	BGF15-6	15	71	5.5	2900	DN50
155	BGF15-7	15	83	5.5	2900	DN50
156	BGF15-8	15	96	7.5	2900	DN50
157	BGF15-9	15	108	7.5	2900	DN50
158	BGF15-10	15	120	11	2900	DN50
159	BGF15-12	15	143	11	2900	DN50
160	BGF15-14	15	166	11	2900	DN50
161	BGF15-17	15	204	15	2900	DN50
162	BGF16-2	16	22	2.2	2900	DN50
163	BGF16-3	16	34.5	3	2900	DN50
164	BGF16-4	16	46.5	4	2900	DN50
165	BGF16-5	16	57.5	4	2900	DN50
166	BGF16-6	16	70	5.5	2900	DN50
167	BGF16-7	16	80.5	5.5	2900	DN50
168	BGF16-8	16	93	7.5	2900	DN50
169	BGF16-9	16	104	7.5	2900	DN50
170	BGF16-10	16	118	11	2900	DN50
171	BGF16-12	16	140	11	2900	DN50
172	BGF16-14	16	162	11	2900	DN50
173	BGF16-17	16	199	15	2900	DN50
174	BGF20-2	20	23	2.2	2900	DN50
175	BGF20-3	20	35	4	2900	DN50
176	BGF20-4	20	47	5.5	2900	DN50
177	BGF20-5	20	58	5.5	2900	DN50
178	BGF20-6	20	70	7.5	2900	DN50
179	BGF20-7	20	82	7.5	2900	DN50
180	BGF20-8	20	94	11	2900	DN50
181	BGF20-10	20	118	11	2900	DN50
182	BGF20-12	20	142	15	2900	DN50
183	BGF20-14	20	166	15	2900	DN50
184	BGF20-17	20	202	18.5	2900	DN50
185	BGF32-1-1	32	10	1.5	2900	DN74
186	BGF32-1	32	12	2.2	2900	DN74
187	BGF32-2-2	32	21	3	2900	DN74
188	BGF32-2	32	28	4	2900	DN74
189	BGF32-3-2	32	36	5.5	2900	DN74
190	BGF32-3	32	42	5.5	2900	DN74
191	BGF32-4-2	32	50	7.5	2900	DN74
192	BGF32-4	32	56	7.5	2900	DN74
193	BGF32-5-2	32	64	11	2900	DN74
194	BGF32-5	32	70	11	2900	DN74
195	BGF32-6-2	32	78	11	2900	DN74
196	BGF32-6	32	84	11	2900	DN74
197	BGF32-7-2	32	92	15	2900	DN74
198	BGF32-7	32	98	15	2900	DN74
199	BGF32-8-2	32	106	15	2900	DN74
200	BGF32-8	32	112	15	2900	DN74
201	BGF32-9-2	32	120	18.5	2900	DN74
202	BGF32-9	32	126	18.5	2900	DN74
203	BGF32-10-2	32	134	18.5	2900	DN74
204	BGF32-10	32	140	18.5	2900	DN74
205	BGF32-11-2	32	148	22	2900	DN74
206	BGF32-11	32	154	22	2900	DN74
207	BGF32-12-2	32	162	22	2900	DN74
208	BGF32-12	32	168	22	2900	DN74
209	BGF32-13-2	32	176	30	2900	DN74
210	BGF32-13	32	182	30	2900	DN74
211	BGF32-14-2	32	190	30	2900	DN74
212	BGF32-14	32	196	30	2900	DN74
213	BGF32-15-2	32	204	30	2900	DN74
214	BGF32-15	32	210	30	2900	DN74
215	BGF32-16-2	32	218	30	2900	DN74
216	BGF32-16	32	224	30	2900	DN74
217	BGF42-1-1	42	16	3	2900	DN80
218	BGF42-1	42	19	4	2900	DN80
219	BGF42-2-2	42	33	5.5	2900	DN80
220	BGF42-2	42	40	7.5	2900	DN80
221	BGF42-3-2	42	54	11	2900	DN80
222	BGF42-3	42	62	11	2900	DN80
223	BGF42-4-2	42	75	15	2900	DN80
224	BGF42-4	42	83	15	2900	DN80
225	BGF42-5-2	42	94	18.5	2900	DN80
226	BGF42-5	42	104	18.5	2900	DN80
227	BGF42-6-2	42	118	22	2900	DN80
228	BGF42-6	42	126	22	2900	DN80
229	BGF42-7-2	42	139	30	2900	DN80
230	BGF42-7	42	147	30	2900	DN80
231	BGF42-8-2	42	160	30	2900	DN80
232	BGF42-8	42	168	30	2900	DN80
233	BGF42-9-2	42	181	30	2900	DN80
234	BGF42-9	42	189	37	2900	DN80
235	BGF42-10-2	42	202	37	2900	DN80
236	BGF42-10	42	210	37	2900	DN80
237	BGF42-11-2	42	223	45	2900	DN80
238	BGF42-11	42	231	45	2900	DN80
239	BGF42-12-2	42	244	45	2900	DN80
240	BGF42-12	42	252	45	2900	DN80
241	BGF42-13-2	42	265	45	2900	DN80
242	BGF65-1-1	65	13	4	2900	DN100
243	BGF65-1	65	20	5.5	2900	DN100
244	BGF65-2-2	65	28	7.5	2900	DN100
245	BGF65-2-1	65	35	11	2900	DN100
246	BGF65-2	65	42	11	2900	DN100
247	BGF65-3-2	65	50	15	2900	DN100
248	BGF65-3-1	65	56	15	2900	DN100
249	BGF65-3	65	63	18.5	2900	DN100
250	BGF65-4-2	65	70	18.5	2900	DN100
251	BGF65-4-1	65	77	22	2900	DN100
252	BGF65-4	65	84	22	2900	DN100
253	BGF65-5-2	65	91	30	2900	DN100
254	BGF65-5-1	65	98	30	2900	DN100
255	BGF65-5	65	105	30	2900	DN100
256	BGF65-6-2	65	112	30	2900	DN100
257	BGF65-6-1	65	119	37	2900	DN100
258	BGF65-6	65	126	37	2900	DN100
259	BGF65-7-2	65	133	37	2900	DN100
260	BGF65-7-1	65	140	37	2900	DN100
261	BGF65-7	65	147	45	2900	DN100
262	BGF65-8-2	65	154	45	2900	DN100
263	BGF65-8-1	65	161	45	2900	DN100
264	BGF85-1-1	85	14	5.5	2900	DN100
265	BGF85-1	85	20	7.5	2900	DN100
266	BGF85-2-2	85	28	11	2900	DN100
267	BGF85-2	85	42	15	2900	DN100
268	BGF85-3-2	85	49	18.5	2900	DN100
269	BGF85-3	85	64	22	2900	DN100
270	BGF85-4-2	85	72	30	2900	DN100
271	BGF85-4	85	86	30	2900	DN100
272	BGF85-5-2	85	93	37	2900	DN100
273	BGF85-5	85	109	37	2900	DN100
274	BGF85-6-2	85	115	45	2900	DN100
275	BGF85-6	85	130	45	2900	DN100
276	BGF120-1	120	18	11	2900	DN125
277	BGF120-2-2	120	28	15	2900	DN125
278	BGF120-2-1	120	34	18.5	2900	DN125
279	BGF120-2	120	40	22	2900	DN125
280	BGF120-3-2	120	49	30	2900	DN125
281	BGF120-3-1	120	55	30	2900	DN125
282	BGF120-3	120	61	30	2900	DN125
283	BGF120-4-2	120	69	37	2900	DN125
284	BGF120-4-1	120	76	37	2900	DN125
285	BGF120-4	120	81	45	2900	DN125
286	BGF120-5-2	120	90	45	2900	DN125
287	BGF120-5-1	120	97	45	2900	DN125
288	BGF120-5	120	101	55	2900	DN125
289	BGF120-6-2	120	110	55	2900	DN125
290	BGF120-6-1	120	118	55	2900	DN125
291	BGF120-6	120	123	75	2900	DN125
292	BGF120-7-2	120	130	75	2900	DN125
293	BGF120-7-1	120	137	75	2900	DN125
294	BGF120-7	120	145	75	2900	DN125
295	BGF150-1-1	150	12	11	2900	DN125
296	BGF150-1	150	18	15	2900	DN125
297	BGF150-2-2	150	27	18.5	2900	DN125
298	BGF150-2-1	150	35	22	2900	DN125
299	BGF150-2	150	40	30	2900	DN125
300	BGF150-3-2	150	49	30	2900	DN125
301	BGF150-3-1	150	56	37	2900	DN125
302	BGF150-3	150	63	37	2900	DN125
303	BGF150-4-2	150	70	45	2900	DN125
304	BGF150-4-1	150	77	45	2900	DN125
305	BGF150-4	150	84	55	2900	DN125
306	BGF150-5-2	150	92	55	2900	DN125
307	BGF150-5-1	150	99	75	2900	DN125
308	BGF150-5	150	106	75	2900	DN125
309	BGF150-6-2	150	113	75	2900	DN125
310	BGF150-6-1	150	120	75	2900	DN125
311	BGF150-6	150	130	75	2900	DN125

Product Material & Structure

Main Components of BGF Series Pump
No.	Name	Material
1	Motor	Copper Windings/Carbon Steel
2	Coupling	Carbon Steel
3	Motor Coupling Frame	Cast Iron
4	Pump Body	SUS304
5	Impeller	SUS304
6	Guide Vane	SUS304
7	Shaft	Stainless Steel
8	Bearing	Bearing Steel
9	Mechanical Seals	Graphite/Silicon Carbide
10	Base	Cast Iron

Packaging & ShippingCompany Profile
GUANGZHOU BAIYUN PUMP GROUP CO.,LTD. is a large-scale high-tech enterprise group integrating research and development, design, manufacturing, sales, installation and service of various pumps, water supply equipment,water treatment equipment, environmental protection equipment,intelligent control equipment, intelligent water systems.The group owns 5 manufacturing bases. It is a well-known enterprise in the domestic pump industry and a leading pump enterprise in Guangdong province.
FAQ

1.Q: Are you trading company or manufacturer ?

A: We are factory.Base on Guangzhou City in China.

2.Q: How long is your delivery time?

A: Generally it is 3-4 weeks for regular product. Delivery time of OEM/customized product will be provided along with quotation.

3.Q: What is your minimum order quantity(MOQ)?

A: 1 set

4.Q:What payment term do you prefer?

A: We usually do 30% T/T deposit ,70% balance before shipment.

---

>> Single Yarn Sizing Machine up to 12 spindles with customized
>> Superfine Grinder Machine Wood Sawdust Flour Machine Wood Powder Machine
>> TM-8812 PVC Gauge Thickness Plastic Digital Thickness Gauge,Gauge Thickness Steel
>> Disposable BBQ Skewer/ Bamboo Stick/Meat Bamboo Skewers
>> Hot Sell 836 Corrugated and 840 Trapezoidal Double Layer Glazed Sheet Tile Roll Forming Machine for Building Material
>> Other performance parts auto spare parts car accessories engine bus air conditioning sensor 1002 temperature sensor
>> Rotovap lab short path distillation equipment china 50L
>> Popular Wholesale High-Quality Portable Basketball Goal Hoop Basketball Training System Basketball Stand
>> DIN 7981 Zinc Plated Galvanized Phillips Drive Cross Recessed Type Ab Thread Carbon Steel Stainless Steel 304 316 Pan Head Self Tapping Screw
>> Portable Kids Travel Tray for Toddlers
>> 5-100 T/H coke coal clay mini lab double dual two roller crusher price
>> Magnetic Stirrer (SH) , Lab Instrument, Low Price
>> Manufacture Factory Price V Type Powder Mixing Blender, Mixing Machine Chemical Machinery Equipment
>> Multifunction High Quality Webbing Metal Tail Clip
>> Jib Crane Pneumatic Vacuum Glass Sucker Carrier Lifter Sucker Glass Machine
>> American Uniform Tactical Pants Camouflage Hunting Combat Jacket Suit Tactical Uniform
>> Temporary HDPE Plastic Truck Road Mat Track Mats Used Ground Protection Mats
>> CAT 590-5658 CARTRIDGE GROUP Caterpillar590-5658 10R-8225 TRACK-TYPE TRACTOR D11R
>> Maike 850L Stainless Steel Emulsification Reactor Bioreactor Mixing Tank
>> Mini IR Sensor Module Pyroelectric Infrared PIR Motion Human Sensor Detector Microwave Motion Sensor Module
