Product Description

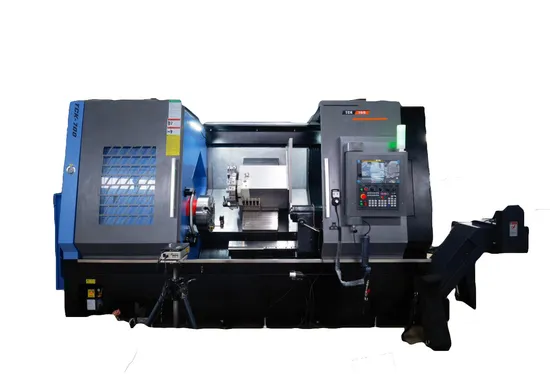

Slant Bed and Linear Guide Way CNC Lathe TCK700-fanuc efficient cutting centers (1) The 45 ° inclined bed and the base are integrally cast and formed, and the high-strength cast iron is cast. (2) Both X and Z axes adopt high precision, high load capacity and high reliability linear rolling guide rails. (3) The main shaft adopts the combination of the first three and the second two of the large diameter precision angular contact ball bearings, or the combination of the large diameter precision angular contact thrust ball bearings and double row cylindrical roller bearings. (4) The X - and Z-axis ball screws adopt the structure of pre tensioned inner circulating nuts. (5) The side chain plate chip conveyor is adopted. (6) The clamping and loosening of hydraulic chuck can be controlled by foot, which is convenient and fast.
Product main technical specification:
Item | UNIT | Model No.: TCK700 |
THE SCOPE OF WORK |
Maximum swing diameter on the bed | mm | 780 |
Maximum swing diameter of carriage | mm | 500 |
Turning length | mm | 1000/1500/2000/300 |
MECHANICAL SPINDLE |
Spindle speed | rpm | 2500/1800 |
Main motor power | kw | 22-26KW |
Maximum output torque | NM | 2200 |
Spindle nose specification | / | A2-8 | A2-11 |
Spindle diameter | mm | 88 | 105 | 132 |
Spindle through hole diameter | mm | 75/ | 91 | 115 |
Chuck size | inch | 12/15/18/21 |
Turret |
Type | | 12T servor |
Specification of external tool holder | mm | 32*32 |
Maximum boring bar diameter | mm | 50 |
Driven tool speed of rotation | rpm | 6000 |
Driven tool power | KW | 5.5-7.5 |
TAILSTOCK |
Tailstock type | / | Hydraulic programmable |
Tailstock sleeve diameter | mm | Φ150 |
Tailstock sleeve travel | mm | 200 |
Taper of taper hole of tailstock sleeve | / | MT5 |
FEED AXIS |
X axis travel | mm | 350+20 |
Y axis travel | mm | ±75 |
Z axis travel | mm | 1000/1500/2000/3000 |
Fast moving speed X/Z | M/min | 16/20 |
Servo motor torque X/Y/Z | KW | 3/3 |
Positioning accuracy X/Z | | 0.008/0.011 |
Repeat positioning accuracy X/Z | | 0.004/0.005 |
Total electrical capacity | KVA | 30/35 |
Processing length Machine weight kg Machine size mm |
1000mm | 7300/8000 | 4500X2300X2550mm |
1500mm | 8800/9800 | 6200X2300X2550mm |
2000mm | 10300/11500 | 6500X2300X2550mm |
3000mm | 12500/14300 | 7500X2300X2550mm |
Main accuracy
Inspection items | Factory standard |
Machining accuracy | IT6 |
Roundness of work piece | 0.0025mm/Ф75 |
Consistency of machining diameter | 0.010mm / 150mm |
Work piece flatness | 0.010mm/Ф200mm |
Surface roughness of machined work piece | Outer circle Ra1.6 μ M |
Arc surface and cone surface ra3.2 μ M |
