High-Precision V3 Graphite CNC Machining Center with Fanuc Control

Product Description

Product Description
Product Parameters

Description		unit	specification
Travels	Xx YxZ	mm	500x600x400
	Distance from spindle end (3 axis)to worktable	mm	50~450
Worktable	Worktable size	mm	600x500
	Worktable size		400
Spindle	Spindle taper		HSK-E40
	Speed range	rpm	300~30,000
	Spindle power	kW	11/7.5
Speed	Rapid speed	mm/min	36,000
	Cutting speed	mm/min	1~36,000
Auto Tool	Tools capacity		20
	Tool diameter /length	mm/mm	60/170
	Max.tool weight	kg	3.0
Power Supply	Input voltage	V	AC380V ,50/60 Hz
	Main power capacity	kVA	52
Gas supply	Pressure	MPa	0.5~0.8
	Consumption	L/min	400
Accuracy	Positioning	μm	±1.5μm
	Repeatabiity	μm	±1.0μm
Machine Diametion	Width x Depth	mm	2135x2185
	Height	mm	2,900
	Weigh	kg	8000
Dust Collector	Air volume	kg	45m³/min at-0.64kPa
	Equipment power	kW	2.2

Standard proximity	Optional proximity

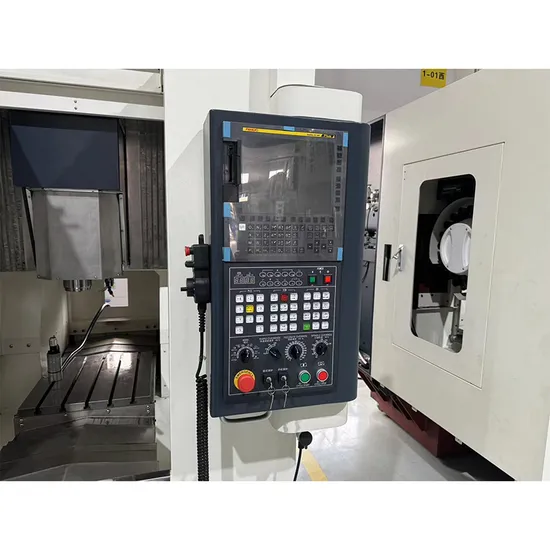

1.Fanuc series 0I model f plus contoller	17. Grating feedback(x/Y/z)
2.Spindle temperature controller	18.Blowing through the spindle
3.Screw temperature controller	19.Interface of 4th axis rotary table
4.Third floor signal lamp	20.4+1 axis tilt rotary table interface
5.Graphite dust colector/dust colector bare (grapbite products)	21.Automatic tool length measuring device
6.Cooling water tank (copper products)	22.Front automatic door
7.Hood door interlock	23.Right automatic door (operator facing direction)
8.Automatic blowing	24.Automatic door in the back
9.Automatic grease lubrication	25.Robot interface
10.Potable manual pulse generator with hand wheel button	26.IOT system
11.Linear interpolation positioning	27.Spindle oil temperature monitoring
12.User memory CF card 4G 8g 16g 32g	28.Compressed air monitoring
13.1000 program login	29.Motor power monitoring
14.Tool offset storage type C	30.Built in camera
15.Tool offset 400 pairs	31.Loading and unloading robot
16.Automatic power off/energy saving mode

Our Advantages
Detailed Photos
Company Profile
Packaging & Shipping
Certifications
FAQ
Q1: How is the warranty?
A1: Warranty time is 12months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 quality management system. ISO14001 Environmental Management System and OHSAS18001 International Occupational Health and Safety Management System. Most products have passed European and American safety standards certification, including CE, GS, EMS&UL. 90% of the products are exported to more than 60 countries and regions worldwide and have always won a high reputation. Therefore, you can rest assured of our high-quality products and the best service.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
