Product Details
Product Description
Product Description

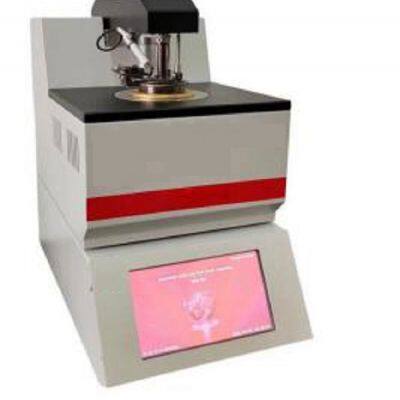

Automatic Pensky-Martens Closed Cup Flash Point Tester（PMCC Method）
Product Model: JF261Z
Product Introduction
The tester adopts the standard ASTM D93 and ISO2719 test methods, and uses microprocessor technology and PID temperature control technology. The heating rate is fast, the temperature is more controlled, and the test results are more accurate. The large LCD screen replaces the redundant design of the original RS232 interface, the operation is simpler and the instrument is more practical. The instrument has a high degree of automation and strong man-machine dialogue capabilities. It has automatic atmospheric pressure correction, automatic lifting, automatic heating, switching, automatic lid opening and ignition, automatic end point detection and automatic printing of test results, automatic air cooling, etc., so that the entire testing process is automated, and the temperature exceeds the limit and automatically stops the detection.
Technical Parameter
1. Applicable standards: ISO2719, ASTM D93, DIN51751
2. Display mode: LCD large screen display
3. Display content:
① Control temperature and expected flash point setting temperature.
② Failure prompt screen.
③ Each model parameter and air pressure setting.
4. Measuring range: Rt～400℃
5. Measuring Accuracy: 0.1℃
6. Cooling method: Forced air cooling
7. Temperature Sensor: PT100
8. Operating temperature: 10～55℃
9. Operating humidity: 30～80%
10. Accuracy: ≤104℃±1℃ ≥104℃±2℃
11. Repeatability: Flash point ≤104℃, error ±1℃
Flash point ≥104℃, error ±2℃
12. Electricity source: AC 230V/50,60Hz
13. Power consumption: 380VA
14. HS Code: 9027899090
Main Feature
1. JF261Z is automatically controlled by a microcomputer, and the entire test process and measurement data printing are performed automatically.
2. Large-screen English interface, the screen displays the test temperature, oil product number, test time, etc., and the entire test process is clear at a glance.
3. The micro-printer prints the results, and the cost is low.
4. The temperature is raised by a single-chip microcomputer program to ensure the accuracy of the results.
5. After the experiment, the instrument can be forced to air-cool automatically.
6. The flame size can be adjusted by itself.
7. Automatic lifting system for easy operation.
8. The shell is made of cold-rolled steel plate, and the surface is electroplated and sprayed, which is easy to clean and anti-corrosion.
9. Both manual and automatic operations can be performed during the test (manual or automatic separate test can also be selected).
10. Correction function: correction of current date, time, temperature and current atmospheric pressure.
11. The instrument has a protection program and a self-diagnosis program.
12. The main electrical components of the control department and the measurement department are imported components to ensure the reliability and stability of the instrument.
13. The instrument has a compact structure, small size and beautiful appearance.
14. High degree of automation: Set the flash point parameters according to the operation mode on the LCD screen, press the "Start" button, and the whole test process will be carried out automatically.
Q: What services are supported?
A: Free lifetime online technical services are supported.
2.Q: How long is the warranty period of the equipment sold?
A: The warranty is for twelve months
3.Q: How long is the delivery time?
A: Within 3 working days after receiving the down payment for the products in stock, and the specific delivery time depends on the order quantity and products.
4.Q: What is the minimum order quantity?
A: For the equipment, the minimum order quantity will be 1 set. For the lab parts, please contact us for final confirmation.
5.Q: What’s your transportation?
A: Express, air, sea transportation are supported, and appointed forwarders are also supported.
6.Q: Do you accept customization service? Can I have my logo on the machine?
A:Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine.
7.Q: How to install and use the product?
A: Operating instructions or video will be sent to you online or by email. Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use.
8.Q: What’s the trade term and delivery term?
A: Most of the common trade terms are supported, like CIF, FOB, CFR and so on . We have ordinary instruments in stock, the delivery time is 1-7 working days. If there are not in stock, the delivery time is 15-30 working days after the down payment. If you are in urgent, we can consider making a special arrangement for you.
>>
