Automatic One Color DIP Canvas Shoe Injection Moulding Machine

Product Description

>> Description
Product:Suitable for various kinds of shoes such as canvas shoes and sport shoes.
Raw Material:Suitable for all kinds of thermoplastic raw materials, foaming or non-foaming, such as PVC and TPR.
>> Machine Features
1. All oil circuits are controlled proportion pressure to coordinate with computer digital feeding system.
2. Hydraulic compare with vertical straight locking device for perfect tightness with the least burr, to reduce manufacture cost.
3. Coordinated with electric and hydraulic structure and unique braking device to make rotary turn fast and set precisely.
4. Special design of mechanical butter to coordinate with hydraulic multi-control, it avoids the hitting between injection gate and mould, also keeps standard touching pressure to extend mold serving life.
>> Machine specifications

Machine model			JL-258
Mould-clamping Unit
Work station			12,16,20
Shoe last trip	MM		60
Shoe last height	MM		210-260
Mould dimension	MM		340*80*60
Clamping mould style			V
Injection Unit
Injector	SET		1
Screw diameter	MM		70/75
Screw L/D ratio	L/D		20
Max.injection volume	cm3		650-1000
Injection pressure	mpa		5.0
Screw rotation speed	R.P.M		0-200
Electricity Consumption
Heating power of injector		KW	9
Hydraulic unit motor		KW	15
Total power		KW	24
Temperature control		Section	4
Power consumption per hour		Kw/h	15-20
Dimension and Weight			20 Stations
Machine dimension	(L*W*H)MM		6200*3600*2500
Machine weight	KGS		9000
*Note:Above data only for reference.

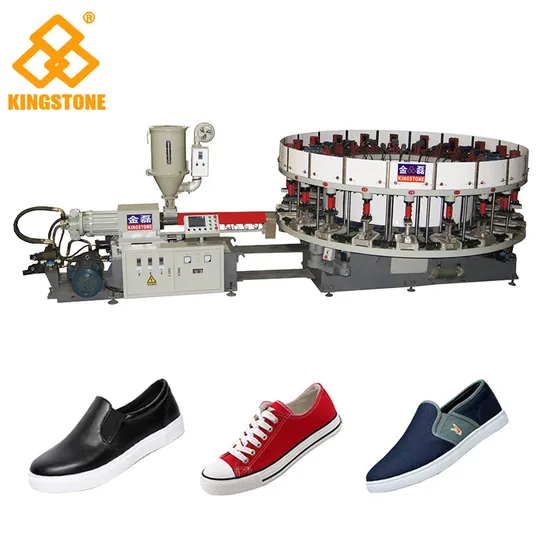

>> Machine Pictures
>> Machine Drawing
>> Finished Products
Package & Shipping
The machine need 40HQ container .

---
