Welcome to visit

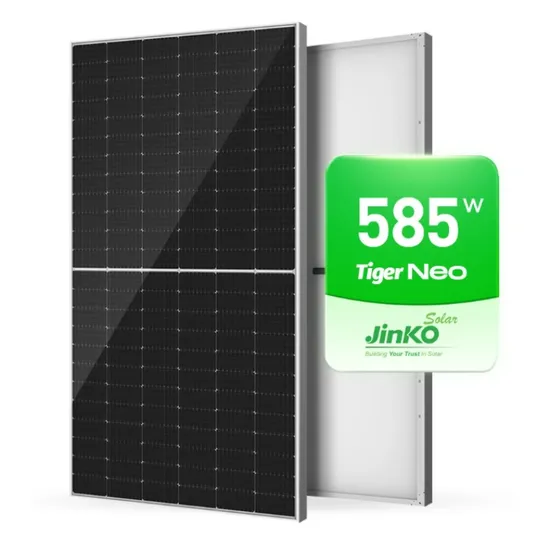

580W 585W 590W 595W 600W 605W PV Photovoltaic Solar Panel Half Cells

US$0.12
20,000-199,999 watt
US$0.11
200,000-1,999,999 watt
US$0.08
2,000,000+ watt

Basic Info.

Model NO.
72HL4-(V)580-605 Watt
Number of Cells
144 (72*2)
Application
Industrial
Condition
New
Certification
EST, ISO, CB, CE
Material
Monocrystalline Silicon
Selling Units
Single Item
Type
Topcon; N-Type
Frame
Anodized Aluminium Alloy
Packing
720PCS/40hq
Efficiency
22%-24%
Max.Power
605watt
Single Gross Weight
27.000kg
Dimensions
2278*1134*30 mm
No. of Cells
144 (72×2)
Panel Efficiency
22.84%
Transport Package
Carton
Specification
2278*1134*30MM
Trademark
Jinko
Origin
Anhui China
HS Code
8541430000
Production Capacity
50000 Piece/Day

Product Description

Products Description Advantages of Tiger Neo Module 1.Ultra-high Power Generation 2. Higher Bifacial Gain
3. Enhanced Reliability
4. Lower LID / LETID
5. High Compatibility
6. Optimized Temperature Coefficient
7. Lower Operating Temperature
8. Optimized Degradation
9. Outstanding Low Light Performance
10. Exceptional PID Resistance Mechanical Characteristics
Cell Type N -type Mono-crystalline
No. of cells 144 (72×2)
Dimensions 2278×1134×30 mm
Weight 27.0 kg
Front Glass 3.2mm, Anti-reflection Coating, High Transmission, Low Iron, Tempered Glass
Frame Anodized Aluminium Alloy
Junction Box IP68 Rated
Protection Class Class II
IEC Fire Type Class C
Connector Type JK03M/MC4/Others
Output Cables 4.0 mm2 (+): 400 mm , (-): 200 mm or Customized Length
Specifications (STC)
Maximum Power Pmax [Wp] 580 585 590 595 600 605
Maximum Power Voltage Vmp [V] 43.35 43.53 43.71 43.88 44.06 44.23
Maximum Power Current Imp [A] 13.38 13.44 13.50 13.56 13.62 13.68
Open-circuit Voltage Voc [V] 52.31 52.47 52.63 52.79 52.95 53.11
Short-circuit Current Isc [A] 14.01 14.07 14.13 14.19 14.25 14.31
Module Efficiency STC [%] 22.45 22.65 22.84 23.03 23.23 23.42
Power Tolerance 0 ~ + 3 %
Mechanical Characteristics
Cell Type N -type Mono-crystalline
No. of cells 144 (72×2)
Dimensions 2278×1134×30 mm
Weight 27.0 kg
Front Glass 3.2mm, Anti-reflection Coating, High Transmission, Low Iron, Tempered Glass
Output Cables 4.0 mm2(+): 400 mm , (-): 200 mm or Customized Length
Application Conditions
Operating Temperature -40 °C ~ +70°C
Maximum System Voltage 1000/1500 VDC (IEC)
Maximum Series Fuse Rating 25 A
Packaging Configuration
Pallet Dimensions 2308×1120×1249 mm
Packing detail
(Two pallets=One stack)
36 pcs/pallets, 72 pcs/stack,720 pcs/ 40'HQ Container
