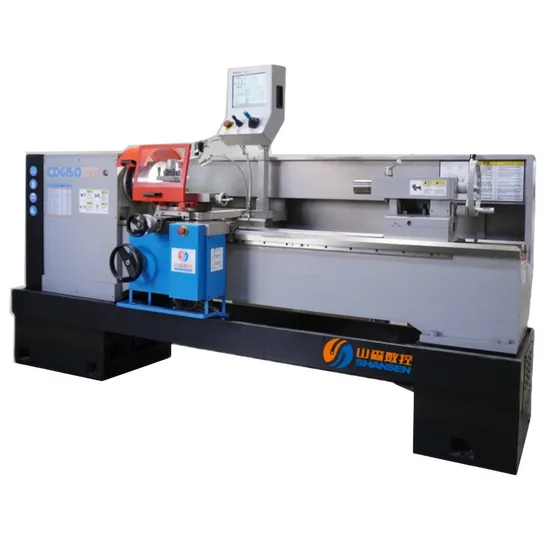

Lathe Wide Bed Machine Tool Lathe 4-Way Tool Station Turning Metal Lathe

US$9,900.00
1 Piece
US$9,800.00
2+ Pieces

Basic Info.

Model NO.
CD6150-1500
Type
Horizontal Lathe
Processing Accessory
Chuck Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Four-Station Tool Holder
Power Source
Servo Motor
Controlling Mode
Lathe Controller
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE
Condition
New
Model No.
CD6150-1500
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventio
Processing Precision
0.01~0.02(mm)
Numerical Control
CNC/Mnc
Swing Over Bed
500mm
Swing Over Carriage
290mm
Center Height
250mm
Max. Workpiece Length
1500mm
Max. Processing Length
1450mm
3-Jaw Chuck Diameter
250mm
Packing Size
3150*1400*2100mm
Transport Package
Box
Specification
Product size2930/1145/1740mm
Trademark
SHANSEN CNC
Origin
Tengzhou, Shandong, China
HS Code
84581900

Packaging & Delivery

Package Size
3150.00cm * 1400.00cm * 2100.00cm
Package Gross Weight
2200.000kg

Product Description


SHANSEN Product Description
ltems Unit MOdel CD6150-1500
Swing over bed mm 500
Swing over carriage mm 290
Center height mm 250
Max. workpiece length mm 1500
Max. processing length mm 1450
3-jaw chuck diameter mm 250
Speed ranges rpm 16-1600
Spindle bore mm 82
Spindle taper mm Metric90
Spindle nose C8
Top slide travel mm 150
Cross travel (X axis) mm 260
Longitudinal travel (Zaxis) mm 1500
Number of stations 4
Tool shank size mm 25*25
Quill travel mm 160
Quill diameter mm 75
Quill taper MT5

SHANSEN Company
Founded in 2001, Shandong SHANSEN CNC Technology Co., Ltd. is the vice chairman of China CNC System Association, the chairman of Tengzhou City Machinery Industry Association, the specialized, high-end and innovation-driven little giant, the national high-tech enterprise, the double soft enterprise, with a strong R&D team, complete technical equipment and technology means. We have been operating according to ISO9001 quality management system and strictly implementing 6S site management. Up to now, we have 80,000 square meters of factory buildings, with an area of 180mu. The company's main products include: CNC system, human-machine interface, Intelligent Circuit Board, oil mist collector, safety door switch, relay module, cable separator module, hand-held pulse generator, cable harness, warning lights, LED work lights, electronic lathe and so on, counting up to more than 20 kinds of products.


FAQ
1.What type of company are you?
We are a manufacturer.
2.What can you buy from us?
Electronic lathe ,Terminal Block Module, Relay Module, Cable, LED Light, Sensor, Control Power Box Body, Push Button, Switchand Other Industrial Automation Control Products.
Please contact us if you do not find the product you want.
3.How about the quality of the products?
We can provide one year warranty for you and we have the certification of CE etc.,
