US$0.50-50.00
|
1 10 pcs
(MOQ)
|
Basic Info.
Specification
24x 3.2/3.6x 13(14)
Origin
Putian, Fujian, China
Production Capacity
300000 Pieces/Month
Product Description

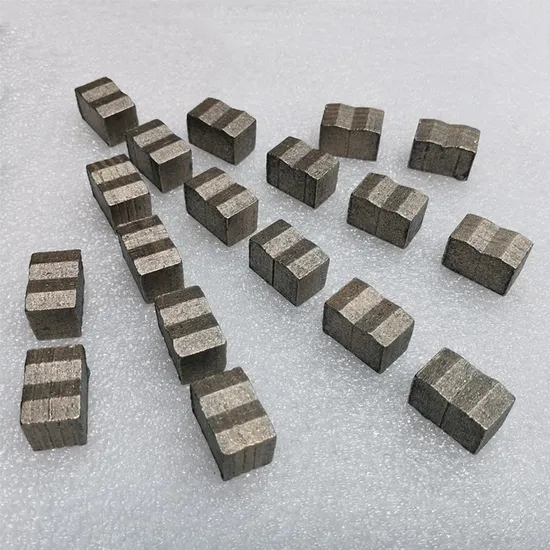

Diamond Segment for granite marble cutting saw blade1) High quality raw materials, choose high strength diamond single crystal and high quality metal matrix (Co, Ni, Wu, Ti, Cu-Fe, etc.).
2) The processing technology is mature, the chemical bond formed after sintering can reduce threshing, improve the edge, change the single grinding to the combination of grinding and cutting edge, optimize the sawing performance.
3) Product sharpness is good, high efficiency, high wear resistance, prolong the service life.
4) All kinds of stone materials have targeted professional formula, suitable for cutting stone of different hardness.
| Product | Diameter | Steel Core | Segment | Segment | Application |
| Name | (mm) | Thickness(mm) | Dimension(mm) | Number |
| Slab Cutting Segment For Stone | φ350 | 2.2/2.4 | 24x 3.2/3.6x 13(14) | 34 | Granite, Marble, Basalt, Volcanic, Lava Stone, Andesite, Travertine, Limestone, Sandstone, Quartz, Artificial Stone, Microcrystal Stone |
| φ400 | 2.6/2.8 | 24x 3.8/4.2x 13(14) | 38 |
| φ450 | 2.8/3.0 | 24x 4.2/4.6x 13(14) | 42 |
| φ500 | 2.8/3.0 | 24x 4.4/4.8x 13(14) | 48 |
| φ600 | 3.6 | 24x 4.8/5.2x 13(14) | 58 |
| φ700 | 4 | 24x 5.4/5.8x 13(14) | 68 |
| φ800 | 4.5 | 24x 5.6/6.0x 13(14) | 80 |
| Block Splitting Segment For Stone | φ1200 | 5.5 | 24x 6.8/7.2x 13(14) | 80 |
| φ1500 | 6.5 | 24x 8.0/8.4x 13(14) | 92 |
| φ1600 | 7.2 | 24x 8.6/9.0x 13(14) | 108 |
| φ2000 | 8 | 24x 9.4/10x 13(14) | 128 |
| φ2500 | 9 | 24x 10.6/11x 13(14) | 140 |
| φ3000 | 10 | 24x 11/11.6x 13(14) | 160 |
| Other specifications are available upon request. |
| Silent and non-silent blades are available for choice. |
| Block Mining Segment for Stone quarrying |
| Diameter | Steel Core | Segment | Segment | Application |
| (mm) | Thickness(mm) | Dimension(mm) | Number |
| φ2000-2800 | 9-10 | 22.5x 11.6/12.6x 14(15) | 128-150 | Granite, Marble, Basalt, Volcanic, Lava Stone, Andesite, Travertine, Limestone, Sandstone, Quartz |
| φ3000-3600 | 9-10 | 22.5x 12.6/13.6x 14(15) | 160-180 |
| φ2000-2800 | 9-10 | 22.5x 13/14x 14(15) | 128-150 |
| φ3000-3600 | 9-10 | 22.5x 14/15x 14(15) | 160-180 |
| φ4000-5000 | 11-11.5 | 22.5x 14/15x 14(15) | 198-228 |
>>
