| Inherent Frequency | 1.0-2.0Hz, vertically; 1.0-1.5Hz, horizontall |
| Vibration Isolation Structur | Air springs & pendulum rod |
| Leveling Typ | Automat |
| Vibration Damping Typ | Porous quasi-laminar flow damping element with diffuse |
| Total Table Heigh | 800mm |
| Working Air Pressur | 0.2-0.4MPa |
| Compressed Air Sourc | Silent compressor (noise level) <50dB |
| Vibration Isolating Efficiency | 8692%@5Hz, 9095%@10Hz, vertically 8494%@5Hz, 9298%@10Hz, horizontall |
| Re-leveling Accurac | ±0.1mm |
| Table Top Flatnes | ≤0.05mm/m² |
| Surfaced Roughnes | ≤0.8μm, matt surface finis |
| Isolator Height Adjustment Rang | ±10mm |
| Mounting Holes | M6 tapped holes on 25mm grid. Hole to edge 12.5mm or 37.5mm |
| Top Skin | 5mm |
| Bottom Skin | 4mm |
| Material | Stainless Steel |

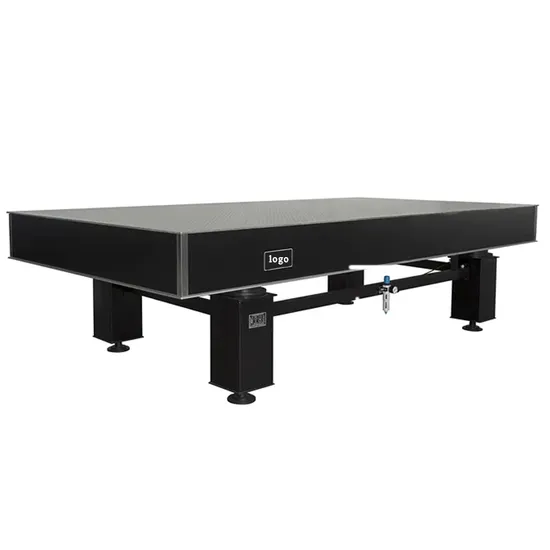

Products Description
| Model | Dimension(mm) | Inherent Frequency | Height(mm) | Load capacity(Kg) |
| ZDT-B09-06 | 900×600 | Vertical:2.0Hz Horizontal:2.0Hz | 800 | 135 |
| ZDT-B10-08 | 1000×800 | Vertical:2.0Hz Horizontal:2.0Hz | 800 | 200 |
| ZDT-B12-09 | 1200×900 | Vertical:2.0Hz Horizontal:2.0Hz | 800 | 270 |
| ZDT-B15-10 | 1500×1000 | Vertical:2.0Hz Horizontal:2.0Hz | 800 | 375 |
| ZDT-B18-10 | 1800×1000 | Vertical:1.8Hz Horizontal:2.0Hz | 800 | 450 |
| ZDT-B20-10 | 2000×1000 | Vertical:1.8Hz Horizontal:1.8Hz | 800 | 500 |
| ZDT-B12-12 | 1200×1200 | Vertical:2.0Hz Horizontal:2.0Hz | 800 | 360 |
| ZDT-B15-12 | 1500×1200 | Vertical:2.0Hz Horizontal:2.0Hz | 800 | 450 |
| ZDT-B18-12 | 1800×1200 | Vertical:1.8Hz Horizontal:1.8Hz | 800 | 540 |
| ZDT-B20-12 | 2000×1200 | Vertical:1.8Hz Horizontal:1.8Hz | 800 | 600 |
| ZDT-B24-12 | 2400×1200 | Vertical:1.5Hz Horizontal:1.8Hz | 800 | 720 |
| ZDT-B30-12 | 3000×1200 | Vertical:1.5Hz Horizontal:1.8Hz | 800 | 900 |
| ZDT-B35-12 | 3500×1200 | Vertical:1.5Hz Horizontal:1.8Hz | 800 | 1050 |
| ZDT-B40-12 | 4000×1200 | Vertical:1.2Hz Horizontal:1.8Hz | 800 | 1200 |
| ZDT-B50-12 | 5000×1200 | Vertical:1.2Hz Horizontal:1.5Hz | 800 | 1500 |
| ZDT-B60-12 | 6000×1200 | Vertical:1.2Hz Horizontal:1.5Hz | 800 | 2000 |
