Njp5500 Customizable High Quality Fully Capsule Filler Automatic Capsule Filling Machine

Product Description

Njp5500 Customizable High Quality Fully Capsule Filler Automatic Capsule Filling Machine Provide Overseas After-Sale Service China Supplier

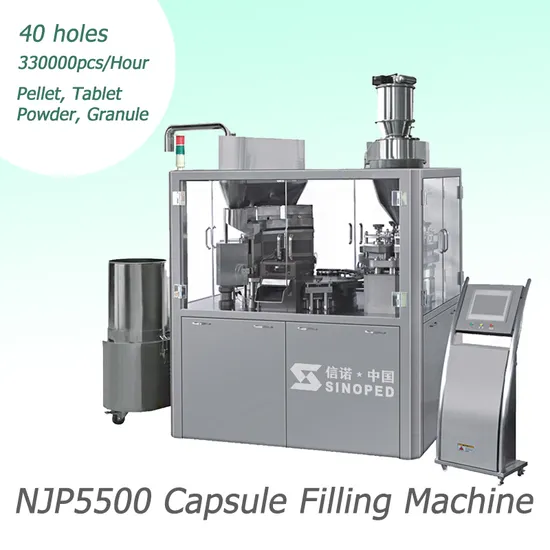

The NJP-5500 automatic capsule filling machine produced by our company is the innovative product of the third generation. It not only covers all the functions and effects of the domestic capsule filling machine of the same model, but also has four innovative technologies:
a. structure of the machine base has been improved;
b. turntable structure has been innovated;
c. filling structure has been innovated;
D. Finished capsule outlet structure has been innovated;
E. Device to separate the powder and defective capsule has been innovated, three of which has been issued the utility model patent certificate by the national intellectual property administration, PRC. The technologies innovations have improved significantly the operation efficiency, achieving a capsule separating rate of 99.99% and a qualified rate of finished capsule of 99.8%. The new machine is easier to maintain and operate, being well received by customers at home and abroad.

Model	NJP-5500C
Filling capacity	330000pcs/Hour
Weight	3000Kg
Dimension	1548×1313×2220
Power supply	380/220V 50Hz
Total power	12KW
Number of holes	40holes
Vacuum	120m3/h-0.02-0.06Mpa
Dust collector	24.5Kpa 210m3/h
Air compression	Air consumption12m3/h Pressure 0.3-0.4Mpa
Water source	1000L/H 0.3-0.4Mpa
Operating noise	<75DB(A)
Filling percentage	Empty capsule 99.9% filled capsule99.8%
Capsule size	00,0,1,2,3,4,5#, Safety capsule A-E
Filling accuracy	Western medicine ±3% Chinese medicine ±4%
Suitable for	Powder, Granule, Pellet, Tablet.

Exquisite details and ingenuity quality
------ Details
Fine workmansheep
The apppearance is nice and generous ,each part is made fine ,the error is small,the probabiliyt of error is samll ,the probability of capsules loading is mor than 99% ,and the measurement is accurate . Change mold
Fill different types of capsules and replace different types of molds.
New Powder Hopper
The new hopper adopts butterfly valve-type powder feeding, and is very suitable for drug powder with poor liquidity, including Chinese herbal medicine and Chinese patent drug, due to that its vibration unit equipped will force the powder to run down, which has solved problem of failing to feed in powder that often happens in the traditional screw feeding device because of the poor liquidity of powder.
Capsule Hopper
The loading condition can be seen via the observation holes. When capsules are used up, the machine will sound an alarm and stop automatically. Frame of capsule Separation Station
The newly designed frame of capsule separation station uses transmission of guide rail, enjoying higher precision and longer service life. Its closed design can prevent the defective capsule and dust from entering, ensuring a rapid and orderly capsule separation, as well as accurate capsule orienting. New Turntable
The new rotary table is designed fully enclosed and with concept of modularization. Its super low station designed, equipped with imported Silicone ring, provides a very good anti-dust effect. It can prevent drug powder from entering the rotary table's inner cavity, ensuring maintenance-free and lubrication charging-free for the inside part. It operates with high stability and accuracy, and meets the requirements of two-in-one filling process.Product Parameters Why choose us

---
