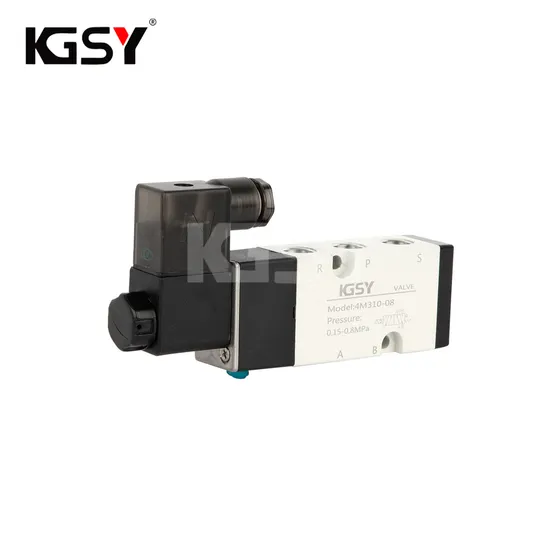

4m310-10 G3/8 5/2 Way Acting Type Single Coil Electric Flow DC24V Air Control Solenoid Valve Pneumatic Valve

Product Description

Product Description 4M310-08 solenoid valves 24v 5way 2 position electronic valve solenoid for oil
1.Internally piloted structure.
2 Structure in sliding column mode: good tightness and sensitive reaction.
3.Double control solenoid valves have memory function.
4. internal hole adopts special processing technology which has little attrition friction, low start pressure and long service
life.
5. No need to add oil for lubrication.
6. install in the side plate with the surface upward, which can be used by directly connecting with the actuators.
7.Affiliated manual devices are equipped to facilitate installation and debugging.
8.Several standard voltage grades are optional.

Specification
Mode	4M210-06 4M220-06			4M210-08 4M220-08		4M310-08 4M320-08		4M310-10 4M320-10
Fluid	Air (to be filtered by 40um filter element)
Acting	Internal pilo
Port size [Note1]	n=Out=1/8			In=1/4 0ut=1/8*		n=Out=1/4"		0=3/8 out=1/4"
Orifice size (CV) [Note4]	4M210-08,4M220-08 17.0 mm2(CV=1.0					4M310-10,4M320-10 28.0 mm²(CV=1.65)
Valve type	5 port 2 position
Operating pressure	0.15~0.8MPa(21~114 psi
Proof pressure	1.2 MPa(175 psi)
Temperature	-20~+70ºC
Material of body	Aluminum alloy
Lubrication [Note2]	Not required
Max.frequency [Note3]	5 cyclelsec					4 cyclelsec
Weight (g)	4M210:220 4M220:320					4M310:310 4M320:400
Note1]PTthread,G thread and NPT thread are available Note2]Once lubricated air is used,continue with same medium to optimise valve lifespan.Lubricants likelSO VG32 or equivalent are recommended Note3]The maximum actuation frequency is in the no-load state Note4]Equivalent orifice S and Cv are all calculated from the flow rate data.
Coil Specification
ltem		4M210,4M220,4M310,4M320
Standard Voltage		AC220	AC110V		AC24V		DC24V		DC12V
Scope of Voltage		AC-±15%,DC:±10%
Power Consumption		4.5VA	4.5VA		5.0VA		3.0W		3.0w
Protection Grade		P65 (DIN40050)
Temperature Classification		B Class
Electrical entry		Terminal,Grommet
Activating time		0.05 sec and below

---
