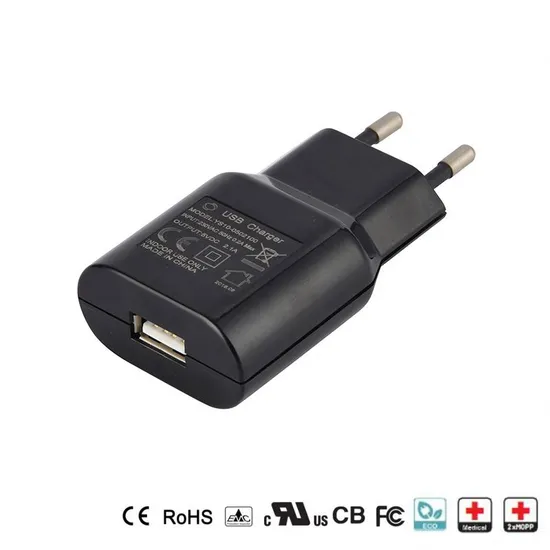

Factory 5V2a Adapter Medical USB Charger Adapter

Product Description

Factory Direct 5V2A Adapter Medical USB Charger Adapter
Product Description Features : 1. Univeral AC input/ Full range
2. Medical safty approved(2×MOPP)
3. Leakage Current: <50μA
4. Extremely low leakage current
5. Protection:Over load/Over voltage/Short circuit
6. Withstand voltage : 4KV
7. Life Warranty: 3 years
Applications:
- Blood glucose meter
- Blood pressure meter
- Medical Injection Equipment
- Medical ventilator
- Oral care equipment

Model:	YS10M-0502000
Power:	10W
Input:	AC100-240V
Output Voltage:	5V DC
Output Current:	0-2A
Inrush Current:	65 Amps max. at 240VAC/50Hz,full load
Leakage Current:	<50μA
No Load Power Consumption :	<0.5W
Protections:	Short Circuit /Over Current /Over Voltage/over temperature protection
Short Circuit Protection (SCP):	Protection to Zero Voltage
Over Voltage Protection (OVP):	≤Vout*150%
Over Current Protection (OCP):	110%-180%
Withstand voltage:	I/P-O/P 4kVAC
Working TEMP.:	-20°C-50°C
EMC standards:	EN55011 class B,EN61000-3-2,3 EN61000-4-2,3,4,5,6,8,11, EN61204-3, EN60601-1-2 medical level,FCC Part 15 class B, EAC TP TC 020
Safety standards:	ANSI/AAMI ES60601-1/ES60601-1-11,CAN/CSA-C22,TUV EN60601-1-11,EAC TP TC 004 approved
Dimension:	59*40*18mm

PRODUCT SHOW
MORE PRODUCTS



ABOUT YINGJIAO Yingjiao Electrical Co,Ltd. was established in 1995 and is dedicated to the designand development of all types of low voltage power adapters, LED drivers, utilizingscaled manufacturing and global sales to fully serve the world's electronic andelectric industries. The core products include switching & linear power adapters.battery chargers, transformers, LED drivers and completely customizable powersolutions, designed for use in telecommunications, IT equipment, consumerelectronic devices, security system, automation, medical equipments, smarthome, LED lights and much more.
Yingjiao owns independent high-frequency transformer and SMT workshops,along with 22 production lines for manufacturing & assembling, sell over 660million power supply products in the past years. Committed to total qualitymanagement through continuing improvement processes, including derating &reliability analytics testing, MTBF procedures are an integral part of our researchand development, with quality assurance management in support of ISO9001quality systems ensure that Yingjiao consistently offers the highest qualityproducts for our customers.
Yingjiao products comply with RoHS, PAHS, REACH and WEEE standards, AchieveCoC V5 and DoE Vl of efficiency level, obtained and maintained FCCTUV-GS, CBCSA,PSE, RCM, KC,EAC,NOM,IRAM,CE,EMC and CCC safetycertificates.
In addition to our full line of products, Yingjiao offers complete 0EM / ODMproduct development to meet your individual requirements.
