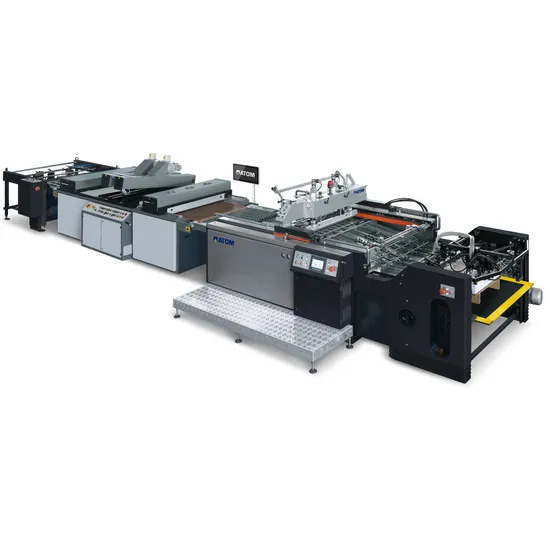

Tc72/92/105 Automatic Stop-Cylinder Screen Printing Machine

Product Description

Product Description

TC72/92/105 Automatic Stop-cylinder Screen Press 1. New designed patented machine, with advanced design and production technology, combine with German Japanese technology.
2. Adopts classical stop cylinder technology, equipped with heavy pneumatic squeegee system, the max. speed can be 4200sheets/hour.
3. It is suitable for screen printing of ceramic and glass decal, advertisement, package printing, brand, textile transfer,
electric etc. Detailed Photos

Machine frame with precision works and casting It adopts grey cast iron(HT250), found by polyester sand patterns, aging treatment, completed a one-time processing by imported large vertical type CNC, deformation little, guarantee of accuracy, ensure the long-term stable operatioN. Opened loading board Completed lifting steel loading board of feeder, can pull the sheet pile directly, load sheet much more easily and save operation time Heavy pneumatic squeegee system Integrated application of electrical, pneumatic, hydraulic technology, automatic control squeegee movement, the start printing point and end point can be set independently, the entire pressure e equilibrium stability, completely eliminates the disadvantages of the squeegee movement controlled by mechanical cam, to ensure the ink layer and definition of image constant stable whether any printing and printing speed Separated screen frame structure Screen frame can break away from transmission part and be pulled out, it is easy for adjusting the registration and feeding, meanwhile it is must safer and faster for cleaning of cylinder and screen, Opo sensors automatic detection system to ensure the reliability of the action and avoid rack breakage or damage of main drive Product Parameters

Model	TC-72	TC-90	TC-105
Max. sheet size	720x510mm	900x600mm	1050x760mm
Min. sheet size	350x270mm	350x270mm	560x350mm
Max. printing size	700x500mm	900x590mm	1050x750mm
Screen frame size	880x880mm	1140x1140mm	1300x1170mm
Sheet thickness	108-400g/m²	108-400g/m²	90-420g/m²
Printing speed	800-3600 PCH	800-3300 PCH	800-4200 PCH
Installation power	3P 380V 50Hz 10.5kw	3P 380V 50Hz 8.9kw	3P 380V 50Hz 10.7kw
Total weight	3550kg	3650kg	6600kg
Overall size	4050x2500x1680mm	3340x2580x1680mm	6700x3060x2050mm

Exhibitions and Samples
Company Profile

FAQ
1.Q : What about the price of the machine?
A:Pls contact with our sales manager to get quotation or pls send mail to us to get more information. 2.Q:How long is the warranty of the machines ?And other Service ? A: Warranty is 12 months after the machines arrive. Our engineer can provide service overseas if you need. And we also provide installation and operation training. 3. Q : How about your delivery time ? A:The delivery time is within 30-60 days depend on the different type or machine. Pls contact with us to learn more. 4.Q:What`s the price term and payment method? A:We usually use Fob, CIF and CFR. Payment method : 100 % T/T (30% deposit + 70% before shipment ) OR 100% L/C.

---
