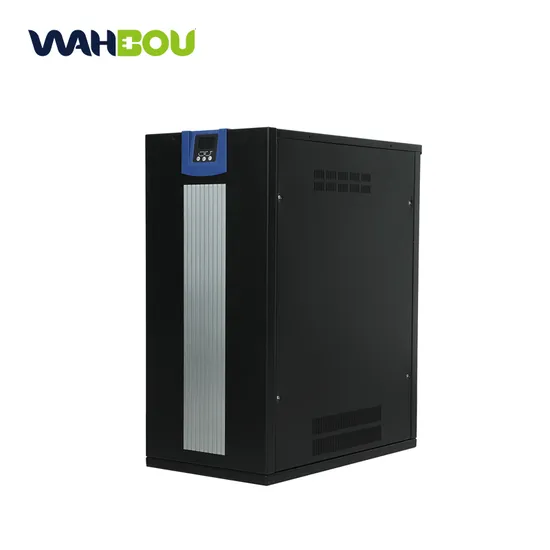

Low Frequency UPS 3 Phase in 1 Phase out High Power Td31-40kVA Online UPS Industry Use Uninterrupted Power Supply with Transformer 384VDC

US$2,850.00-2,950.00 1 Set (MOQ)

Basic Info.

Model NO.

TD31 40KVA

Protection

All of Overvoltage, Short Circuit, Overcurrent etc

Application

Industry

Classification

Lighting/Power

Standby Time

Long-acting Machine

Standby UPS

Sine Wave Output UPS

Output Capacity

Small Type

Equipment Mode

Decentralized

Brand

Wahbou

Input Voltage Range

220V +- 25%

Working Frequency Range

40-70Hz(Settable)

Output Power Factor

0.8

Battery Rated Voltage

192VDC

Transport Package

Neutral Carton Box

Specification

560x260x717mm

Trademark

WAHBOU or OEM

Origin

Guangdong, China

HS Code

8504402000

Production Capacity

100000 Sets/Year

Packaging & Delivery

Package Size

83.00cm * 52.00cm * 114.00cm

Package Gross Weight

285.000kg

Product Description

Low Frequency UPS 3 Phase in 1 Phase out High Power TD31-03 40kVA Online UPS Industry Use Uninterrupted Power Supply with Transformer
Our Advantages
Product Description
Product Parameters

Model		TD31 10KVA	TD31 15KVA	TD31 20KVA	TD31 30KVA	TD31 40KVA
Rated Power		10kVA/8kW	15kVA/12kW	20kVA/16kW	30kVA/24kW	40kVA/32kW
Input	Rated Voltage and Range	380Vac ±25%
	Input Form	3P4W+G
	Frequency Range	40Hz-70Hz (settable)
Bypass Input	Rated Voltage and Range	220Vac±25%
	Input Mode	1P2W+G
Output	Rated Voltage	220Vac
	Output Mode	1P2W+G
	Static Voltage Accuracy	±2%
	Dynamic Voltage Transient	≤9%
	Distortion of output voltage waveform	≤3%(liner),≤8%(non-liner)
	Power Factor	0.8
	Output Frequency	50Hz/60Hz
	Output Overload	105%±5%≤ Load: Overload warning; 105%±5%<Load≤125%±5%: Convert to bypass output after 2 mins; 125%±5%<Load≤150%±5%: Convert to bypass output after 30s; Load>150%±5%: Convert to bypass output after 500ms.
Battery	Rated Voltage	192Vdc			384Vdc
Environment	Operating Temperature	0ºC-40ºC
	Operating Humidity	20%-95% (non-condensing)
Dimension (LxWxH) mm		560x260x717	655x370x900	830x455x1055		830x515x1135
Weight		79.5kg	122kg	195kg	210kg	285kg

Detailed Photos
Company Profile
Certifications
Applications
Exhibition & Customer Visit
If any questions please contact our sales, and You are Welcom to visit us anytime!
