Natural Stone Cutting Machines Stone Block Cutting Machinery

Product Description

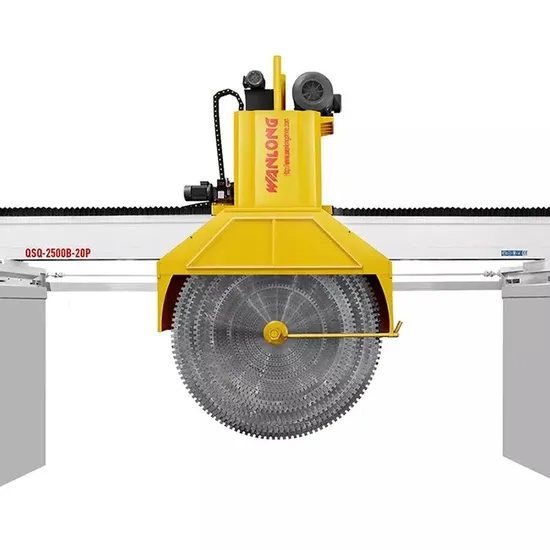

QSQ-2200/25000/3000 Bridge Multiblade Block Cutter
l It combines different diameters of blades working simultaneously as multiblade cutting.
l It has screw-rod lifting system and hydraulic lifting system for choice. T
l he crossbeam moves for feeding so that the table for block is not necessary ( which does not supply along with machine, only available upon request ).
l Heavy duty strcuture, logical control system, easy operation together with " Wanlong" blade give high production and also make the finish slab with flat surface, no tapper.
l It is also flexible in modification for Single blade cutting.


QSQ-2200 QSQ-2500 QSQ-3000

Max.diameter of blade	mm	2200	2500	3000
Max.No. of blades	pc	8	5	1
Recommended Blade Combination	mm	2200 2000 1800 1600 1400 1200 1000 800	2500 2000 1600 1200 800
Recommend saw blade thickness	mm	6.5	32	8.0
Main motor power	KW	45	45	37
Max.Cutting size(L x W x H)	mm	3200*1800*950	3000*1800*1100	2500*1800*1350
Overall dimensions (L x W x H)	mm	7300*3800*5500	7300*3800*5500	7300*3800*6100
Water consumption	m3/h	6	6	6
Approximate weight	Kg	10000	11000	12000

Packaging & Shipping
DELIVERY TIME:

35-45days as per produciton schedule and quanity.
if your order is in our stock, we can effect shipment once received your payment

PACKAGE:
Suitable for seaworthy container shipment

WARRANTY:
12 MONTHS

SHIPMENT WAY:
-by sea: can be Less than Container Load and Full Container Load; freight is according to the shiping company quoation to your seaport.
-you can consult us when you make inquiry.

Our Services
Service:
- fast deliver time: 7- 15 days.
to rough idea: most of order lead time is 7 days-10days.
-consistent quality control:
Raw material: have advanced device for diamond, powder ete inspection;
Production: production procedure been strictly controlled by quality controlled department;
Finshed product: All produced product has been inspetion and approved before shipment.
-any quality related problem that we are care and will solved for client.
SALES NETWORK


Europe:
Ukraine, Poland, Bulgaria, Romania, Czech, Yugoslavia,Latvia,
Lithuania,Sweden, Finland, Danmark, Spain, Greece, Turkey
South Asia:
India, Pakistan, Bengal, Sri lanka, etc
South East Asia:
Indonesia, Vietnam, Thailand
Mid East:
Iran, Saudi Arab, UAE, Syria, Lebanon, Israel etc
Africa:
Egypt, Nigeria, Kenya, Ethiopia, South Africa,
America:
USA, Canada, Mexico, Brazil, Venezuela, Chile, etc
Oceania:
Australia, New zealand

---
