Introduction:

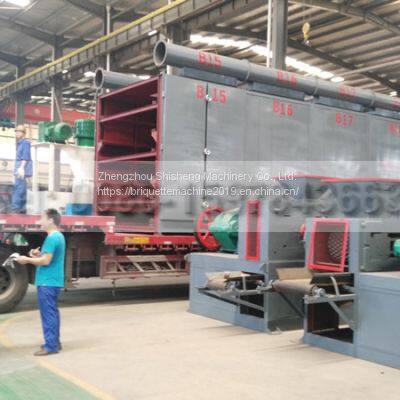

The mesh belt dryer is conceptually very simple. Product is carried through the dryer on conveyors and hot air is forced through the bed of product. It is often described as simply a conveyor in a box with hot air. The reality, however, is that the belt dryer is one of the most versatile dryers available. Few drying technologies can match the belt dryer’s ability to handle such a wide range of products. Products as varied in composition, shape, and size as coated breakfast cereals, nuts, animal feed, charcoal briquettes, and rubber can be dried in a conveyor dryer.
Advantage:
Themesh belt dryer is common continuous dryer equipment, it is widely applied in chemical, foodstuff, pharmacy, construction material, and electronic industry, and particularly it is adapt to dry the raw materials which have good air permeability and shaped in sheet, strip or
granule. For ointment stuff, the wisest way to dry it is: shaped that stuff first, and then drying it.
how to dry charcoal briquettes
When operation, air will be entered into the dryer and heated through heat exchanger. Being adapted scientific and reasonable cycle method, the hot air will pas through raw materials to be dried on the bed and carry out uniform heat exchange. Under the action of cycle fan, the hot air stream inside each unit of the dryer will carry out hot air cycle. Final air with Iow temperature and high damp will be out. The whole drying process with stably and high effect will be finished.
Technical Parameter:
Model
| 1001
| 1503
| 2203
| 2205
| 2208
|
Single Effective Working Length
| 22.5m
| 30.5m
| 36.5m
| 36.5m
| 36.5m
|
Floors
| 1
| 3
| 3
| 5
| 8
|
Effective Working Width
| 50m
| 105m
| 180m
| 180m
| 108m
|
Accumulation thickness of materials
| 100-200mm
| 100-200mm
| 100-200mm
| 100-200mm
| 100-200mm
|
Dry Capacity
| 1-2t/h
| 2-3t/h
| 8-10t/h
| 10-15t/h
| 20-25t/h
|
Moisture Content Before Drying
| 8-12%
| 8-12%
| 8-12%
| 8-12%
| 8-12%
|
Moisture Content After Drying
| 1.5-3%
| 1.5-3%
| 1.5-3%
| 1.5-3%
| 1.5-3%
|
Transfer Power
| 2 kw
| 2 kw
| 3 kw *3
| 5.5 kw *5
| 5.5 kw *4
|
Air Temperature requirements
| 180-250°C
| 180-250°C
| 180-250°C
| 180-250°C
| 180-250°C
|
Hot Air Temperature and Content Requirements
| ≤0.01kg/kg dry air
|
Company Profile
Zhengzhou Shisheng Machinery Co., Ltd.
The factory is located in Zhengzhou Economic and Technological Industrial Development Zone, covering an area of more than 130 acres. It has two standardized heavy-duty industrial plants with 10,000 square meters, more than 150 large and medium-sized metal processing, riveting and assembly equipment, and more than 130 online employees, including There are more than 30 management cadres and engineering and technical personnel with intermediate and senior titles. The company has successively introduced advanced technologies and processes from the United States, Germany, Japan, Australia and other countries, established an internationally advanced production line and a first-class modern testing base, and established a sand and gravel machine research room, a grinding machine research room, and a research room for mineral processing equipment room. The company has rapidly grown into a production and sales base of mining machinery in China with scientific management methods, manufacturing processes for excellence, and innovative manufacturing concepts. Do your best to continuously improve and make it increasingly international.
