High Efficient Plate Edge CNC Milling Machine

Product Description

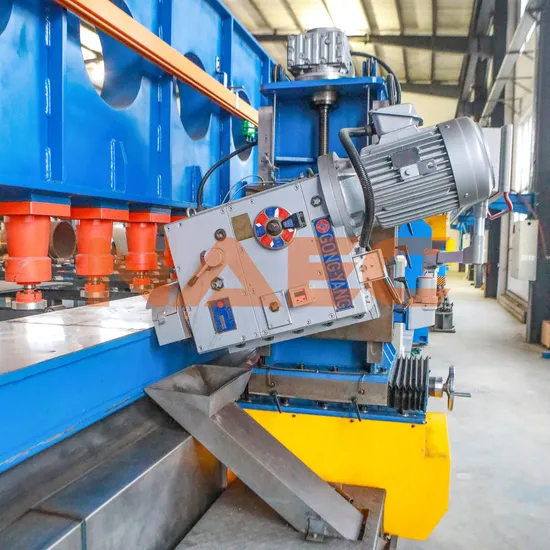

High Efficient Plate Edge Milling Machine (No Grantry Type)
Features:
1.Structure type: Gantry Type or No Gantry Type;
2.Machining mode: Single side or double side;
3.Beveling type: V, X, U, J type or transition bevel;
4.Bevel angle range: 45°;
5.Single head max. milling width in one time: >25mm;
6.Effective milling length in one time: 6m, 9m, 12m, 15m, 18m;
7. Milling speed: 0.1-1m/min.
AUTO series Plate Edge High Efficient Milling Machine is suitable for High speed plate milling, molding and beveling. It is suitable for various materials, such as carbon steel, stainless steel, alloy steel, etc. without vibrations and thermal effects during the machining. Its rapid speed is able to form high-quality surface and it has the advantages of low price, smooth surface, high efficiency, convenient operation and easy maintenance, equipped with imported heavy duty & high speed milling head. The efficiency can be improved nearly 10 times compared with traditional milling machine.
It can be widely used in Petroleum, Petrochemical, Chemical, Shipbuilding, Power Station, Refinery, Pressure Vessel, etc.
High speed plate milling, molding and beveling, it is suitable for various materials. Without vibrations and thermal effects during the machining, its rapid speed is able to form high-quality surface. The detailed features are as following:
1, Suitable for plate edge beveling, Max. Processing speed: 1M/min
2, We can design and supply edge beveling line with 1 plate/hr output
Pipe Spool Fabrication Machines

1		Pipe Cutting& Beveling All-in-one Machine >Suitable for pipes not larger than 8",max.thickness:20mm >Cutting efficiency:100times/8hrs >PLC control with automatic measuring to guarantee the same processing cycle >Widely used for small bore C.S/S.S production lines
2		High Speed Band-saw Cutting Machine >Three models available(16"type,24"type",48"type) >PLC system control;self-measuring function with precision:±0.5mm >Using hydraulic self-centering chuck >It only takes 6 minutes to cut a 24" pipe of 25mm thickness >Widely used for C.S/S.S production lines.
3		High Speed CNC Pipe End Beveling Machine >Automatic self-centering chuck >Single V,double V,U type bevel >Can be matched with pipe end turning devic >High speed beveling:for example,it only takes 2.5minutes to get a 37.5 degree bevel for a S.S pipe end(diameter :610mm,thickness:25mm) >Several models available:16",24",32",48"
4		Two / Multi- Axis CNC Flame/Plasma Cutting Machine >High efficient pipe cutting with automatic self-measuring function, pipe end beveling, intersection line profiling for both main and branch pipe. >Five/multi-axis cutting machine can profile more complicated outlines with various bevel type >Standard machine suitable for pipes nor larger than 24''
5		Multi-function Pipe Fitting-up Station >Suitable for flange,elbow,tee,reducer to pipe and special T-joint fitting-up. >Light-duty type(manual) and heavy-duty type(motorized) are available. >Different types available, 8" type, 24" type, 32" type, 48" type, 60" type
6		Automatic Pipe Welding Station >With two welding heads >TIG/MIG/SAW are optional >PLC system control & WPS programmed >Max. efficiency fo reach welding head can be 400D.I/8hrs even use TIG/MIG technology. >Different types available, 8" type, 24" type, 32" type, 48" type, 60" type
7		Conveyor Handling System >used for pipe convenient transporation during in pipe spool fabrication. >Its speed is adjustable between 2M to 20M/min.

For more information, please contact us, thank you!

---
