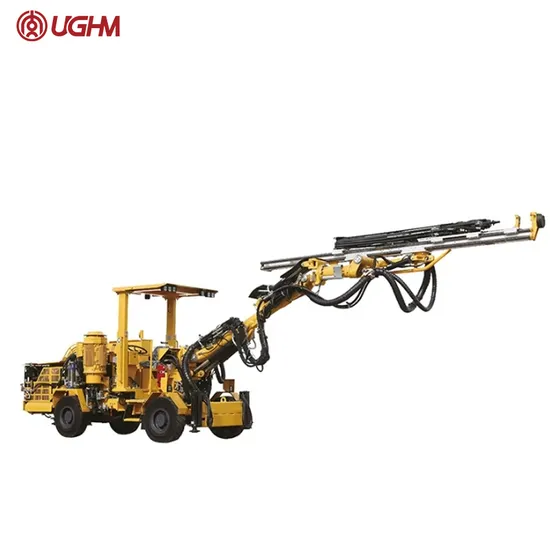

Ubd135 Roof Bolting 2 Booms Pneumatic Mining Mini Underground Geotechnical RC Hydraulic Anchor Horizontal Directional Borehole Rock Blasting Drill Drilling Rig

Product Description

If you are interested in us, you can click on CHAT to get more information about our productsProduct Description
1.Product introduction:
1,Rock drill truck tunnel positioning function
2, rock drill truck 3D tunnel scanning function
3,Design tunnel drilling and blasting hole layout, on-site adjustment of the layout of the map function
4, with manual, semi-automatic and fully automatic drilling construction functions
5, drilling can be generated after the completion of drilling geological reports
6, rock drilling data storage and transmission
7, Anchor construction and over-excursion geological detection function
8,With drilling and blasting charging and prying function.
9,Automatic pole changing function of intermediate arm
10, Trolley fault diagnosis alarm function
11, rock drill dolly traveling image display, auxiliary driving function
12,Locking function of the whole machine
Technical Specification

Title	Weight of the machine	Maximum working area,	Drilling diameter, (mm)	Drilling depth, mm	Impact force during
	(t)				drilling, kW
UDD124	10	5000*5000	45-102	28300/3440	18.8/18
UDD124S	10	5025*5000	45-102	2830/3440	18.8/18
UDD119P	8	4900*5100	38-64	2200/2500	18.8/18/14
UDD135	14	6600*6630	45-102/33-64	3400/4000	18.8/18
UDD145ED	13.6	13200*9400	45-89	3400+2800(6200)	18
UDD138B	13.5	6950*6550	33-64	3400/4000	18
UDD142I	14.5	7600*6900	33-64	3400/4000	18
UDD252	22	9052*6775	45-10/33-64	3400/4000	18.8/18
UDD138L	12.7	8129*6049	45-64	4000/3440	18.8/18/14
UPD120	10	4500*4500	64-76	20000	18
UPD240C	15.5	7500*5000	64-102	35000/4100	24
UPD241	17.5	7500*5000	64-102	35000/41000	22/24
UBD125	11.5	6550*5850	32-51	1630/1970/2120	8
UBD125	14	8800*7100	32-51	1970/2120/2320/2600	8
URB5000	20	4000*4000	311-5000	60METPOB	365

Usage	Underground
Dimension(L*W*H)	14400*2400*2400mm
Weight	24800KG
Warranty of core components	1 Year
Core Components	Motor, Pressure vessel, Pump, PLC, Other, Gear, Bearing, Engine, Gearbox
Drilling Depth	Max.3960mm
Product name	TZ2A Tunnel Two-Boom Drill Jambo Rock Bolt Blast Hole Drilling Rig
Maximum operation cover area	72m²
Maximum operation height	7514mm
Maximum operation width	12995mm
Drill boom extended length	1250mm
Drill hole depth	3960mm
Impact power of gadder	18.8kW
Diameter for dill hole	43-102mm
Engine power	103kW
Maximum traveling speed	13km/h
Propeller tit angle	360°
Drill boom lifting angle	69/-30°
Tit angle for propeller	±45°
Impact frequency of gadder	40-50Hz
Water flushing pressure	10-15bar
Gas lubrication pressure	2-4bar
Maximum gradability	14°
Swing torque of gadder	780N.m

Application
Chongqing Ug Heavy Machinery Co., Ltd. mainly provides total drilling solutions and serves open pit, engineering tunnel and underground mine drilling industries, helping you solve drilling problems efficiently and cost-effectively. We mainly provide jumbo drilling, DTH drilling rig, Drifter, drilling bits, strong after-sales service system and perfect supply chain, UGHM will be your reliable partner.
Certifications
We have passed all kinds of international professional certifications and are listed as a national professional production enterprise. The company has an experienced and innovative workforce consisting of 70 employees, 20 specialized technicians and 5 engineers. It also has comprehensive inspection and monitoring methods and quality assurance systems. Since the establishment of our company, we have always adhered to the principle of "Quality First, Sincerity First".
Our Advantages
Our products are sold to many countries overseas. Distributed in 20 countries in Europe, Africa and Asia. Our rock drilling trucks are traveling in the mines of various countries to work continuously. We cooperate deeply with international famous brands and make progress together!
FAQ
1. What certificates do you have?
ISO9001, ISO45001, ISO4001 and other quality system certificates.
We have the national certification of China Honest Enterprise
2. Can you customize and design according to customer requirements?
UGHM will try our best to meet the special requirements of various customers.
However, all customizations and modifications should be carried out safely and scientifically.
Colors can be drawn according to customer's needs.
3. What is the warranty period of your products?
Usually 1 year or 2000 working hours, subject to agreement. For detailed information, you need to check the UGHM warranty policy for each model.
4. Delivery time
Standard configuration products are always in stock.
Other brands are subject to agreed upon lead times.
The production lead time for customized products is 30 days.

---
