Full Set Cement Sand Gravel Kerbstone Brick Making Machine in Philippine

Product Description

Dongyue brand concrete block machine(Chinese famous brand)

QT40-1 block machine working video link:
http://dymachine.en.made-in-china.com

QT4-24 block machine working video link:

https://dymachine.en.made-in-china.com

QT4-26 block machine working video link:

http://dymachine.en.made-in-china.com

Dongyue Machinery Group Introduction Video on Yutube:

http://dymachine.en.made-in-china.com

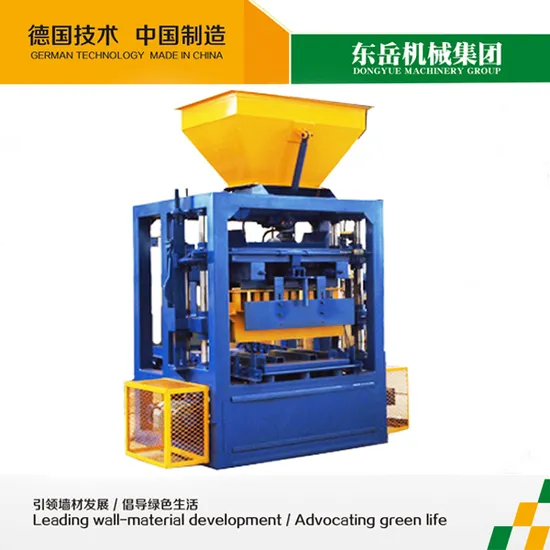

1.Introduction QT4-24 Semi automatic concrete brick hollow solid block molding machine most hot sell model!
Donyue QT4-24 semi auto model is a small but really high efficient machine, its model number: "QT4-24" is from its specification, "QT" is its forming method, the bricks are molded onto a pallets which is necessary and on the vibration table, the bricks are formed while the vibration table is working, driven by two high power vibration motors, and one vibrator one the upper mold, the vibration force is up to 35.5KN. "4"in ''QT4-24" means it can make 4 pieces of standard size hollow blocks per mold.(400*200*200mm or 390*190*190mm). And "24" means its molding cycle is 24 seconds, this machine can make 4 hollow blocks every 24 seconds, it's pretty high efficient, because the molding cycle of automatic models are 15 seconds. Also, the cost to begin a small brick factory is low because this machine low price. So if you are thinking about this business, just don't hesitate to act, this machine can make all the block types, hollow block, solid brick, paver brick, curbstone..., these bricks can be used in building construction, walls, road paving, river and dam embankments and etc, very big sales markets. With couples of molds, you can maker all these bricks in your brick factory!
QT4-24 is mechanical vibration type baking-free brick machine(down-vibration box with 2 sets 5.5 KW motor, up-vibration motor with 1 set 3KW vibration motor),push-pull mould by electric.dosing material at a time,easily operated,save labour with small workforce.Regular production use 5 workers,one worker control mixer,one operate the host machine,two take charge of transporting formed blocks.

2. Production capacity

QT4-26 Theoretical Production capacity
Size(LxWxH)	Pcs/Mould	Pcs/ Hr	Pcs/ 8 Hr
400X100X200	7	630-840	5040-6720
400X150X200	5	450-600	3600-4800
400X200X200	4	360-450	2880-3600
400X250X200	3	270-360	2160-2880
200X200X200	6	540-720	4320-5760

3.Main technical parameters

Dimension of host machine	2060×1730×1850mm	Host machine power	13.4KW
Voltage	380V	Vibration force	35.5KN
Moulding period	30S	Capacity	22KW
The size of the pallet	850×550×25mm	Mixer model	JD350
Weight of the machine	3T

4.Pictures
Dongyue Enterprise Profile:

Dongyue Machinery Group Co., Ltd. is located in the jumping*off point of Linyi City.

We have brought in advanced technologies from abroad and developed series of brick machines with
practicable patents by ourselves, following up the up*to*date trends abroad.

Since our establishment, we have regarded quality as the most important and eternal
principle in production. Our products have passed ISO9001:2000 certification and the
inspection by National Construction Machinery Products Quality Inspection Center.

The new series of automatic brick forming machine features high efficiency, advanced
Technology , stable capability and wide applicability. Last year we are the top selling among
thousands of China manufactures. and we are the only company which has been admitted
as China well*know brandmark by China Government.

Apart from the above, we already have office in India, Vietnam,Indonesia.
Our brick making machine enjoys many advantages including: more reasonable structure,
more compact appearance, smoother operating, higher efficiency and easiness to operate
and maintain. We would like to exchange the optimum profit for you with the lowest cost
and the best after-sale service.

---
