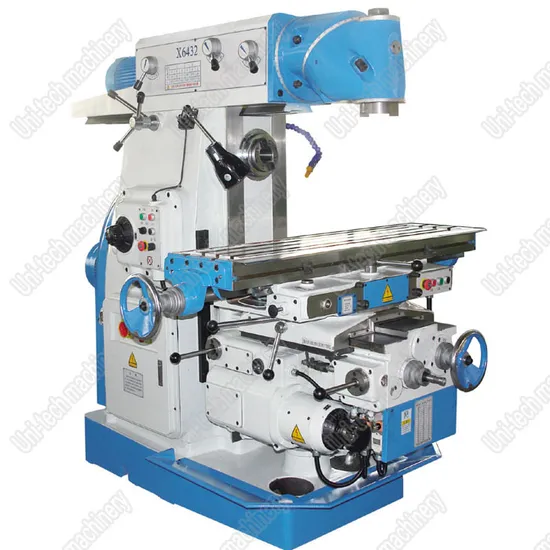

Knee-Type Milling Machine/Universal Milling Machine (X6432)

Product Description

Knee-type milling machine/Universal milling machine (X6432)
Features:
Ball screws can be ordered instead of standard lead screws at special request.
Vertical and Horizontal spindle hole taper both are ISO50.
The milling head can swivel at 360°.
Rotary table can be ordered at special request.
Worktable feed on X,Y,Z by manual or automatic.
Big worktable load.
CE standard can be chose.
Schneider electric can be ordered at special request.
More stronger type.

Specification	Unit	X6432	X6432B
Table size	mm	320x1325	320x1600
Max Longitudinal travel(manual/auto)	mm	700/680	900/880
Max transverse travel(manual/auto)	mm	255/240
Max vertical travel(manual/auto)	mm	320/300
Max rotary angle	--	±45°
T Slots(N*W*D)	--	3/18/70
Spindle hole taper	mm	7:24 ISO50
Distance of Horizontal spindle axis to table surface	mm	30~350
Distance of table center to vertical spindle	mm	190~510
Distance of table center to vertical ways of column	mm	470~215
Distance of table center ram	mm	155
Spindle speed step	--	12(V) 18(H)
Spindle speed range	r.p.m	60-1750(V) 30-1500(H)
Table feed steps	--	18
Table feed range Longitudinal	mm/min	23.5~1180
Table feed range cross	mm/min	23.5~1180
Table feed range vertical	mm/min	8~394
Table rapid moving speed Longitudinal/sross	mm/min	2300
Table rapid moving speed vertical	mm/min	770
Power of spindle	Kw	4(V) 7.5(H)
Spindle of motor range	r.p.m	1440
Feed motor	Kw	1.5
Feed of motor range	r.p.m	1440
Overall size (L x W x H)	mm	2900	3000
Net Weight	kg	2294x1770x1780	2294x2050x1780

Standard accessories:NameSpecification Model Qty

	-	1set
ISO50 Cutter arbor Cutter arbor	φ40	1 piece
Horizontal arbor assembly	Φ22	1 piece
Horizontal arbor assembly	Φ27	1 piece
Horizontal arbor assembly	Φ32	1 piece
Oil gun		1 piece
Drawbar	M24x720	1 piece
Double-ended wrench	13x14	1 piece
Double-ended wrench	27x30	1 piece
Double-ended wrench	32x36	1 piece
Inner hexagonal wrench	5	1 piece
Inner hexagonal wrench	8	1 piece
Inner hexagonal wrench	10	1 piece

Optional accessories:Name
Specification Model
Remark

XC Series Vertical milling head	XC622B	7:24 ISO
XC Series Universal milling head	XC624A	MT4
Universal dividing head	125A	Include three-jaw chuck
Universal dividing head	160	Include three-jaw chuck
Swivel table	φ320	Manual
Indexable carbide mill tool	φ63	With shank
Indexable carbide mill tool	φ100	No shank
Indexable carbide mill tool	φ160	No shank
Sizing block	240x120	6 pieces/set
Clamping kit
Milling chucks	15
Machine vice	160
3-Axis DRO

Website: http://uni-techmachinery.en.made-in-china.com/



Our Services
1. Your inquiry and email will be replied within 24hours.
2. If you need to develop products with your own specification, we can help you to work it out.
3. Always be honest, never lie to customer, and never declare anything we don't have.
4. Customer First:,we offer best Quality and Service!
FAQ
1. Payment Method:
30% deposit T/T in advance, rest against the copy of B/L or before delivery.
2. Delivery Time:
one week
3. MOQ:
1 set machine.
If you need machine with your own specification, logo, packing, etc, please negotiate with us.
4. Shipping:
For machine: Usually by sea;
For documents: by international express, eg. DHL,TNT or EMS

---
