Three Axis Automatic Rubber Band Ring Cutter Machine with LCD PLC Control

US$6,000.00-20,000.00 1 Set (MOQ)

Basic Info.

Model NO.
3-Axis
Customized
Customized
Automatic Grade
Automatic
Structure
Vertical
Voltage
220V-660V
Weight
550kg
Type of General Rubber Machinery
Rubber Gasket Cutting Machine
Power
2.3 Kw
Warranty
1 Year
Product Name
Rubber Band Cutting Machine
Structure of Blade
Single or Double Shaft
Transport Package
Standard Wooden Case
Specification
National standards
Trademark
Zhihong
Origin
Qingdao of China
HS Code
8477800000
Production Capacity
30sets/Month

Product Description

Three Axis Automatic Rubber Band Ring Cutter Machine with LCD PLC Control for Rubber Tubes
Usage and feature:
The rubber band/ring cutting machine is used for cutting all kinds of tubular products (rubber and silicone etc) to gasket, ring. The LCD touch screen PLC control all cutting parameters, operation is extremely simple. Machine structure is adopted mechanical action, all electrical components, pneumatic components are international famous brand.
1.Adopt the automatic program control measures of material system, reducing the need to replace the jig to complete before unloading process cumbersome.
2.the cutting machine equipped with imported servo control system, servo motor, imported frequency converter, PLC control, cutting size is precision and reliable.
3.LCD touch-screen control, all the cutting parameters very clear.and the operation is easy.
4.Multi-axis cutter can cut the realization more at the same time,every time greatly improve production efficiency, reduce the cost of production of the factory.
Parameter of Double axis rubber ring cutting machine:
Cutting frequency >120pcs/min
Working speed 0~2000r/min
cutting precision ≤±0.05mm
Cutting diameter ≤Φ110mm
Cutting length ≤200mm or can be customized 400mm long
Cutting thickness ≤10mm
Compressed air consumption 20L/min
Air pressure 0.5MPa~0.8MPa
vacuum degree of work ≤-0.035MPa
Total power 2.3KW
weight ≈550Kg
dimension(L×W×H) 1550mm×940mm×1620mm

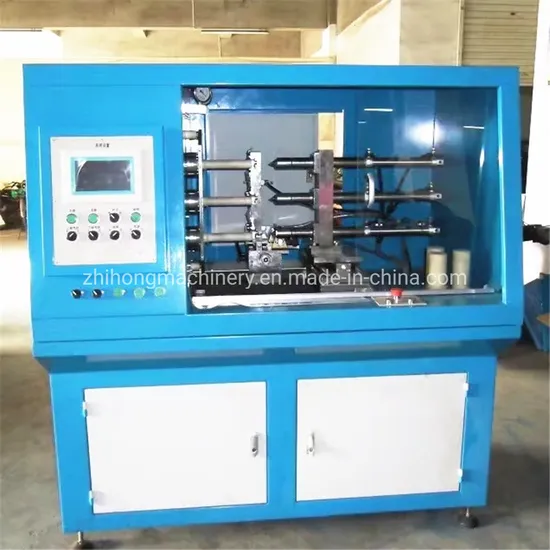

Pictures:
If you are interested in our machines, please kindly contact us.
We will offer our good quotation with best quality for you.
Thanks
Zhang
