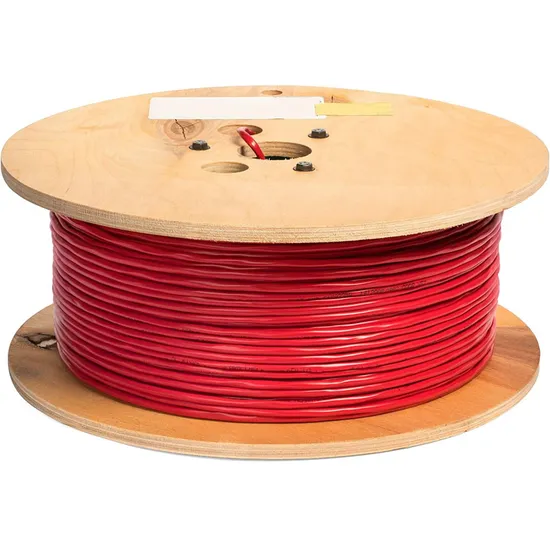

Fire Alarm Cable 2-14 AWG Solid Copper Conductors Polyolefin Insulation Communication Cable Power Cable

Product Description

We founded on 2019-12-18, is located in No.3 Road, Economic Development Zone, Botou City, Cangzhou City, Hebei Province, engaged in wire and cable manufacturing, YJV YJLV BV BVR RV RVS RVV Low smoke halogen free, fireproof cable, fire resistant, flame retardant, wire, control cable manufacturing. The products have passed the national security mandatory certification (3C certification), the production license issued by the state, the adoption of international standard product identification certificate, and obtained the Hebei Province energy saving record certificate, Cangzhou energy saving record certificate. Companies adhering to the "integrity, cooperation, win-win, sharing" business philosophy, "with our efforts to ensure the success of customers" immortal commitment, the introduction of advanced professional production machines and first-class professional and technical personnel, so that the company based on the industry's leading position. The company is actively concerned about the environment and occupational health and safety. The company takes "high starting point, high standard, high requirements" as the production goal, steadily improves the quality management level, and ensures that the product quality reaches the international industry standard.
Conductor material: Solid core copper conductor
Insulation material: Low smoke halogen free outer coating
Rated voltage: 300V/500V
Rated temperature: -40°C~90°C
Standard length: 100 meters
Oxygen-free pure copper
Strong current load capacity, low resistance, good conductivity.Low eccentricity
The skin thickness is uniform, effectively prevent the current breakdown, ensure the safety of electricity.
PVC material
Environmentally friendly PVC material, bright color, clear logo, convenient construction. Insulating flame retardant
High quality PVC insulation layer, made of plastic material, with flexible wear-resistant, flame retardant, oil and waterproof, long service life and other qualities.

Features	Values	Rules
Conductors	annealed red copper cl. 1	CEI EN 60228 (Table 9)
Insulation	cera mifiable silicone rubber
Cores colour	(blue-red) - (yellow-grey) - (green-brown) - (white-black)	DIN VDE 815
Flame protection	glass-fibre tape thickness 0,12 mm
Drain wire	annealed tinned copper
Screen	Al/Pet tape thickness 9/23 µm covering > 110%
Sheath	LSZH compound M1 quality	CEI EN 50363
Sheath colour	red RAL 3000
Fire retardant		CEI EN 60332-3-24
Flame retardant		CEI EN 60332-1-2
Halogen free	(< 0,5 mg/g - 0,5%)	CEI EN 50267-2-1/2 - IEC 60754-1/2
Low smoke emission	(Tras mittance > 60%)	CEI EN 61034-2
Fire resistant	duration 120 min. at temperature of 830 °C. (- 0 ÷ + 40 °C)	CEI EN 50200
Fire resistant	(E30/E60)	DIN VDE 4102-12
Fire resistant	duration 180 min. at temperature of 750 °C FE180	IEC 60331-21 - VDE 472-814
DC resistance	according to	CEI EN 60228 (Table 9)
Rated voltage Uo/U	300/500 V
Max voltage	550 V
Testing voltage	2 kV
Max working temperature	90 °C
Max conductor temperature	180 °C
Short circuit temperature	350 °C
Min. installation temperature	0 °C
Bending radius	Ø x 10

When can I get the price?
We usually quote within 6 hours after we get your inquiry. lf you are very urgent to get the price,please call us or tell us in your e-mail so that we will regard your inquiry priority.
Are you a manufacturer or trading company?
We are a professional manufacturer with many years of experience. We can control your order from the first beginning to the last. Welcome to visit us.
How does your company do regarding Quality Control?
1)All raw material we selected the high quality one.
2) Professional & Skilful workers care every details in handling the producing.
3) Quality Control Department specially responsible for quality checking in each process.
How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.
What is your MOQ?
The MOQ is different, as the different cable type.
What is the package of the cable?
The package is usually wooden drum or steel wooden drum or coil, also according to customer's requirement.
Does your company accept OEM production?
Yes, OEM/ODM is available.

---
