Good Quality Crane Used Electric Hoist Winch with Competitve Price

Product Description

Good Quality Crane Used Electric Hoist Winch with Competitve Price
Product Description

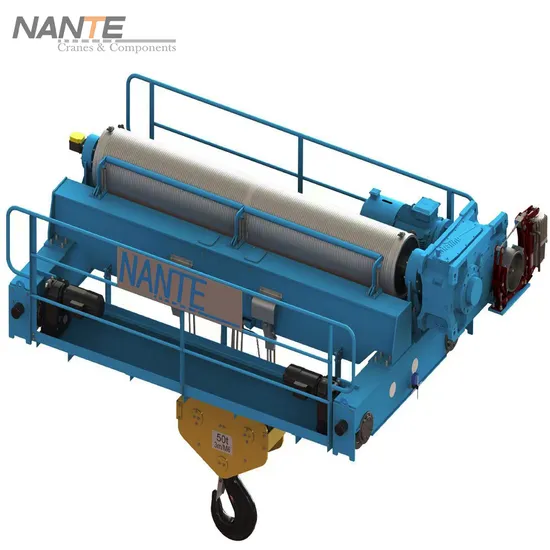

NANTE has more than decades of experience designing and manufacturing hoists for the more extreme applications. The NWB winch hoist is a product of that pedigree and epitomizes the special performance levels we can offer those customers who have the most exacting requirements. The NWB winch hoist is a modular concept which uses pre-engineered components in both standard and customized formats to provide high-performance and high-reliability for a very wide range of demanding applications where one or more of the following are required:
Application range Capacities up to 300 tonnes Duty classifications up to ISO M8/CMAA CLASS F. Superfast hoisting speeds. Super-high lifts. Increased factors of safety. Extremely arduous environments. Additional safety and operating equipment. Special hoist constructions. ----------------------------------------------------------Design and Manufacturing Feature-----------------------------------------------------------------
Design Code:
NANTE's NW Winch follows the design code of FEM, CMAA, ISO EN, BS, GB standard.
Gear Motor:
Worldwide top brand gear motor like SEW, ABM or NORD to make sure the quality, IP55, F insulation class, overheat protection, manual release bar, and equipped with electro-magnetic brake.
Rope Drum:
Made of seamless pipe, CNC machined with precision of concentricity. Advanced processing methods ensure concentricity of the reels. The depth of the rope groove complied with FEM standard. High-strength lock plate are fastened on the drum to hold the wire rope ensure the safety of lifting.
Wire Rope:
Adopt high-performance and high-strength wire rope with zinc surfacing-plating which is effectively prevent corrosion. High breaking force and good flexibility.
Rope Guider:
Use Special steel rope guider which have bearing, light weight, prevent wire rope from shipping and losing to off-groove, and safety first.
Hook Block:
DIN standard T grade hook with safety latch, and the hook is made by
forged high-strength alloy steel. 360 degree rotation and ergonomic design.
Control Panel:
Follow IEC standard, IP55 powder coating high quality enclosure, socket plug-in for easy connection, DIN standard terminal, international brand for the inverter, MCB, Contact and electrical devices on the panel
Safety Protection Functions:
NHA-D Double Girder Hoist crane include a lot of protection functions, like overheat protection for the lifting, load cell type overload limit switch, up&down position limit switch. Phase sequence relay, and other optional functions, like crane monitoring system, LED load displayer.
Anti-corrosive Treatment:
Shoot Blasting follow ISO8501-1 SA2.5 class, roughness follow ISO 8503 G class, clearness follow 8502-3 Level II. Use top brand like Hempel, International, and Jordon's Rich zinc epoxy painting for the prime, middle layer coating. Use polyurethane topcoat for the finished layer coating. All NANTE painters are trained or inspected by NACE or FROSIO level II Inspector.
Dual Brake
Electromagnetic Brake& Hydraulic Thruster Brake
Dual Hydraulic Thruster Brake
Product Parameters

Techncal Data of NWB-EH Open Winch
Capacity (t)	Lifting Height (m)	Lifting Speed (m/min)	Power of Lifting (kW)	Traveling speed (m/min)	Power of Traveling (kW)	Work Duty FEM/ISO	H1/H2 (mm)	C (mm)	Rail Distance S (mm)
10	16	0.65~6.5	11	2~20	0.55×2	2m/M5	632/1155	850	1600
	20								2100
16	16	0.4~4	11	2~20	0.75×2	2m/M5	632/1155	950	2000
	20
20	15	0.4~4	15	2~20	0.75×2	2m/M5	762/1160	1000	2000
	20								2500
25	16	0.4~4	18.5	2~20	1.1×2	2m/M5	825/1160	1150	2000
	20
32	12	0.4~4	22	2~20	1.5×2	2m/M5	885/1160	1150	2000
	18								2800
40	12	0.4~4	30	2~20	1.5×2	2m/M5	960/1193	1250	2000
	18
50	12	0.4~4	37	2~20	2.2×2	2m/M5	1030/1193	1250	2300
	18								3200
63	12	0.4~4	45	2~20	3.0×2	2m/M5	1200/1193	1400	2300
	18
80	12	0.3~3	45	2~20	3.0×2	2m/M5	1250/1176	1500	2700
	18								3800
100	12	0.25~2.5	45	2~20	4.0×2	2m/M5	1315/1176	1600	2800
	18

Application:
We have been supplying cranes and winch to almost every industrial sector for decades and can provide you with an unrivalled source of knowledge and expertise no matter what you are lifting. Every industry has its own unique lifting requirements but with over 50,000 installations globally you can rest assured that our team can design and deliver the right cranes and hoists to meet your needs. Our hoist can be used on Aerospace, Automotive, Construction, Oil and Gas, Hydro, Wind, nuclear power station, industry and manufacturing, steel mill, paper mill, plastic mill, precast concrete, railway, ship and boat, and marine industry.
Company Profile
FAQ
Q1: Are you Manufacturer or Trading Company?
A1:We are an integrated industrial and trade enterprises. We have our own R&D team, factory and marketing department.
Q2: Which standard of your crane and crane components apply to?
A2: Our Crane can design and manufacture base on FEM, CMAA, ISO EN, GB standard.
Q3: How do you ensure your product quality?
A3: All our processes strictly adhere to ISO-9001 procedures, which include Material Traceability, ISO WPQR and welder certificate, Measuring Device Calibration, NDT for the welding, and full assembling and load testing before delivery.
Q4: How can I make payment?
A4: We accept T/T bank transfer, L/C, Paypal.
Q5: How can I assembly the cranes in my factory?
A5: We suggest you to recruit a crane service team in local to install the crane base on our Installation Guideline and User manual. If cannot, we can send engineer to your factory to guide you do the installation with extra charge, and the transportation, accommodation, translator shall be covered by your side also.
Q6: What is the warranty period, and how can I claim warranty If my crane have any issue?
A6: Our warranty period is 12 months after cargo leave China port. If the crane have any issue, our after-sales team and engineer will help you solve the issue by email or Video conference. If the defect is caused by quality issue, we will ship the spare parts to you by air to help you fixed it as soon as possible.
Q7: Do you accept OEM business?
A7: Sure, we do many OEM productions for some famous crane brand and customers around the world.
Q8: What about shipping?
A8: We recommend small batch by the way of air or LCL, but large delivery by the way of container or bulk vessel.
Q9: what about delivery time?
A9: different capacity crane and components have different estimated delivery time, generally speaking, around 4 weeks to 8 weeks.
Q10: What is your company policy if we want to distribute NANTE product in our market?
A10: Firstly, thank you for your interest to promote NANTE brand, we have distributors in 50+ countries, pleaes no hesitate to contact us for the detail discussions, as we have different policies for the different target markets. Surely, you are welcomed to visit our factory and let's talk face to face.

---
