| US$10,000.00-50,000.00 | 1 Piece (MOQ) |

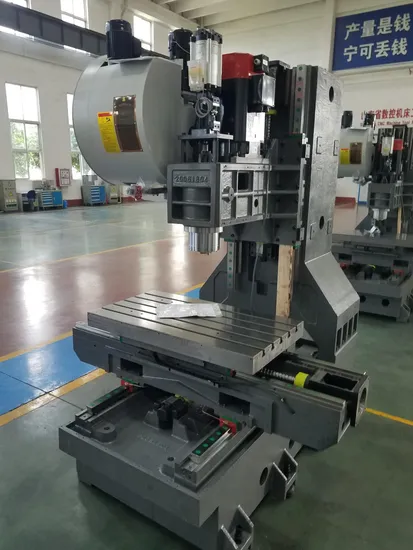

| Model | VMC1100 | ||
| Machining area | |||
| X axis travel | mm | 1100 | |
| Y axis travel | mm | 600 | |
| Z axis travel | mm | 600 | |
| Distance from spindle nose to table surface | mm | 150-750 | |
| Working table | |||
| Table size ( X axis) | mm | 1100 | |
| Table size ( Y axis) | mm | 600 | |
| T slot ( Width×Distance×Number) | 18/115/5 | ||
| Max.table load | kg | 600 | |
| Spindle | |||
| Spindle speed | rpm | 40-6000 | |
| Main motor power | Kw | 7.5 | |
| Spindle tapper | BT40 | ||
| Max. Spindle output torque | Nm | 35.8/70 | |
| FEED SYSTEM | |||
| Rapid feed speed on X | mm/min | 24000 | |
| Rapid feed speed on Y | mm/min | 24000 | |
| Rapid feed speed on Z | mm/min | 18000 | |
| Cutting feed speed | mm/min | 1-10000 | |
| Screw size of X axis (diameter×helical pitch) | mm | 40×12 | |
| Screw size of Y axis (diameter×helical pitch) | mm | 40×12 |
| STANDARD | OPTIONAL |
| Spindle unit 8000rpm | 4-TH AXIS |
| FANUC 0i MF(5) | FANUC function AICC II |
| (X, Y, Z ARE "β"MOTOR) | FANUC manual guide i |
| X,YZ,-AXIS LINEAR guide way | OIL COOLANT |
| 16 Tool holder changer | Spindle unite 10000rpm with OIL COOLANT DEVICE |
| Rigid Tapping function | 4-th axis ROTARY TABLE 250 |
| Hand pulse handwheel | Mechanical power vice |
| Central lubrication | Mechanical double power vice 125 |
| Coolant | Screw chip conveyor |
| Spindle airflow coolant | |
| Full protection | |
| Vibration pad | |
| Interlock door | |
| Work light ,warning light | |
| Operation manual | |
| Rivet | |
| Chip conveyor | |
| Keys | |
| Cable | |
| Wrenches | |
| Tool box |
