IP65 Waterproof Dust-Proof LED Tri-Proof Light for Mine

Product Description

IP65 Waterproof Dust-Proof LED Tri-Proof Light for Mine
1. Application

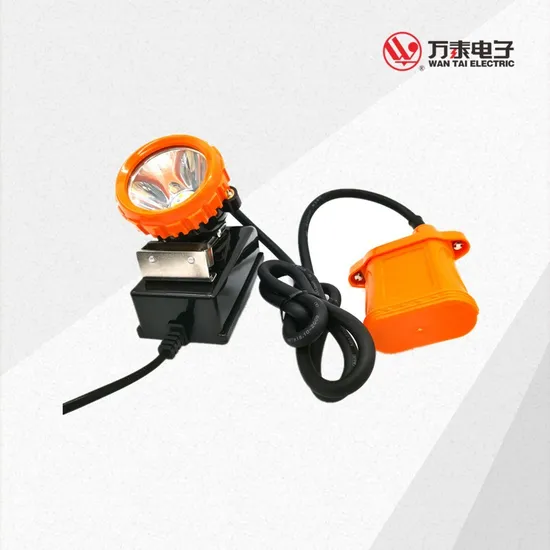

KL6LM(B) Intrinsically Safe Type Miner's Lamp, this product is a portable lighting tool, mainly suitable for underground lighting, but also for tunnels, high-altitude and field operations.
2. Features
Using LED as the main light source, the lamp does not need to replace the light source during the life cycle of the mine lamp. Meanwhile, because of the good heat dissipation performance of metal lamp cup, the light source working temperature is low, long life, safe and reliable.
A new type of charge and discharge protection board can be used to prevent overcharging and overdischarge and effectively improve battery life. When short-circuit occurs, the power supply can be cut off quickly, and the work can be resumed after troubleshooting to ensure safe use.
3. Technical parameters

Parameter items	ATEX Intrinsically safe cap lamp		Normal Intrinsically safe cap lamp
Model	KL2LM(B),KL4LM(B),KL6LM(B)		KL2.5LM(A),KL4LM(A),KL5LM(A),KL6LM(A)
Life time	2 /years		1.5 /years
Explosion-proof mark	Ex I M1 Ex ia op is I Ma		Ex ia I Ma
Encapsulation	Internationally certified, Encapsulated epoxy resin adhesive		Encapsulated Common Silica Gel
Temperature resistance of adhesive	≤200ºC		≤150ºC
Battery	Internationally certified lithium battery		Common lithium battery
Rated capacity	KL2LM(B)	2.5Ah	KL2.5LM(B)	2.5Ah
	KL4LM(B)	4.5Ah	KL4LM(B)	4Ah
			KL5LM(B)	5Ah
	KL6LM(B)	6.6Ah	KL6LM(B)	6Ah
Rated Voltage	3.7V		3.7V
Main light source current	320mA±15mA(LED/Imported LED)		KL2.5LM(B)	140mA ±15mA
			KL(4,5,6)LM(B)	180mA ±15mA
Main light source illumination	≥18000LX		≥5000LX( /Light Cup)
Auxiliary light source current	110mA±15mA		90mA ±15mA
Charging voltage	5V-7V (/Continuous current≤ 900mA)		6V-8V
Protection grade	IP65		IP65
Lighting time	KL2LM(B)	≥15h	KL2.5LM(A)	≥15h
	KL4LM(B)	≥20h	KL4LM(A)	≥20h
			KL5LM(A)	≥25h
	KL6LM(B)	≥30h	KL6LM(A)	≥30h
Charging time	≤8h		≤8h
Battery life	≥600 times(20h/10h)		≥500 times(20h/10h)
Dimension	94×35×105mm		68×30×116mm
Full light weight	0.62 kg		0.55 kg
