Basic Info.
Number of Cylinder
≥Three
Stereoscopic Effect
Stereoscopic Effect
Kind of Light Source
Ordinary Light
Usage
Teaching, Research, Metallographic
Principle of Optics
Optical
Objective
5X, 10X, 40X, 60X
Eyepiece
Wf10X(Field Number:18mm)
Light Source
Epi-Illumination, 6V, 30W Halogen Lamp
Stage
Double Layer Mechanical Stage
Optional2
Plan Achromatic Objective 4X, 10X, 40X, 100X
Optional3
Infinity Plan Achromatic Objective 4X, 10X, 40X, 100X
Optional4
Wide Field Wf16X(11mm)
Transport Package
Foam and Carton
Packaging & Delivery
Package Size
50.00cm * 38.00cm * 50.00cm
Package Gross Weight
17.000kg
Product Description
Product Description

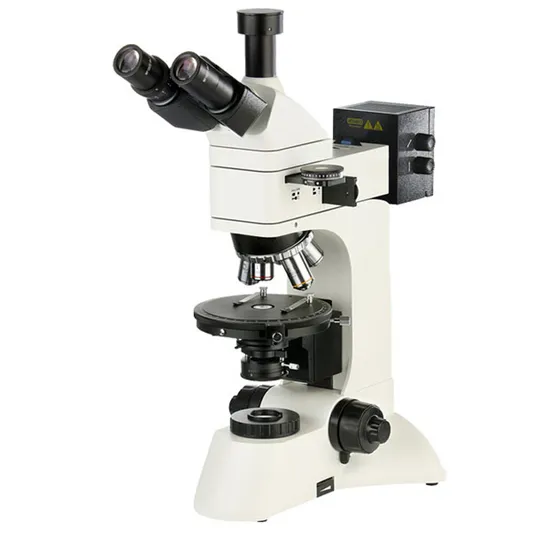

PH-M3203/3220/3230/3230BD series upright metallurgical microscopes are suitable to observe surfaces of opaque object or transparent object.Thet are equipped with excellent UIS optical system and modularization function design so that provited excellent optical quilatity and operation performance,update system expediently and provided observation in refelected or transmitted and mixed illumination,polarizing observation ,dark field observation.These instruments have beautiful sculpt,convenient control and clear image.They are the ideal instruments in research work in biology,metallography,mineralogy,precision engineering,electronics,etc.
Product Parameters
Eyepiece | WF10X(field number:φ22mm) |
Infinity plan achromatic objective | PH-M3203/3220/3230(Equipped with bright field objectives) | PL L5X/0.12 Working distance:26.1mm |
PL L10X/0.25Working distance:20.2mm |
PL L40X/0.60 Working distance:3.98mm |
PL L60X/0.70 Working distance:3.18mm |
PH-M3230BD(Equipped with bright & dark field objectives) | PL L5X/0.12 BD Working distance:9.7mm |
PL L10X/0.25 BD Working distance:9.3mm |
PL L20X/0.40 BD Working distance:7.2mm |
PL L40X/0.60 BD Working distance:3.0mm |
Eyepiecea tube | Trinocular inclined 30°,can be shot in 100% light flux. |
Epi-illumination system | PH-M3203/3220/3230 | 6V 30W,halogen lamp and adjutable brightness. |
PH-M3230BD | 12V 50W,halogen lamp and adjustable brightness. |
PH-M3203/3230/3230BD | euipped with Y.B.G filters and ground glass. |
PH-M3220 | euipped with Y.B.G filters. |
Integrated field diaphragm,aperture diaphragm and filter switching device.Push-pull type analyzer and polarizer. |
Focus system | Coaxial coarse/fine focus system,with tension adjustable and limit stopper,minimum division of fine focusing:2um. |
Nosepiece | Quintuple(Backward ball bearing inner locating) |
Stage | Double layer mechanical stage,overall size:210mmX140mm,moving range:75mmX50mm. |
Transmitted illumination system | Abbe condenser N.A.=1.25 Rack & pinion adjustable. |
Collector for halogen lamp illumination and integrated field diaphragm |
PH-M3230/3230BD | euipped with B filter and ground glass. |
PH-M3220 | euipped with B.G filters and ground glass. |
PH-M3220/3230 | 6V 30W,halogen lamp and adjutable brightness. |
PH-M3230BD | 12V 50W,halogen lamp and adjustable brightness. |
Optional Accessory | Eyepiece | Dividing eyepiece(φ22mm) |
Objective PH-M3203/3220/3230 | 20X,50X,80X,100X(Dry),Bright field objective |
Objective PH-M3230BD | 50X,60X,80X,100X bright & dark field objective |
CCD adapter | 0.5X,1X,0.5X(With dividing) |
Camera | USB output:1.3M/2.0M/3.0M pixel |
Video output:380/520 TV Line |
Digital camera adapter | Canon(EF) Nikon(F) |
