Wholesale Price Soybean Harvester Machine Wheat Combine Harvester Price

Product Description

Chickpea Harvester Description
This Chickpea combine harvester has the characteristics of high harvesting quality and fast speed. It is currently the most professional, highest quality, and most efficient chickpea combine harvester in China.This chickpea combine harvester also can harvest wheat,soybean.
Chickpea Harvester Features
1.Chassis design:Beans generally grow in dry land, and some chickpeas also grow on slopes. This legume harvester is specially developed for the geographical environment of beans in dry land and slopes, with a low ground clearance of only 220mm; The wider track distance reaches 1450mm. The advantage is that the center of gravity of the whole machine is low, driving is safe, and it is not easy to roll over. According to statistics, under the same conditions, for every 20mm decrease in the center of gravity of the harvester, the incidence of rollover accidents decreases by 6%. Safety is the primary consideration in harvester design.
2.Work efficiency:The 2400mm wide cutting platform increases the harvesting efficiency of the whole machine, reaching 0.6-0.8 hectares/hour. It is matched with a 2200mm long extended threshing drum and vibrating screen to meet the threshing and cleaning processing capacity under high-speed harvesting conditions. The widened cutting platform, solid chassis, and extended threshing system result in a total weight of 4.1 tons.
3.Bean harvest indicators:In order to reduce the impurity rate, damage rate, soil contamination, fruit staining and other issues of beans, a large-diameter steel bar concave plate sieve and a dedicated bean threshing drum are used to reduce the damage rate during the bean threshing process; The use of pneumatic grain transportation has replaced the spiral agitator transportation method on rice wheat combine harvesters, reducing the damage rate and staining situation during fruit transportation. The beans have good appearance and high selling price. Beans used as commodities are three times more expensive than beans used as feed. The secondary threshing of short straw adopts an innovative top threshing drum for secondary threshing, instead of the rice thresher used in rice machines. Reduced the damage rate of secondary threshing. Both the cutting table and the bottom of the conveying tank are equipped with holes for dust leakage, reducing the contamination of bean soil. The grain warehouse adopts a dumping unloading method to reduce the damage rate during the unloading process.
4.Machines are versatile:This bean harvester can harvest most beans except for chickpeas, such as mung beans, red beans, peas, and soybeans. In order to improve the utilization efficiency of the harvester throughout the year, rice and wheat can still be harvested after replacing some parts.
5.Straw treatment:Bean straw is a good protein feed.You can pay to select straw collectors to collect and dispose of straw, improving economic efficiency.
Suitable Crops Pictures
Suitable for Chickpea,Soybean and Wheat.

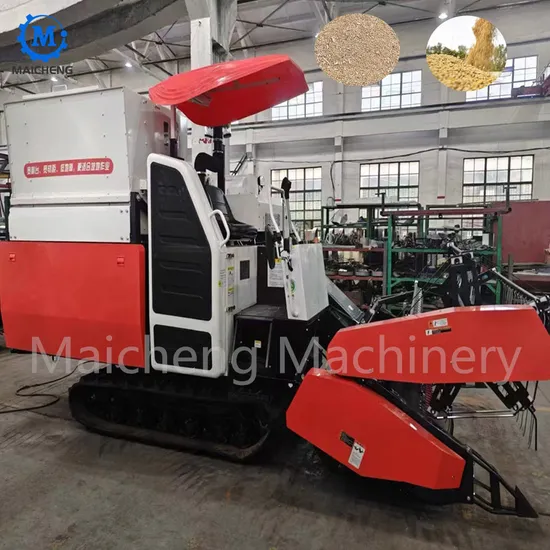

Final Product Pictures
Chickpea Harvester Parameters

Name	Crawler self-propelled fully fed chickpea combine harvester
Structural style	Crawler self-propelled type
Feed rate	3kg/s
Reaper width	2400mm
Cutting height	≤50mm
Supporting engine brand and model	4D35R41S1004
Supporting engine structure type	Vertical, inline, water-cooled, four stroke
Number of matching engine cylinders	4pcs
Calibration power of supporting engine	88.9kw
Matching engine calibration speed	2600r/min
Ground clearance	220mm
Working speed	0.9~7.8km/h
Fuel consumption per unit area	11~30kg/hm2
Pulling wheel diameter	Φ900mm
Number of reel plates	5pcs
Main threshing drum type	Longitudinal axial flow rod tooth type
Main threshing drum size	Φ620*2200mm
Type of cleaning device	Vibration type+wind selection
Type of transmission mechanism	Hydraulic continuously variable transmission (HST)+mechanical gearbox
Drive bridge type (front, rear)	Hydrostatic Drive
Unloading method	Mechanical automatic unloading of grain
Weight	4100kg
Dimension	5600*3000*3000mm

PIctures of Working Site
FAQ
1.Can we visit your factory?
Sure.We are in Zhengzhou,Henan Province,China.For overseas clients can fly to Xinzheng International Airport.We can pick you up in the Airport.Or Zhengzhou East Railway Station. We warmly welcome you come to visit our factory.Online video visiting is also welcome.
2.How can we get the exact price?
Contact us and tell what is your raw material and request capacity,we will recommend suitable machine and price.
3.How do you control your quality?
We have passed CE certification,ISO certification.All of our products are 100% inspected and test before shipment.
4.What is the lead time?
For customized machine,it takes about 15 days after deposit.For stock machine,in 3 days.
we will tell exact time customers before order.
5.How about your after-sale service?
We offer manual instruction and engineer training before loading,after shipment we provide 24hours online support,video technical support,field installation assist,remote debugging.
If clients need,we could provide engineers for on site service until the customer can independently running the machines.
6.What is the warranty period for your machine?
12 months warranty.Long term offer spare parts at cost price.

---
