Automatic High Speed Window Patching Machine for Industry

Product Description

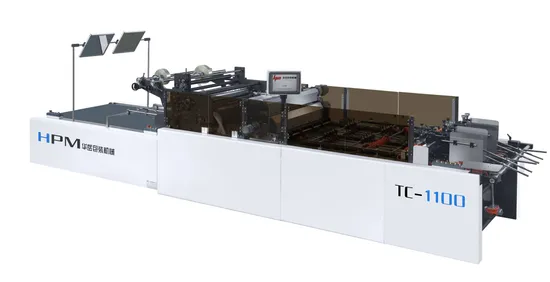

Window Patching Machine WPM680/1100



The new WPM 680/1100 from Huayue is designed to apply window from roll as well as well as a cut film by pick and place in one working step. It's designed to do roll film window pasting and corner window pasting by pick&place device two jobs at one time .
The high quality used material allows a constant gentle transport of the material by the machine and to get a high output and less waste. Many control and setup functions guaranty a perfect result, even by running with high speed. In the design of the machine was worked specifically on the user-friendliness.
The machine is equipped with a feeder, chain register, vacuum conveyor, shingling belt, facon glue unit, hot glue unit, pick&place film cut cylinder from roll. All functions and set ups are displayed on a wide touch screen.The machine can be designed according to the special product demand of customers.


WPM680 Window Patching Machine Technical Index

No.	Technical Index	Technical Parameter
1	Max. paste carton size	650mm×680mm
2	Min. paste carton size	120mm×105mm
3	Max. thickness paste carton	E Corrugated≥6mm
		Carton 200~500g/m2
4	Length of the film (membrane)	50 mm~250 mm;
5	Width of the film(membrane)	40 mm~500 mm;
	Length of the film (flat)	50 mm~300 mm;
	Width of the film (flat)	40 mm~500 mm;
6	Thickness of the film(membrane)	0.25 mm~0.6 mm
	Thickness of the film(flat)	0.03 mm~0.20mm
7	Max.Production speed(small size)	≥5000pc/Hour
	Machine Length	7500 mm
	Machine Width	1300 mm
	Machine Height	1500 mm
	Machine Net Weight	4000kg

WPM1100Window Patching Machine Technical Index

No.	Technical Index	Technical Parameter
1	Max. paste carton size	900mm×1100mm
2	Min. paste carton size	120mm×105mm
3	Max. thickness paste carton	E Corrugated≥6mm
		Carton 200~500g/m2
4	Length of the film (membrane)	50 mm~480 mm;
5	Width of the film(membrane)	50 mm~880 mm;
	Length of the film (flat)	50 mm~520 mm;
	Width of the film (flat)	40 mm~500 mm;
6	Thickness of the film(membrane)	0.25 mm~0.6 mm
	Thickness of the film(flat)	0.03 mm~0.20mm
7	Max.Production speed(small size)	≥5000pc/Hour
	Machine Length	7900 mm
	Machine Width	2100 mm
	Machine Height	2000 mm
	Machine Net Weight	6000kg

---
