Automated W12 Sheet Metal CNC Bending Rolls 4 Roller Plate Rolling Machine

Product Description

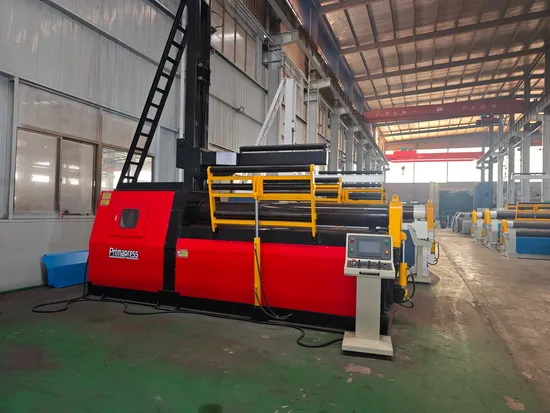

W12 4 rollers Hydraulic Plate Rolling machine
Technicals sheets:

MODEL	W12-6*2000
Maximum width of bending plate	2000mm
Maximum thickness of bending plate	12mm
Maximum working length of roller	2100mm
Diameter of upper roller	Ф330 mm
Diameter of bottom roller	Ф300mm
Diameter of side roller	Ф240mm
Pre-bending thickness max	4mm
Yield strength of plate	245 MPA
Main motor power	11kw
Voltage	As customers' required
Painting	Colors(according to the customer'requirement): Machine body: Balance device: Painting thickness: 200 Micron min
Remark: please check the above information to see if our technical parameters meet all your requirements to avoid possible misunderstanding.

1.The Feature of Hydraulic Plate Rolling machine 1. The machine widely used in petroleum, chemical industry, cement, boiler, shipbuilding, aviation, water conservancy, power transmission towers and other machinery and equipment. Its working principle is rotating bending deformation. For the upper roller can be moved no matter up and down, but also horizontally, so no need additional press or equipment, can realize pre-bending, bending, as well as correction of the workpiece.
The whole structure of Hydraulic Plate rolling machine : 1.Totally European design,streamlined looking,frames of our machines are fabricated, welded steel (ST-52). Roll shafts, materials and bearings used in production are European quality. Also the torque limit of the machines is very high. NC playback and NC graphic control systems are available as optional accessory.
2.The main structure of the equipment includes upper roller, lower roller and horizontal movement mechanism, supporting mechanism,main drive mechanism,downturn system, left and right machine frame, chassis and balance mechanism, hydraulic and electrical control systems.
3.The model MH has both the upper and the lower roll powered with hydraulic motor and planetary gear box.
3.The Feature of Hydraulic Plate Rolling machine :
1. High precision pre-bending, freely setup the width of plate. Upper roller presses the plate end for pre-bending.
2. Upper roller likes drum with collaboration of carrier roller permit continual bending of any thickness of plate.
3. Safe work, fixed two down roller, upper roller does horizontal and vertical movement, and the plate don't move during upper roller moving.
4. Unitary structure, convenient to move the whole machine as machine has a hardy under pan. No need to anchor bolt.
5. Different use has different control way, like top numerical control and below numerical control.
6.Through exclusive technology, Krrass can develop cones as easily as competitive machines can develop cylinders. And it eliminates scarring on the surface of shell or roll and also eliminates, in most cases, the need for grinding the lamination (bullnosing) on the minor diameter edge.
4. PLC Touch display NC control system:
1. Special bending aircraft, numerical control.
2. HMI (human machine interface), intelligent operation.
3. Self-compensating, single operate, high efficiency, safe and convenient.
4. Many models for choice, economic numerical control model, TC computerized numerical control.
5.Major parts of the manufacturing process :
1. Working rollers: cast steel ingot (chemical composition analysis): check performance-forging roughcast - forging annealing-UT flaw - roughing (mechanical tests)-heat treatment (hardening and tempering) - UT flaw - semi finishing - finishing - MT.
2. Large forgings: cylinder body, gear, gear shaft forging roughcast - surface inspection - roughing - UT flaw - UT flaw detector heat treatment - finishing semi-finishing - MT.
3. Welding structure: racks, chassis, wheel box
4. Plate into the factory (chemical composition analysis, mechanical properties test) - pretreatment - for sheet metal cutting-welding-seam UT or RT flaw - annealing treatment - roughing-finishing- vibration destressing-hot blasting -finishing
6.Configuration of Hydraulic Plate Rolling machine is follows:
1. Main power:Siemens Electrical made in Germany
2. Main electronic elements: Schneider made in France;
3. Axletree:Double-row self-aligning bearingfrom Germany
4. Main motor: Siemens Electrical made in Germany
5. Programmable logic controller PLC:OMRON products from Japan
6. Hydraulic system: Bosch - Rexroth made inGermany
7. Gear pump: made in China TaiWan ;
8. Work Roller:Material of work roller with 42CrMo Alloy steel.
9. Digital display system:Touch Screen for Delta
10 Transducer:OMRON,Made in Japan

---
