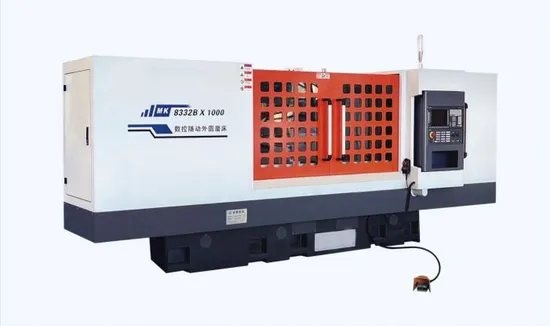

Mk832oh /Mk8332b CNC Camshaft Grinding Machine

US$50,000.00-100,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
MK832OH /MK8332B
Abrasives
Abrasive Belt
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Dia to Be Ground
φ8~φ200
Center Height
135
Headstock Center
4#
Tailstock Center
4#
Transport Package
Woodencase
Origin
China
Production Capacity
1000pic/Year

Product Description

Product Description
Main functions and features
• The machine can be processed,a screw CAM and other special-shaped parts with high efficiency, good accuracy, simple operation, high cost, enabling one person to operate more than one.
• Using Siemens 828D nc system.
• Wheel frame using high-speed hybrid spindle assembly,with high rotation precision,rigidity and other characteristics.
• Using proprietary CNC grinding cams software.
• Configure a separate electrical box,tank and filtration tank.
• Wheel motor adopts AC frequency adjustment device, that can basically achieve constant linear speed grinding
Product Parameters
Description (unit) MK8320H×500 MK8332B×1000
Dia to be ground (mm) φ8~φ200 φ8~φ320
Max.length to be guound (mm) 500 1000
Center height (mm) 135 180
Distance between centers (mm) 500 1000
Headstock center () 4# 5#
Tailstock center () 4# 4#
Max.workpiece weight to be ground (kg) 50 150
Wheel size (mm) φ400×50×φ203 φ600×75×φ305
Wheel peripheral speed (m/s) 45 45
Wheel spindle rotation speed (r/min) 2150 1433
XMin.pulse amount in X-axis (mm) 0.001 0.001
ZMin.pulse amount in Z-axis (mm) 0.001 0.001
Total motor power (kw) 10.825 21.475
Longitudinal servo motor (kw) 1.6(6Nm) 3.3(16Nm)
Traverse servo motor (kw) 1.6(6Nm) 3.3(16Nm)


Detailed Photos
