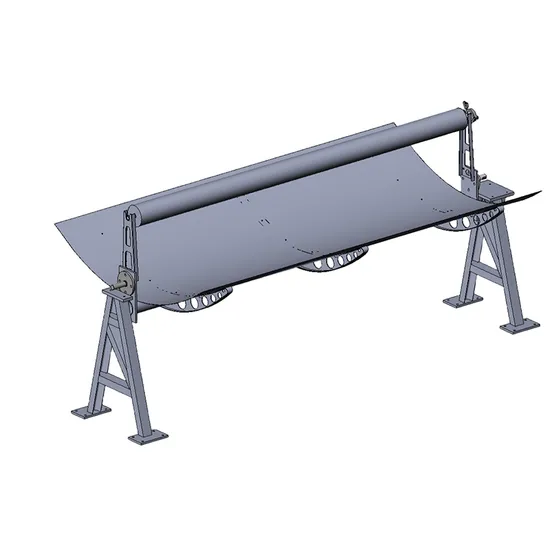

Medium Temperature Mini Concentrating Solar Power Thermal Collector with Solar Tracker for College Education

Product Description

We manufacture Parabolic Troughs for Concentrated Solar Power plants. There are 3 regular models:
Parabolic Trough 1m×2m, Parabolic Trough 2.55m×6m, Parabolic Trough 5.77m×12m.
Parabolic Trough 1m×2m is used for university teaching or laboratory research.
Parabolic Trough 2.55m×6m is used for drying, hot water, room heating, especially generating steam.
Parabolic Trough 5.77m×12m is used for generating electricity.

No.	Parabolic Trough Concentrator	PTC1m*2m	PTC2.55m*6m	PTC5.77m*12m
1	Trough width	1 m	2.55 m	5.77 m
2	Trough length	2 m	6 m	12 m
3	Aperture area	2 sqm	15.3 sqm	69.24 sqm
4	Tracking accuracy	0.1°	0.1°	0.1°
5	Receiver tube (glass-to-metal)	1 piece	3 pieces	3 pieces
6	Receiver tube material	SUS304 stainless steel	SUS304 stainless steel	SS321/316L stainless steel
7	Working temperature	150ºC	300ºC	400ºC
8	Working pressure	40 bar	40 bar	40 bar
9	Driving system	1 set	1 set	1 set
10	Sun-tracking and control system	1 set	1 set	1 set

---
