Sf-280 Single Facer Corrugator Carton Machine Hard Chrome Corrugated Roller

Product Description

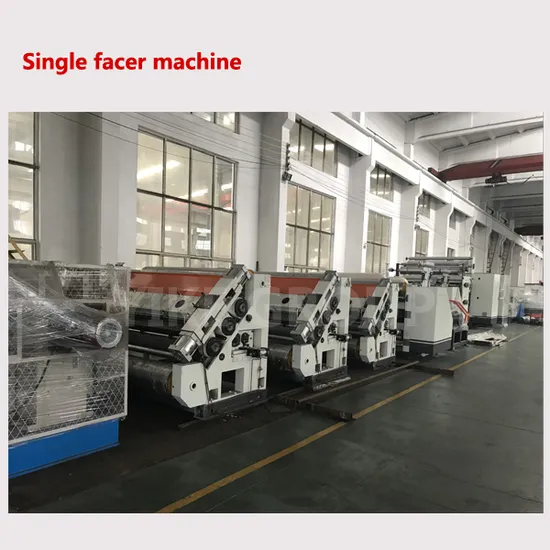

Sales High Precision Single Facer Corrugator Carton Machine
SF-280S fingerless type single facer
Structural features:
★Adopt vacuum suction structure, with high pressure strong blower.Suction with silencer.Gas supply and electrical control cabinet to focus on the same operation cabinet, not less than 1.5 meters away from the host, Fully enclosed full operation side.
★base and wallboard cast iron wall. Wallboard thickness130mm universal Joints.
★corrugated roller material adopt 48CrMoalloy steel, quenched,Laser hardening, Surface finish, main roll of corrugated diameter¢ 280mm, surface hardnessHRC60degree above.The key parts of the tile and pressure roller bearings Wafangdian produce high temperature bearings.
★pressure roller ¢ 284mm,surface grinding and chrome-plated;cylinder control and remove up and down, 45 carbon steel materials, quenching (with cushioning devices)
regular technical parameters:
1,effective width:1600mm 2,operation direction:left or right(determined in accordance with customer plant)
3,design speed:100m/min 4,temperature range:200-260ºC
5,corrugated flute:(UV type or UVV type)
roller diameters parameters:
1,diameter of corrugated roller: ¢280mm 2,diameter of pressure roller: ¢284mm
3,diameter of glue roller: ¢216mm 4,diameter of preheat roller: ¢320mm
powered motor parameters:
1,main drive motor:7.5Kw rated voltage:380V 50Hz Continuous (S1) working standard
2,suction motor:7.5Kw rated voltage:380V 50Hz Continuous (S1) working standard
main purchased parts,materials and place of origin:

Name of main parts	Brands or place of origin	Material and type
Wall and Pedestals	Production own	HT200
Rotary joints and metal hoses	Shan dong teng zhou luguanqiu
Main drive motor	Hebei Hengshui	7.5Kwspeed motor
bearing	HRB,ZWZ,CYC or Zhengjiang wanxiang
Seat belt bearing	Zhengjiang five rings
High pressure air	Shanghai Yingfa
cylinder	Zhengjiang Sanzheng
contacts	Chint or de li xi

---
