Homopolymer Acrylic Filter Bag with PTFE Membrane Lamination

Product Description

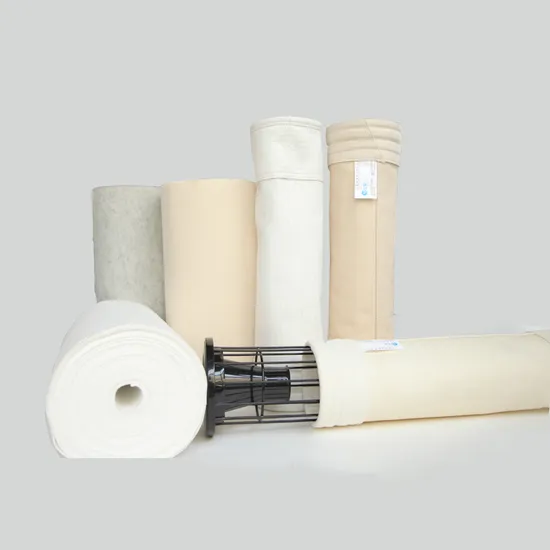

Product Description Bag filters are in general frequently used for dust removal in industrial applications. We make filter bags to fit most styles and types of bag houses and other dust collection systems.
Filter bags come in a wide range of fabrics, coatings, finishes, sizes and configurations.Medias are available in various fabric weights and treatments such as singed, glazed, PTFEmembrane, antistatic, acid resistant and more.
Features of our NOMEX/PTFE filter bags:
1) Excellence in high temperature tolerance as high as 210 ºC
2) Good resistance to alkalis and can also withstand most organic solvents very well
3) Long-term resistance against highly abrasive dusty acr furnaces, high temperature dryers, casting furnaces and so on
4) Various coatings are available
5) High filtration effiency
6) Factory manufacturer with good quality and price
Remarks:
1) The length of dust filter bags: Can be customized.
Usual size: diameter 100mm, 125mm, 130mm, 150mm, 180mm, 250mm ect.2) Process Method: Automatic drawing, cutting, sewing on automatic production line and manual processing.3) Prodction details:Double bottoms and reinforcement to make abrasion resistance. Sewing thread: PTFE thread.4) Inspection: Filter bags will be according to the national standards, industry standards and enterprise standards.5) If your required filter bag is different from our usual one, then please send us your drawing picture and choose material you need, since we also produce the nonstandard filter bag.
6) Professional designer teams to match with your operating condition.
Detailed Photos
Product Parameters

Nomex Needle Felt / Bag
Item				Unit			Parameter
Material				Face:100%Nomex Fiber			Scrim:100%Nomex
Grammas Per Square Meter				g/m2			550±5%
Thickness				mm			2.0±0.2
Air Permeability(200Pa)				L/dm2.min			120~150
		Cont		ºC			204
Temperature Resistance		Peaks					240
		Warp		N/50*200mm			≥800
Minimum Breaking Strength		Weft					≥1000
		Warp		%			≤30
Elongation at Break		Weft					≤50
Surface Design Treatment				Singeing,Calendering,Heat-set
Using Scope				Cement klin head and tail ,Asphalt Mixing

Packaging & Shipping
Different types of filter bag must be individually packaged. In general, it is wrapped in plastic bags for water proof, then put in a carton. Filter bag must be neat and regular packing, with the ring of the filter bag to avoid ring flat compression deformation. For the requirement to keep the shape of filter bag, it must fill padding for filter bag inside. Any other packing ways also be accepted up to you.
Company Profile Anhui Yuanchen Environmental Protection Technology Co., Ltd. was founded in 2005 with a registered capital of 160 million yuan. It has not changed since the beginning of its development. We focus on technology development and application in the field of environmental protection, pioneering and innovating in the fields of industrial flue gas dust removal, denitrification, circular economy and intelligent environmental protection; and we are the only enterprise in China with the qualification of R&D, design and production of high-efficiency dedusting filter materials and SCR denitrification catalyst as well as recycling and reclamation of used catalysts, which has CNAS and CMA testing qualification.
More than 250 skillful workers, German production technology, strict material selection, imported production equipments and managements enable us the ability to produce 10000 square meters filter cloth, 3500 filter bags and 1000 filter cages per day. We get great reputation from our clients due to good quality, reasonable price, professional consult service and huge market, etc. We are not only the supplier for filter bags, we are also the solution supplier for your removal projects, because we have professional Senior Engineers designing to meet the requirements of your industry environment.
Workshop of Filter Fabric and Bags:
Quallity Assurance:
Research Center:
FAQ Q1. What is your terms of payment?
A: T/T will usually be accepted,details could be negotiated.
Q2. What is your terms of delivery?
A: FOB, CFR, CIF, DDU,EXW
Q3. How about your delivery time?
A: Generally, it will take 10to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q5. What is your sample policy?
A: we could offer the sample for free charge but do not pay the cost of freight.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

---
