| US$5.51-9.56 | 500 kg (MOQ) |

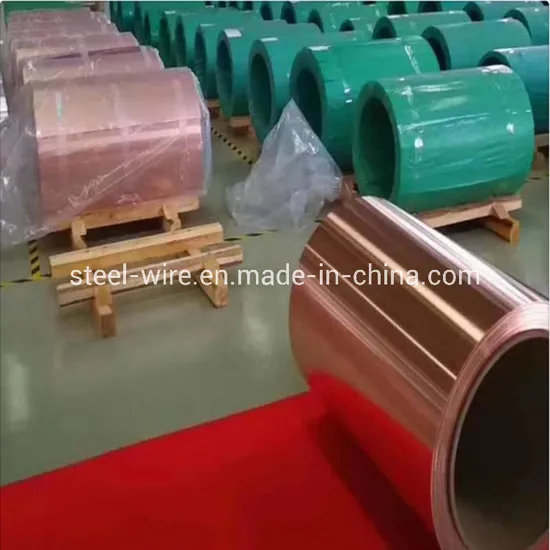

| Item: | stainless steel clad coil nickel silver copper brazing strip |
| Material: | T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910, C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000, C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C65500, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, C72200, etc |
| Hardness: | 1/16 hard,1/8 hard,3/8 hard,1/4 hard,1/2hard,full hard,soft,etc |
| Status | M/Y4/Y2/Y/T |
| Sample | Sample is free and available |
| Delivery Time | Accroding to order quantity |
| Total thickness (mm) | Copper thickness (mm) | Width (mm) | Length (mm) |
| 0.6 | 2×0.02 | Less than 600 | 300-3000 |
| 1.0 | 2×0.05 | ||
| 2.0 | 2×0.10 | ||
| 3.0 | 2×0.15 |
| material | Composition (%) | Density(g/cm3) | Electrical conductivity (m/Ω•mm2) | Tensile strength(Mpa) | Elongation(%) | Composite strength | ||
| Annealing state | Semi-hard state | Annealed state | Semi-hard state | |||||
| Copper clad steel | 5/90/5 | 7.9 | 12.7 | ≥265 | ≥365 | ≥37 | ≥15 | Without stratification after repeated bending test |
| Copper clad steel | 10/80/10 | 8.0 | 17.8 | ≥250 | ≥350 | ≥40 | ≥20 | |
| Brass clad steel | 5/90/5 | 7.9 | 8.5 | ≥270 | ≥370 | ≥35 | ≥15 | |
| Brass clad steel | 10/80/10 | 7.9 | 9.3 | ≥265 | ≥365 | ≥37 | ≥17 | |
| Bronze clad steel | 5/90/5 | 7.9 | 7.8 | ≥270 | ≥370 | ≥35 | ≥15 | |
