Oil Country Pipe Threading Lathe Machine Spindle Bore 320mm Qk1332

US$16,000.00-25,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

QK1332

Movement Method

Contour Control

Control Method

Closed-Loop Control

Numerical Control

CNC/MNC

Performance Classification

High-End CNC Machine Tools

Certification

CE, RoHS, ISO 9001

Condition

New

Spindle Bore

330mm

Swing Over Bed

1000mm

Main Motor(Kw)

22kw

Transport Package

Wood Case

Specification

CE ISO9001 RoHS

Trademark

L&T

Origin

Tengzhou China

HS Code

84592900

Production Capacity

200 PCS/Month

Product Description

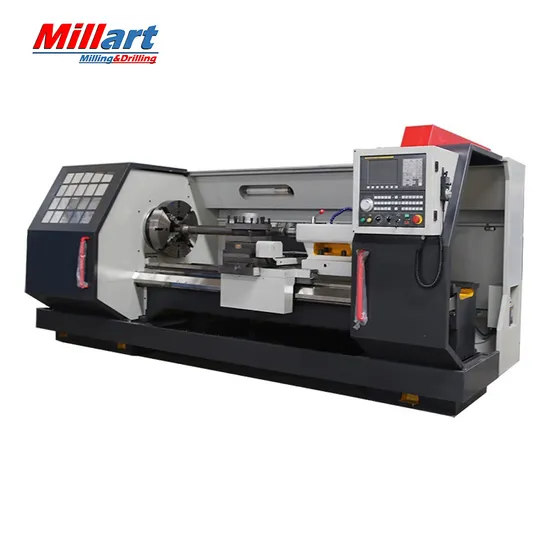

Oil Country Pipe Threading Lathe Machine Spindle Bore 320mm QK1332
Feature :
FANUC 0i TD controller, Manual 4-jaw tube compound chuck, 4-station vertical electric toolpost, Electric tailstock, Centralized automatic lubrication system, Cooling system, Working light, Electrical cabinet with air conditioning, RS232 interface, Movable electronic handwheel (MPG), Tri-color alarming light, General tools, Operation manuals (English edition).
Technical Parameter :

Model	QK1332
Bed width	750mm
Turning diameter over bed (max.)	1000mm
Max. diameter of pipe (manual chuck)	320mm
Turning length (Max.)	1500mm
Spindle bore	330mm
Spindle speed steps	12 steps
Range of spindle speed	16~380 r/min
Tool post	Vertical 4-position
Indexing time(s)	2.4
Main motor (kw)	22kw
