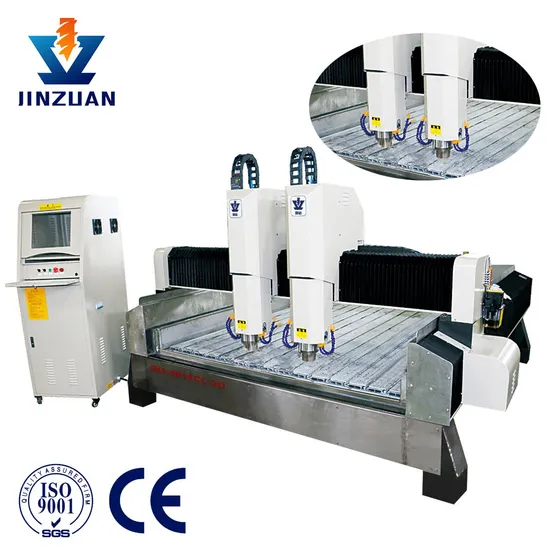

CNC Stone Router Use for Marble Tile Quartz Stone CNC Router for Stone Carving

Product Description

Professional cutting machine, granite, marble cutting effect is good; Mechanical structure optimization design, exquisite carving, exquisite pattern, vivid pattern; The machine appearance is beautiful, and the structure is not deformed, high cutting precision, high efficiency.

Product Parameters

Model No.	JZ-3015-2D
Platform Dimension	3000*1500mm
Working Size	2500*1400mm for 1 piece; 1400*1400mm for 2 pieces
Working Table	Aluminum T-Slot Table with PVC Plate
Linear Guide Rail	X Y Z Axis PMI-30
Spindle Speed	6000-24000rmp/min
Lubrication	Automatic Lubrication
Coolant System	Industrial Coolant System
Operating Voltage	AC220V/50HZ or AC380V/50HZ
Engraving Tool	Φ6/8/10/12/14/16mm
Positioning Accuracy	±0.03mm
Repeatability	±0.02mm
Machine Dimension	4300*2300*2300mm
Weight	3000kg

Product Description

1.Jinzuan cloud serve
All the date including machine process speed, machine problems, production, ect will store in jinZuan Clound Serve, you can see them live in the computer, and know every day/every week/every month production date.
2.Heavy Duty:
Adopt three-layers steel structure, tempering aging treatment, rigid and not easy todeform, and the bearing capacity of the machine can reach more than 4 tons.
3.Y Axis use 2 linear guide rails:
4.Use full servo drive and full servo motor, reducer, z aixs with a brake, high speed high precision, good stability.
5.When running, stopping and faulty ararming, LED lights flash.

6.CNC digital control, power-off memory function, tools continue to carve function.
Functional Characteristics

Detailed Information
Control system:
Support control system customization. NC studio / shanlong / RichAuto DSP control system choosable.
Cooling system
Assemble with water cooling system for machine cooling. Protect the machine being working in a much too hot environment.
Application:
* Bas-reliefs
* Line engraving Cutting, Edge inversing
* Funeral tablets/gravestones, Milestones
* commemorative plates
* Furniture, Fireplace.
* Countertops, Sink hole, grooving, shower trays
* 3D engraving, Roman column, column cap & base

Packaging & Shipping
Packaging technology requirements are mainly rust, moisture, pressure, impact resistance, suitable for storage, transportation and sales
in a non-damaged condition upon arrival at the site
Company Profile

Established in 2014 Quanzhou golden Diamond Machinery Co.,Ltd is a professional technology company focusing on stone CNC processing technology, design, research and development and manufacturing, won a number of national patents. We have brand "Jinzuan " and all the products are with CE certificate and ISO 9001 standard.
Our main product series are stone carving machine,four axis and five axis engraving machine,CNC machining center and three-dimensional engarving machine . Our equipment have been exported to more than 100 countries and regions. If you are interested in our products, please contact me for more details.
Scope of application

Most perfect for engraving on common stone like marble,bluseston and even on hard stone like granite.It is also capable for engraving on glass of thickness more than 5mm.
Suitable to not only stone engraving for tombstone,tile or other related industries,but also can do jobs with skill and ease on common material in woodworking,advertising and metal industry with a wide range and application and high practicality.
Certifications

Certifications

FAQ

1.What will the payment process be?
TT : 30% as deposit, 70% before shipping.
2.How many days will take shipping?
About 30 days for production time.
Shipping date from Xiamen port to your port need to be check.
3.Who will provide the technical support to installing the device?
1).Our engineer could train you for install and software using and design in our factory for free. One week is enough. Our factory
is at Shuitou town, Fujian province.
The biggest stone manufacture area in China. Maybe also the biggest importer &
exporter of marble all over the world.
2).Our engineer could service you 24 hours online by skype, whatsapp, wechat,
facebook message or by cellphone.
3).English manual for machine using and maintaining can be sent.
4).Video for installation and machine using and maintaining can be sent.

---
